Part 1: Making the Remote Connection
Sending Remote Commands

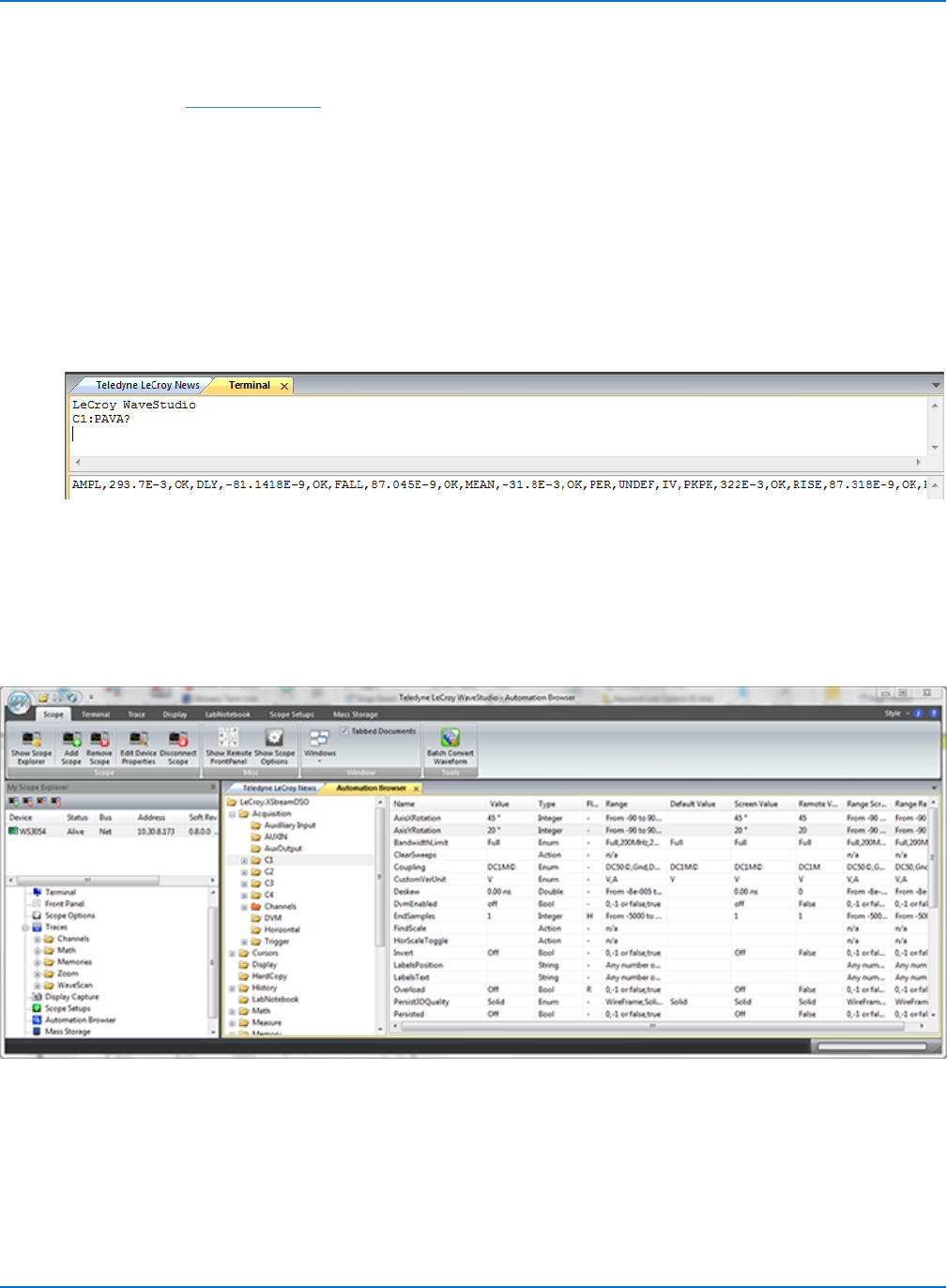

WaveStudio includes a terminal window from which you can execute IEEE 488.2 remote control
commands. Use the VBS command to send Automation commands.
1. Follow the procedure above to connect to the oscilloscope. If the device is already added to My
Scope Explorer, just select it from the list.
2. When the connection is Alive, select Terminal from the list of objects/folders belonging to the
device in My Scope Explorer.
3. At the top of the Terminal window, immediately below the words "LeCroy WaveStudio," enter the
remote command or query and Return.
Replies to queries appear in the bottom section of the Terminal window.
Automation Browser
For WaveSurfer3000 oscilloscopes, which cannot be accessed by XStreamBrowser due to differences in
the Windows operating system that preclude the necessary configuration, WaveStudio includes an
Automation Browser feature that exposes the instrument's COM object hierarchy, the same as does
XStreamBrowser for other oscilloscope models.
