Part 1: Making the Remote Connection

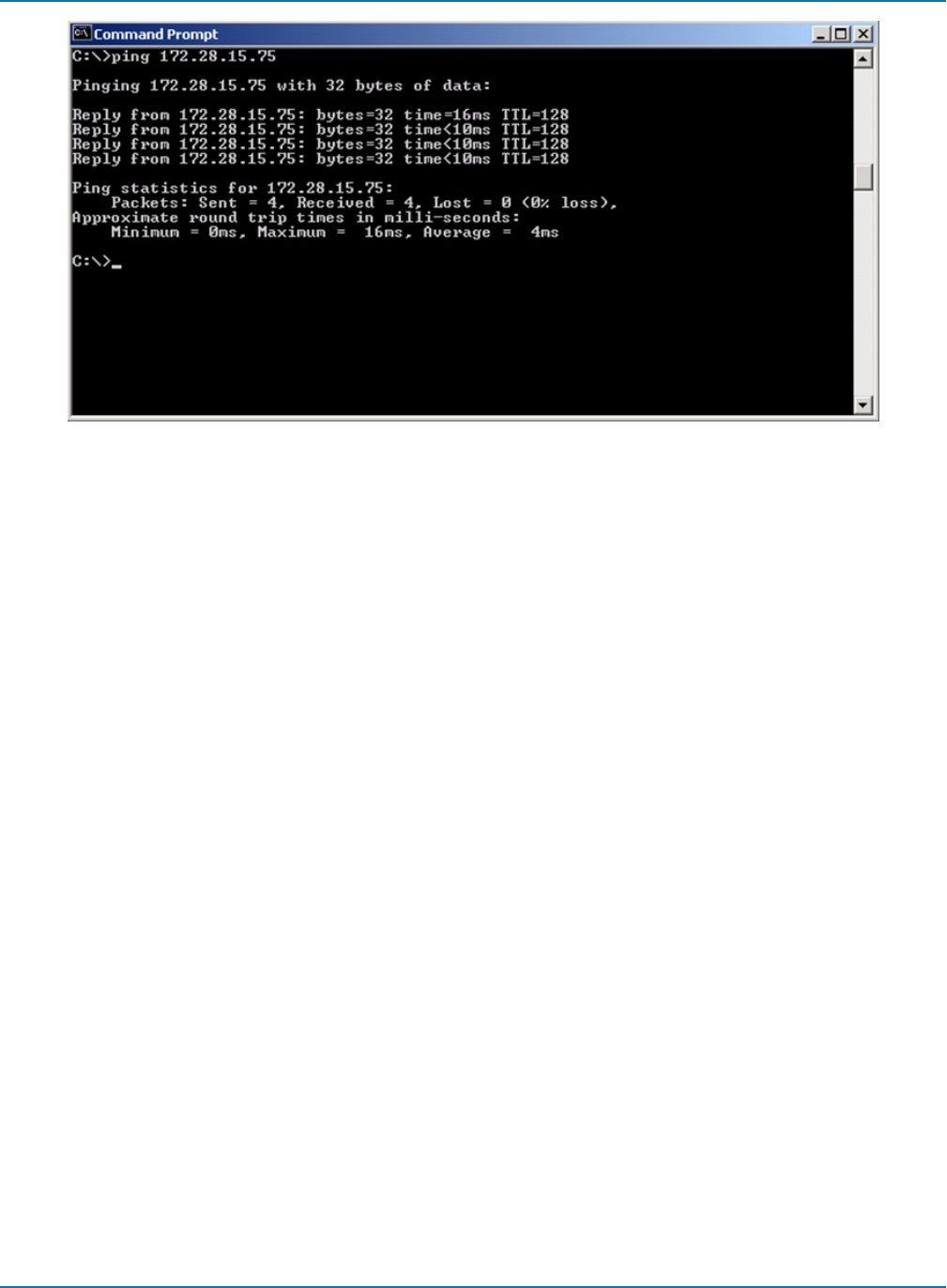

Successful ping showing reply.
Remote Control Assistant
The Remote Control Assistant (RCA) feature of MAUI oscilloscopes maintains a log of remote control
commands received and responses issued (which would include Automation controls sent within the VBS
command), allowing the programmer to receive feedback on errors in his or her source code.
The RCA has several modes of operation: Off, Errors Only, and Full Dialog.
l In Errors Only mode (the default), the RCA will keep a log of any mistakes in the commands
received, and display the error detected.
l In Full Dialog mode, all commands and responses are logged.
This selection can be made by going to Utilities > Utilities Setup > Remote on the oscilloscope.
Touch Show Remote Control Log on the Remote dialog to pop up a window showing the log file. From
there you can clear the log or save it as a text file.
The RCA can also be set by using the remote commands COMM_HELP (CHLP) and
COMM_HELP_LOG (CHL).
