MAUI Oscilloscopes Remote Control and Automation Manual

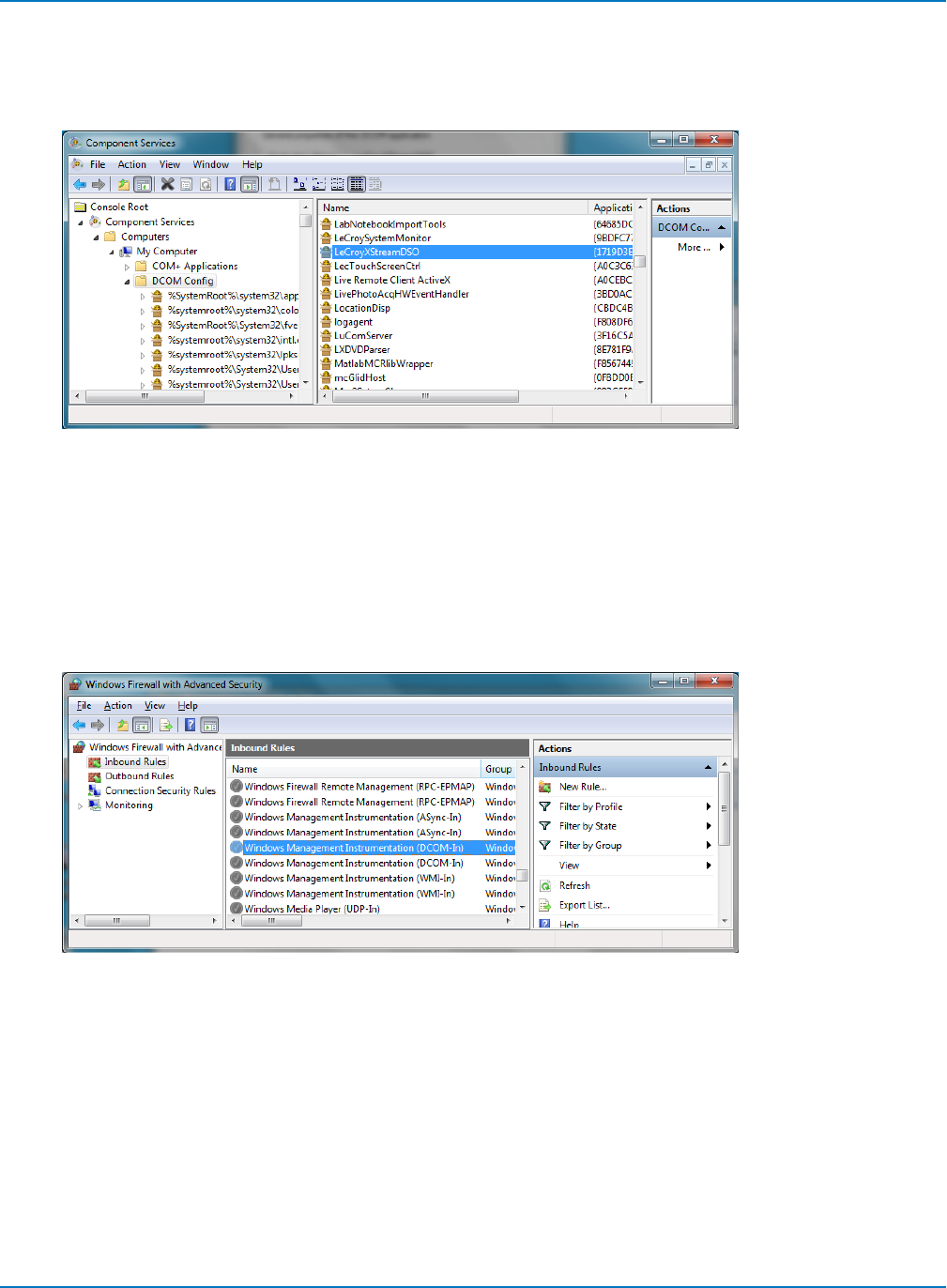

5. On the Component Services window, navigate to Component Services > Computers > My
Computer > DCOM Config and select it.
6. From the list on the right, right-click on LeCroyXStreamDSO and choose Properties.
7. On the Properties dialog, open the Identity tab and select The interactve user. Apply and close
Properties and Component Services.
Open Firewall
1. Go to the Windows Start menu and enter wf.msc in Search programs and files.
2. Open Inbound Rules. For both Inbound rules named Windows Management Instrumentation
(DCOM-In), right-click and choose Enable Rule. Close Windows Firewall dialog.
3. Choose Start > Shutdown > Log Off, then log back in as the new user that was created on the
oscilloscope.
1-16
