MAUI Oscilloscopes Remote Control and Automation Manual
On the Oscilloscope
All Zi series, HDO series, MDAs, WaveRunner 8000s, and HROs use the 64-bit Windows 7 platform.
We recommend connecting a keyboard and mouse to the oscilloscope before beginning this procedure.
Use any USB ports.
Create Users
1. Choose File > Minimize to display the Windows desktop.
2. Windows 7: Go to Start > Control Panel > User Accounts > Manage User Accounts.
Windows 10: Go to Start > Settings > Accounts > Other People.
3. For each user that is to access the oscilloscope remotely, Add a user ("Another work or family user")
with the same user name and password as on the PC. Be sure the user is created as a Local
Administrator.
Configure DCOM Settings
1. Go to the Windows Start menu and enter dcomcnfg.exe in Search programs and files.

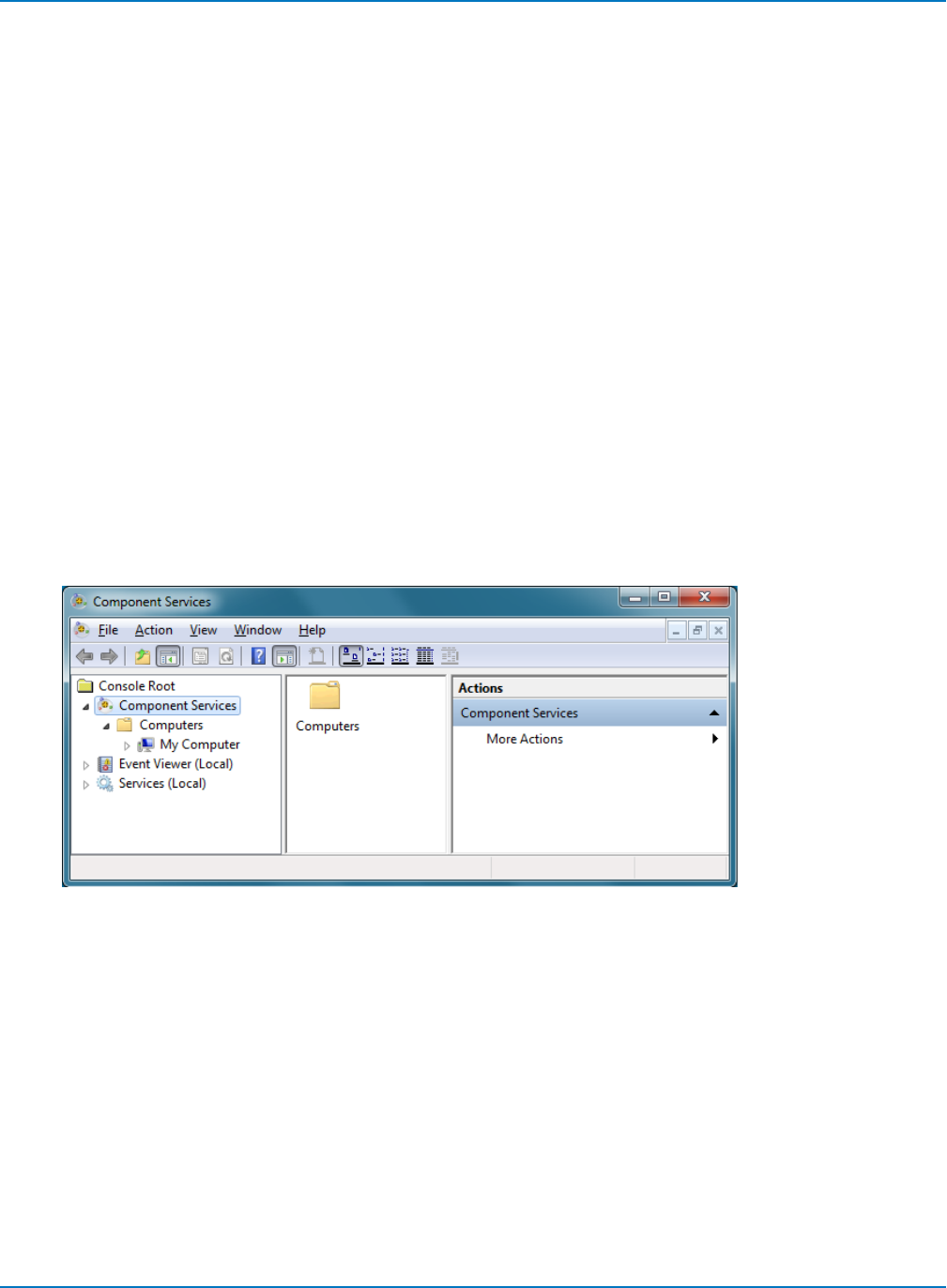

2. Expand Component Services until you see My Computer. Right-click on My Computer and choose
Properties.
1-14
