Part 1: Making the Remote Connection
D. Configure Component Services
Windows 7 and 10
On the Controller
Follow these steps if the PC is running the Windows 7 or Windows 10 operating system.

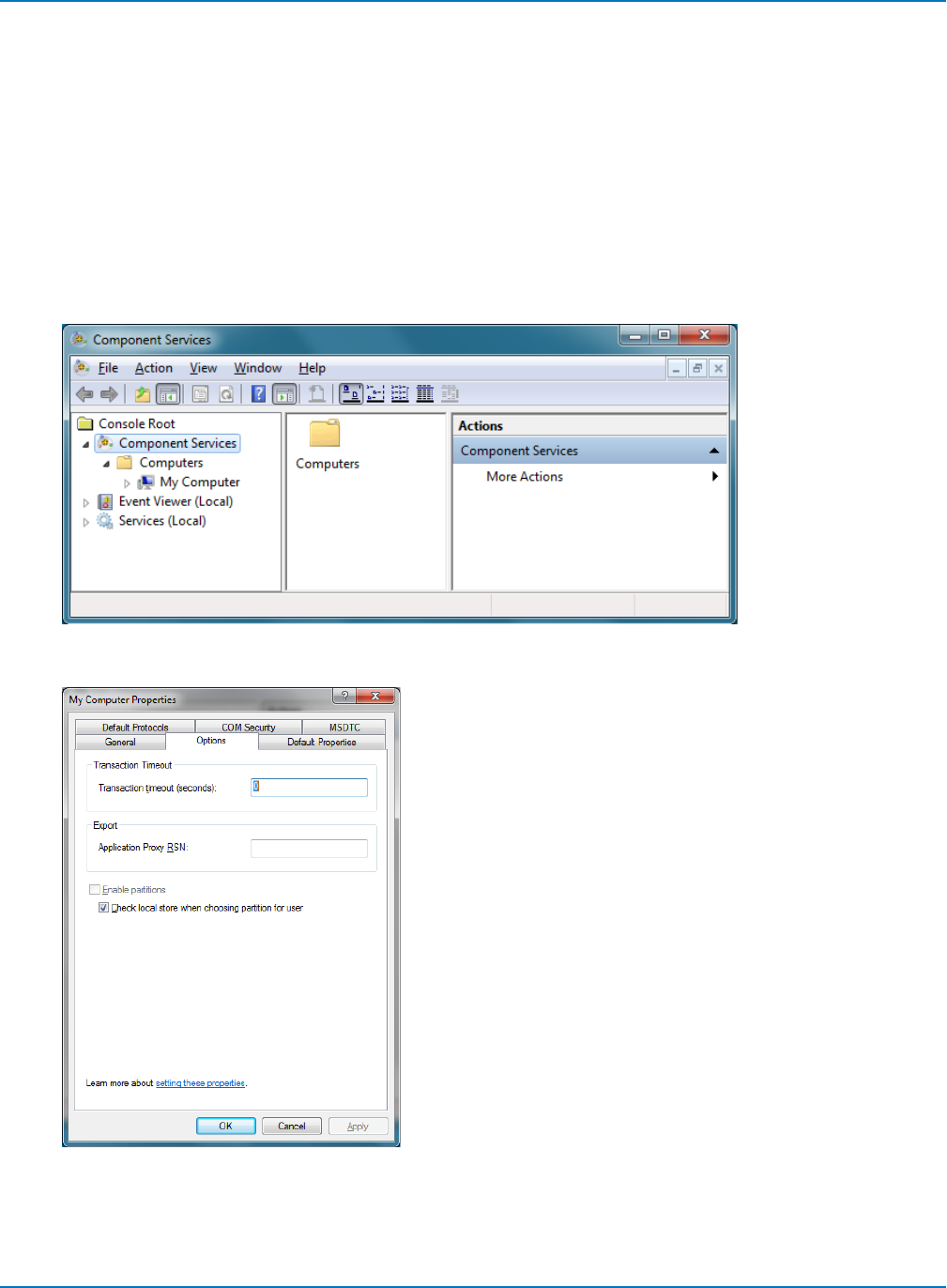

1. Go to the Windows Start menu and type dcomcnfg.exe in Search programs and files.
2. Expand Component Services until you see My Computer. Right-click on My Computer and choose
Properties.
3. On the Options tab, enter 0 for Transaction timeout, then click Apply.
4. Open the Default Properties tab. Make sure Enable distributed COM on this computer is checked. If
not check it and click Apply.
1-13
