Part 1: Making the Remote Connection
Connecting via USBTMC
USBTMC is a protocol built on top of USB that allows GPIB-like communication with USB devices. The
USBTMC protocol supports service requests, triggers, and other GPIB-specific operations.
Some (not all) MAUI oscilloscopes offer a USBTMC remote control setting. Check your product datasheet
to confirm if this is supported.
Hardware
Connect a USB A-B cable from any host port on the controller to the device port on the oscilloscope, which
is usually specifically marked USBTMC.
Controller Set Up
Install NI-VISA v 3.0 or later on the controller PC.
Note: NI-VISA is always required for the USBTMCconnection.
If you are running Windows and can utilize ActiveX controls, we highly recommend installing ActiveDSO on
the controller to simplify communications with the oscilloscope.
Optionally, install a LabVIEW driver.
Oscilloscope Set Up

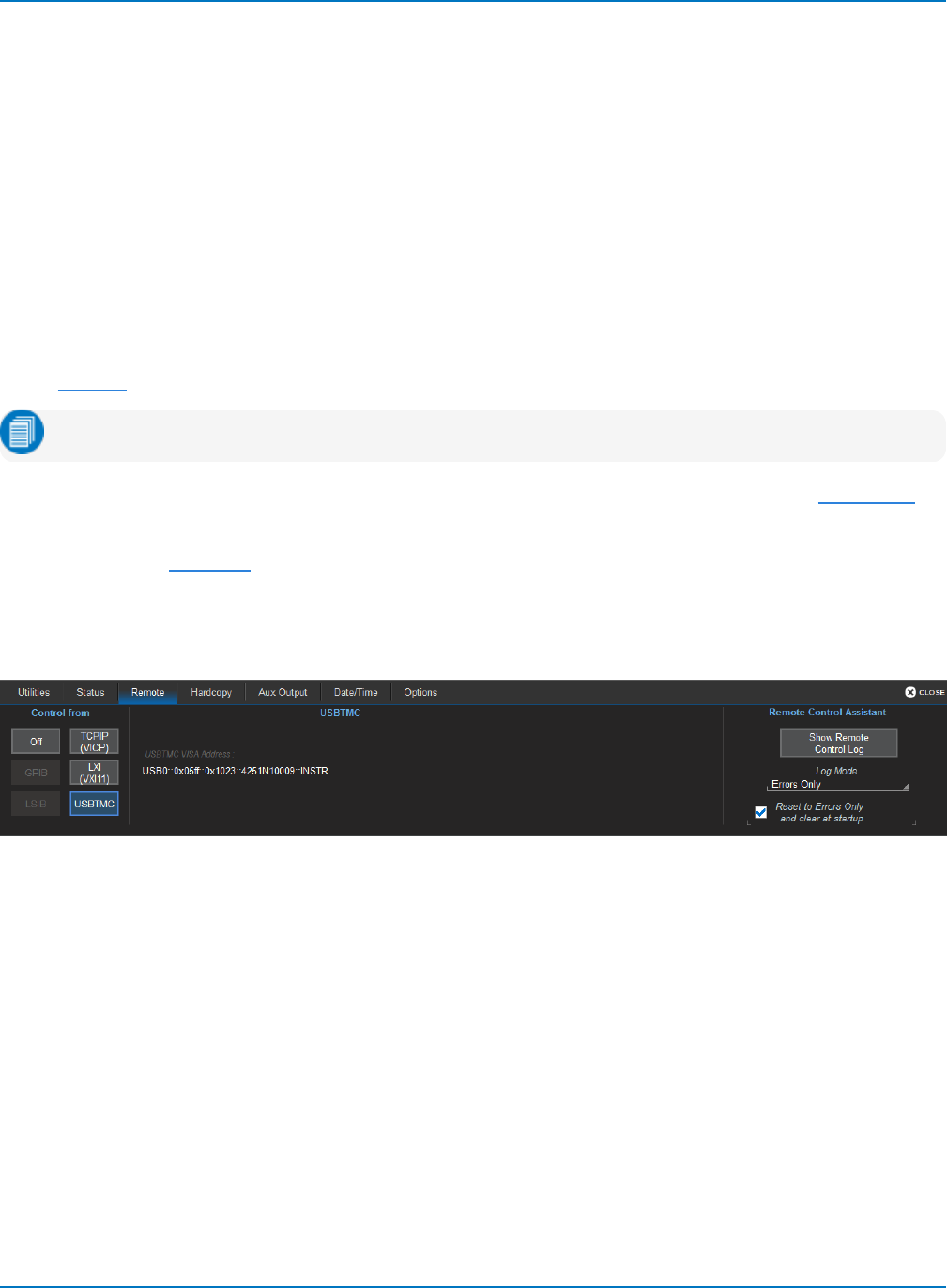

Go to Utilities > Utilities Setup > Remote and select the USBTMC remote control setting.
Record the USBTMC VISA Address for use in VISA resource strings.
