QPHY-DDR3 Software Opti on
917717 Rev C 39
Measure timing from DQS at VREF to DQ rising at VIH(ac)min and falling at VIL(ac)max.

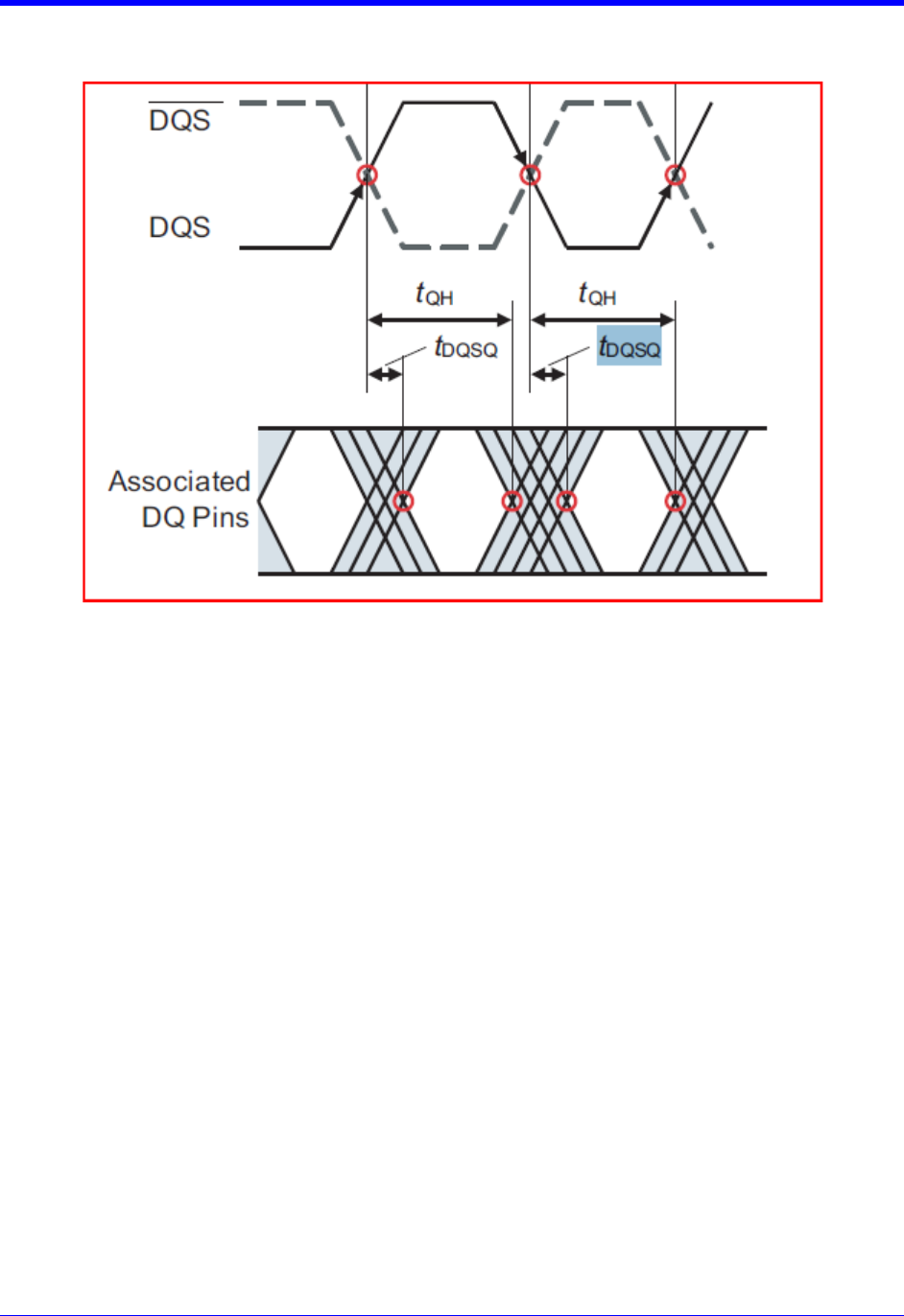

Figure 17 - Data o u tp u t (re ad) timing [JESD79-3D figure 27]
tQH, DQ/DQS Output Hold Time From DQS
This measures the timing from DQS at VREF to DQ at VIH(dc) (rising edge) or VIL(dc) (falling edge). See
figure 22.
tDQSCK, DQS Output Access Time from CK/CK #
Time from CK rising at VREF level to DQS rising at VREF level.
