QPHY-DDR3 LIMIT SETS
DDR3-800
This corresponds to the JEDEC JESD79-3D DDR3 standard specification limits for 800 MT/s.
DDR3-1066
This corresponds to the JEDEC JESD79-3D DDR3 standard specification limits for 1066 MT/s.
DDR3-1333
This corresponds to the JEDEC JESD79-3D DDR3 standard specification limits for 1333 MT/s..
DDR3-1600
This corresponds to the JEDEC JESD79-3D DDR3 standard specification limits for 1600 MT/s.
QPHY-DDR3 TESTS
Clock Tests
All time measure on clock CK are done at level VREF.

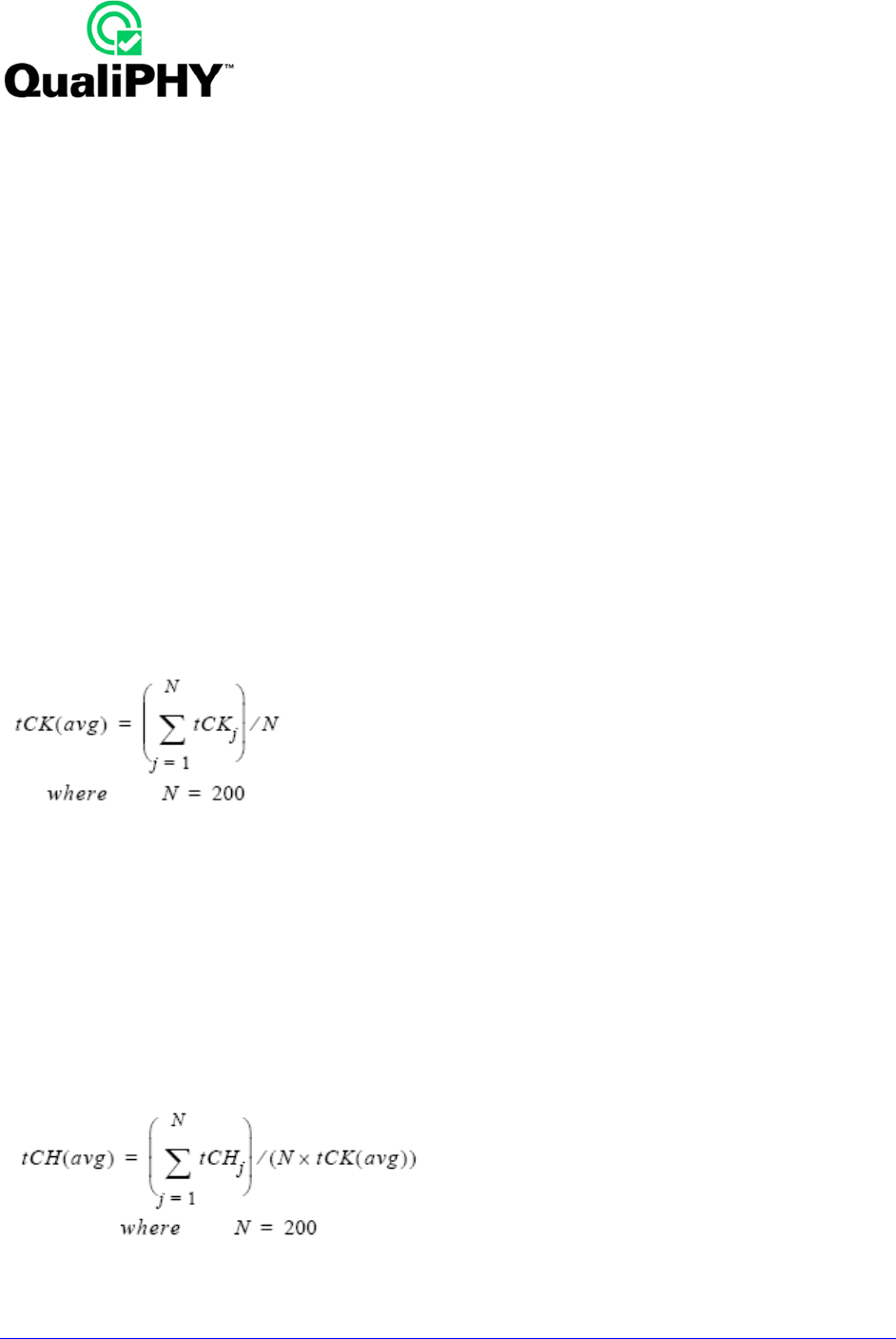

tCK(avg), Average Clock Period
tCK(avg) is calculated as the average clock period across any consecutive 200 cycle window, where each
clock period is calculated from rising edge to rising edge.
tCK(abs), Absolute Clock Period
tCK(abs) is defined as the absolute clock period, as measured from one rising edge to the next
consecutive
rising edge. tCK(abs) is not subject to production test.
tCH(avg), Average High Pulse Width
tCH(avg) is defined as the average high pulse width, as calculated across any cons ec uti ve 200 high
pulses.
