READ Burst Operation
During a READ or WRITE command, DDR3 supports BC4 and BL8 on the fly using address A12 during
the READ or WRITE (AUTO PRECHARGE can be enabled or disabled).
• A12 = 0, BC4 (BC4 = burst chop, tCCD = 4).
• A12 = 1, BL8.
• A12 is used only for burst length control, not as a column address.

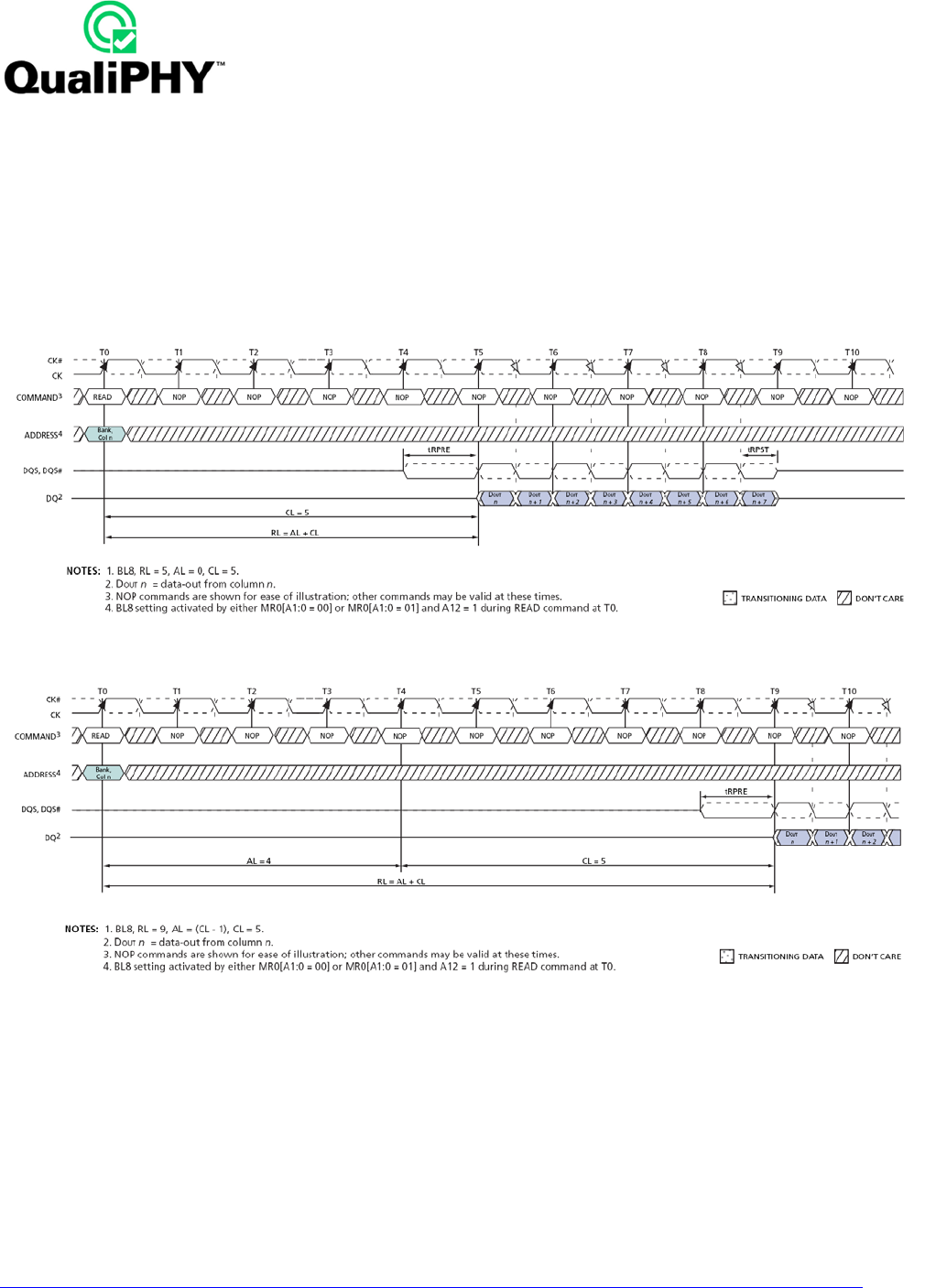

Figure 5. REA D Burst Operation RL = 5 (A L = 0, CL = 5, BL8) [JE SD79-3D Figure 25]
Figure 6. READ Burst Operation RL = 9 (AL = 4, CL = 5, BL8) [JESD79-3D Figure 26]
