Understanding Oscilloscope F unctions
Saving a Setup
The oscillosco
pe saves the current setup if you wait five seconds after the last
change before you power off the oscilloscope. The oscilloscope recalls this setup
the next time you apply power.
You can use the Save/Recall Menu to save up to ten different setups.
You can also
save setups to a USB flash drive. The oscilloscope accommodates
aUSBflash drive for removable data storage and retrieval. (See page 63, USB
Flash Drive Port.)
Recalling a Setup
The oscill
oscope can recall the last setup before the oscilloscope was powered off,
any saved setups, or the default setup. (See page 90, Save/Recall.)
Default Setup
The oscilloscope is set up for normal operation when it is shipped from the
factory
. This is the default setup. To recall this setup, push the Default Setup
button. To view the default settings, refer to Appendix D: Default Setup.
Triggering
The trigger determines when the oscilloscope starts to acquire data and to display
a waveform. When a trigger is set up properly, the oscilloscope converts unstable
displays or blank s creens into meaningful waveforms.

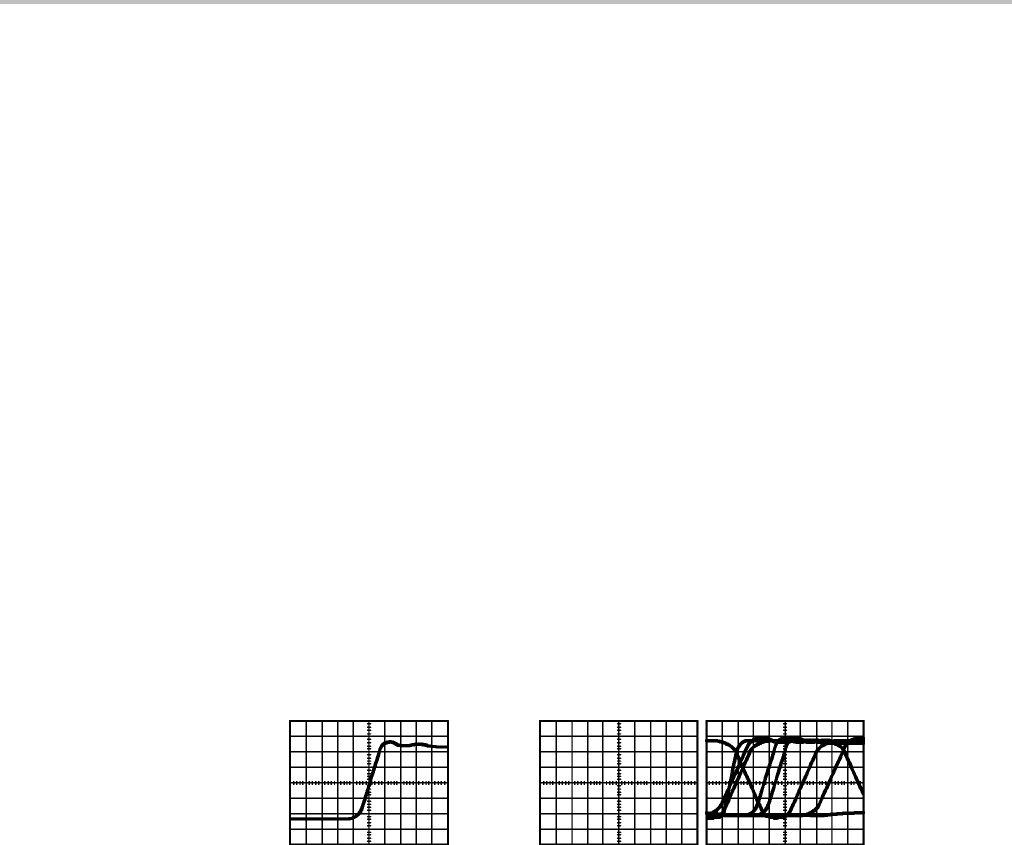

Triggered waveform Untriggered waveforms
For oscilloscope-specific descriptions, refer to the Operating Basics chapter. (See
page 15, Trigger Controls.) Refer also to the Reference chapter. (See page 95,
Trigger Controls.)
When you push the Run/Stop or Single button to start an acquisition, the
oscilloscope goes through the following steps:
1. Acquires enough data to fill the portion of the waveform record to the left of
the trigger point. This is c alled the pretrigger.
2. Continues to acquire data while waiting for the trigger condition to occur.
3. Detects the trigger condition.
20 TBS1000 Series Oscilloscopes User Manual
