Operating Basics

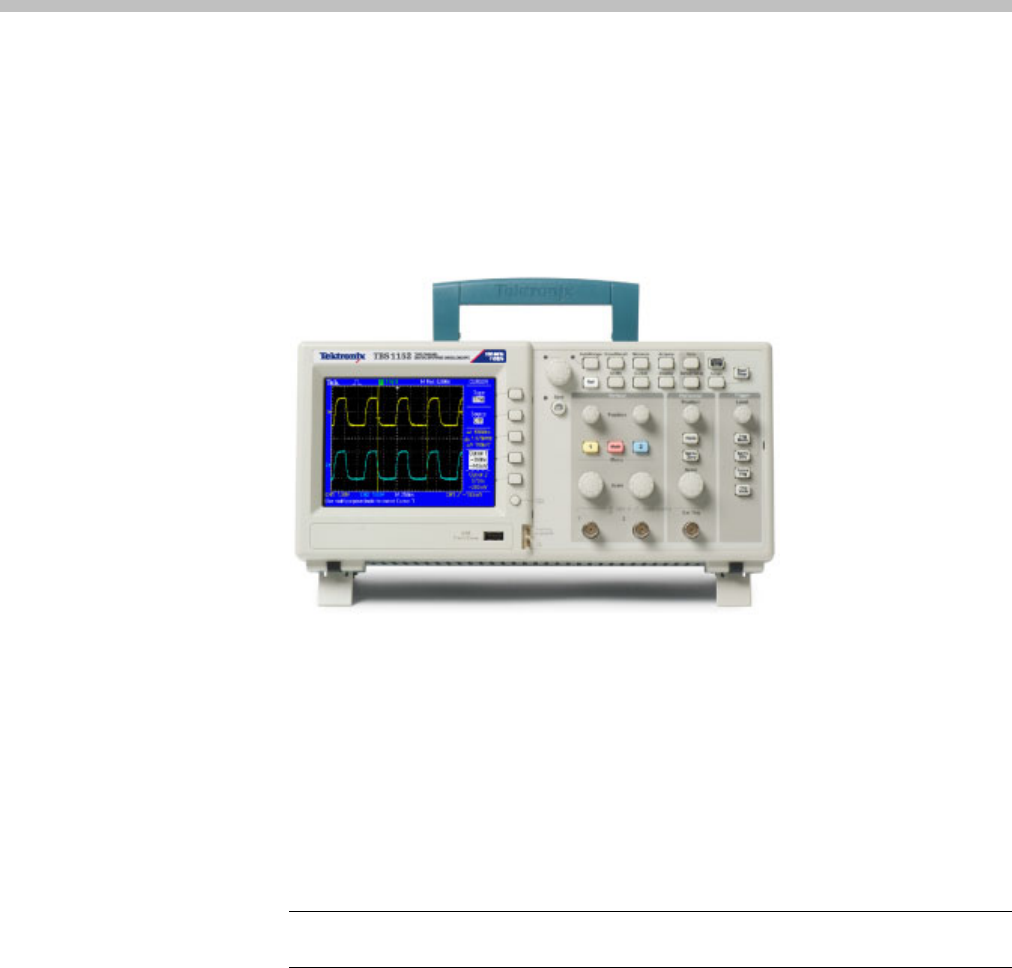

The front panel is divided into easy-to-use functional areas. This c hapter provides
you with a quick overview of the controls and the information displayed on the
screen.
Display Area
In addition to displaying waveforms, the display is filled with many details about
the waveform and the oscilloscope control settings.
NOTE. For details on displaying the FFT function, (See page 57, Displaying
the FFT Spectrum.)
TBS1000 Series Oscilloscopes User Manual 9
