Appendix C: Accessories
All accessories (standard and optional) are available by contacting your local
Tektronix field office.

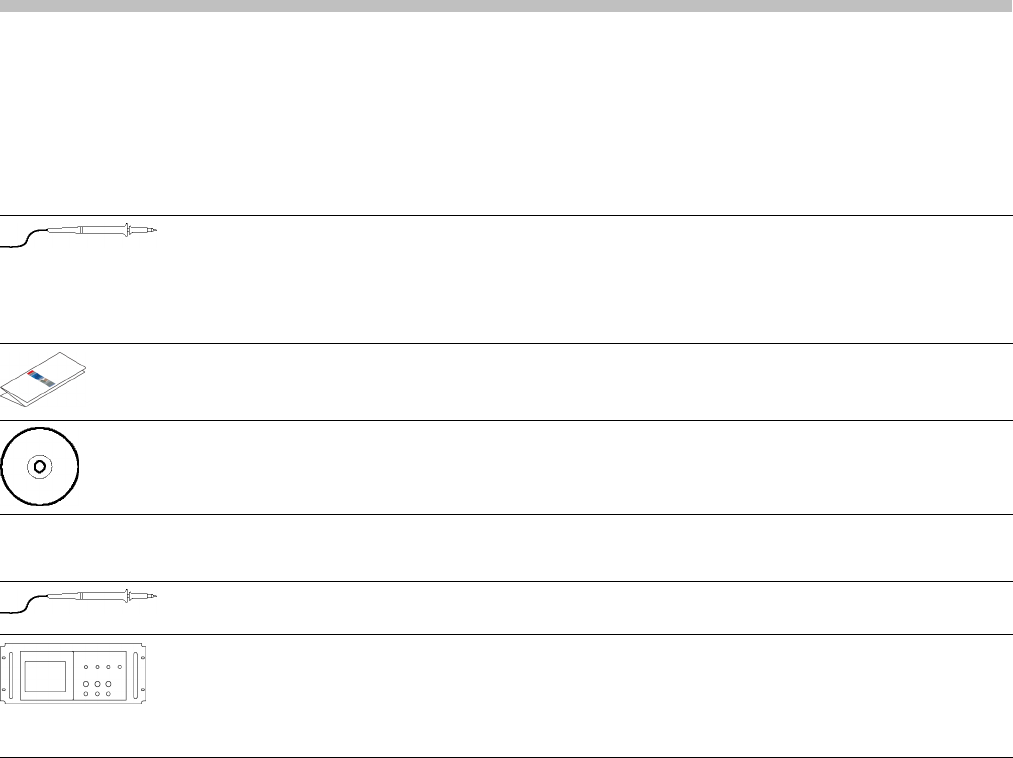

Standard Accessories
TPP0101 or TPP0201, 10X Passive Voltage Probe. The TPP0101 probes have
a system bandwidth of DC to 100 MHz at -3 dB and ship standard w ith TBS1000
oscilloscope models that hav e bandwidths up to 100 MHz.
The TPP0201 probes have a system bandwidth of DC to 200 MHz at -3 dB and ship
standard with TBS1000 models with bandwidths greater than 100 MHz.
TBS1000 Oscilloscope Compliance and Safety Instructions. (English, Japanese,
Simplified Chinese) (071-3187-XX) A single p rinted document is included. Refer to the
Optional Accessories for a complete list of available language manuals.
Customer Documentation Brow ser CD-ROM. This CD offers additional product
information (063-4479-XX).
Optional Accessories
P6101B 1
X Passive Voltage Probe. The P6101B probe has a 15 MHz bandwidth
with a rating of 300 V
RMS
CAT II.
RM2000
B Rackmount Kit. The RM2000B Rackmount Kit lets you install a
TBS1000 series oscilloscope into an industr y-standard 19 inch rack. The rackmount kit
requires seven inches (18 cm) of vertical rack space. You can turn the oscilloscope
power o
n or off from the front of the rackmount kit. The rackmount kit does not have
slide-out capability.
TBS1000 Series Oscilloscopes User Manual 123
