User manual

Reference

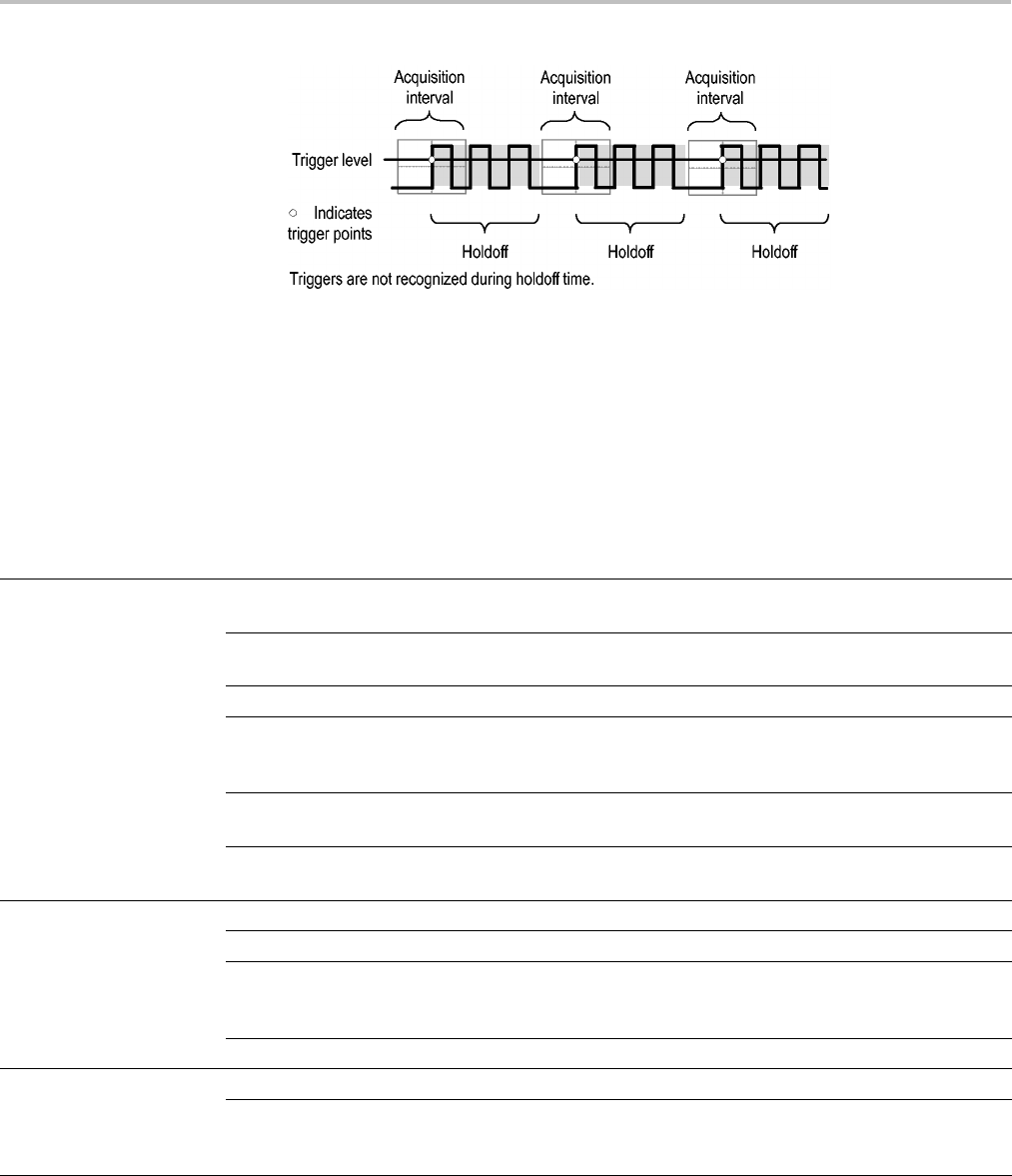

To use Trigger Holdoff, push the Horiz ► Set Trigger Holdoff option button
and use the multipurpose knob to adjust the holdoff. The resolution of the trigger
holdoff va
ries depending on the horizontal scale setting.
Utility
Push the U
tility button to display the Utility Menu.
Options Settings Comments
Source Defines the source of the waveforms against which to run
the temp
late waveform
Compar
eTo
Specifi
es the limit test template against which to compare
the s ignals defined with the S ource menu item.
Run/Stop Test
Toggl
es between whether to start or stop the limit test
Template Setup Sets up a limit test waveform template. This is the mask
signal you define as the boundary to compare with the input
sour
ce signal. Do this before running a limit test
Action on Violation
Defin
es the actions the oscilloscope will take after detecting
a violation
Limit Test
Stop After Defines the conditions that will cause the oscilloscope to
end limit testing
Data Logging
Sets the data logging feature on or off
Source Sets the signal source to log data from
Duration
Sets the time duration of data logging in half hour increments,
f
rom 0.5 hour to 8 hours, or in one hour increments, from 8
hours to 24 hours, or to indefinite
Data Logging
Select Folder Sets the folder to save the waveform data to
Summary of the oscilloscope settingsSystem Status
Misc.
Displays model, m anufacturer serial number, adapters
connected, GPIB setup address, firmware version, and other
information
100 TBS1000 Series Oscilloscopes User Manual
