OCCASIONAL CLEANING

552

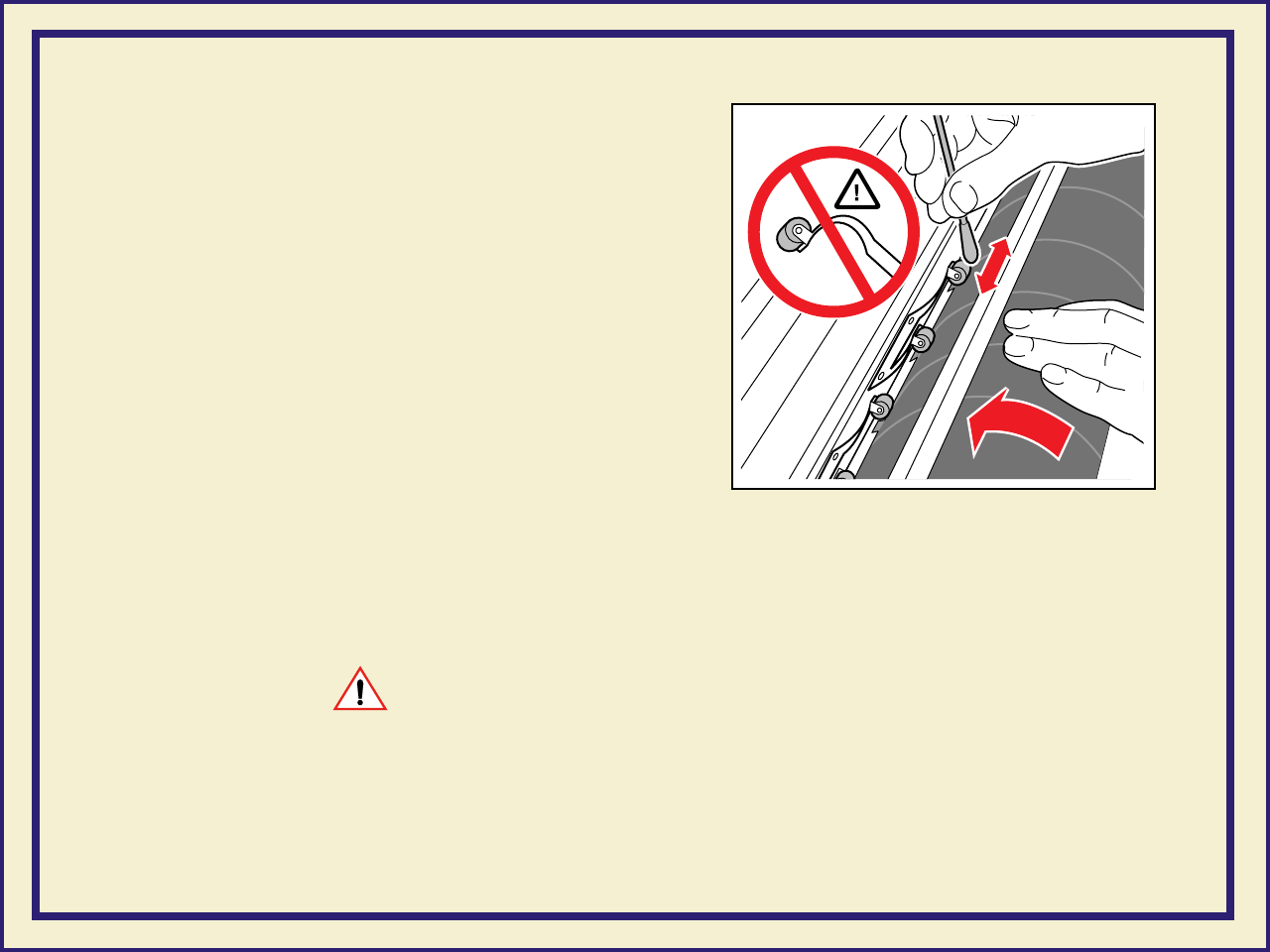

Clamp rollers

The clamp rollers are located behind the drum.

Clean them when you notice ink offsetting or

ink smears on your prints.

1 Use a foam swab from the cleaning kit that

has been moistened with 90% pure

isopropyl alcohol.

lean the surface of the roller by rubbing it

with the swab.

3 Rotate the drum away from you (toward the back of the printer); this rotates

the clamp rollers. Clean the entire surface of the roller.

CAUTION

Do not pull the roller away from the drum; the metal that attaches it to the printer is

very ﬂexible and can be permanently bent.

4 Repeat Steps 2 and 3 for each of the rollers.

9480-21
