SETTING UP THE PRINTER

Attaching the Quick Reference Guide

The

Phaser 600 Quick Reference Guide

is designed to attach to the printer above

the front panel.

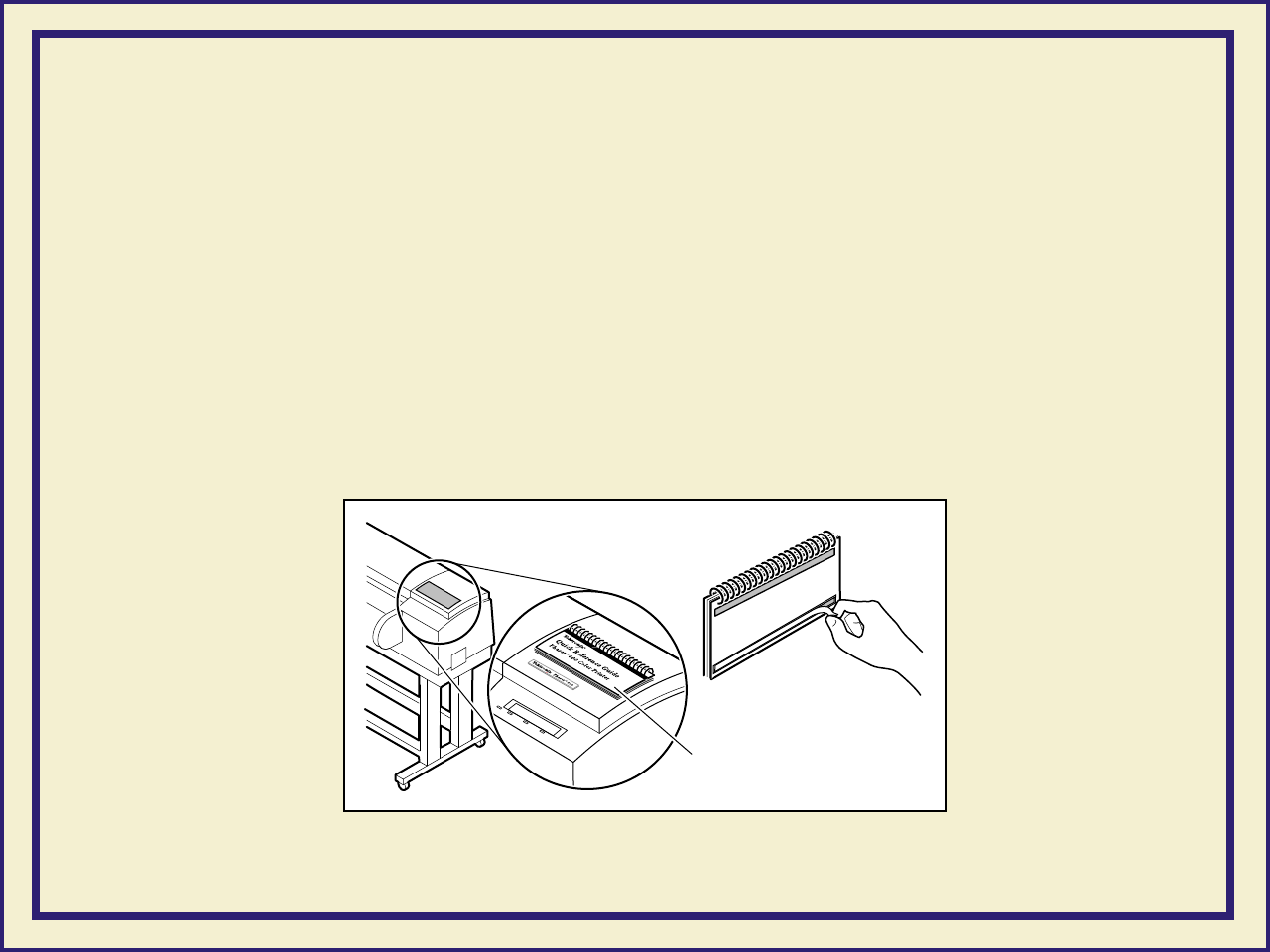

1 Remove the reference guide from the accessories box.

2 Peel the backing from the double-sided tape.

3 Press the booklet onto the top right side of the printer, above the front panel.

9480-123
