ALL ABOUT MEDIA

157

All about media

Selecting media by size

You can select media by size

through the printer drivers or from

the front panel. This printer is

capable of printing on cut-sheet

media in several sizes (refer to the

table on the P

age size, print area,

and margins), as well as media

rolls ranging in width from

175 to 914 mm (7 in. to 36 in.).

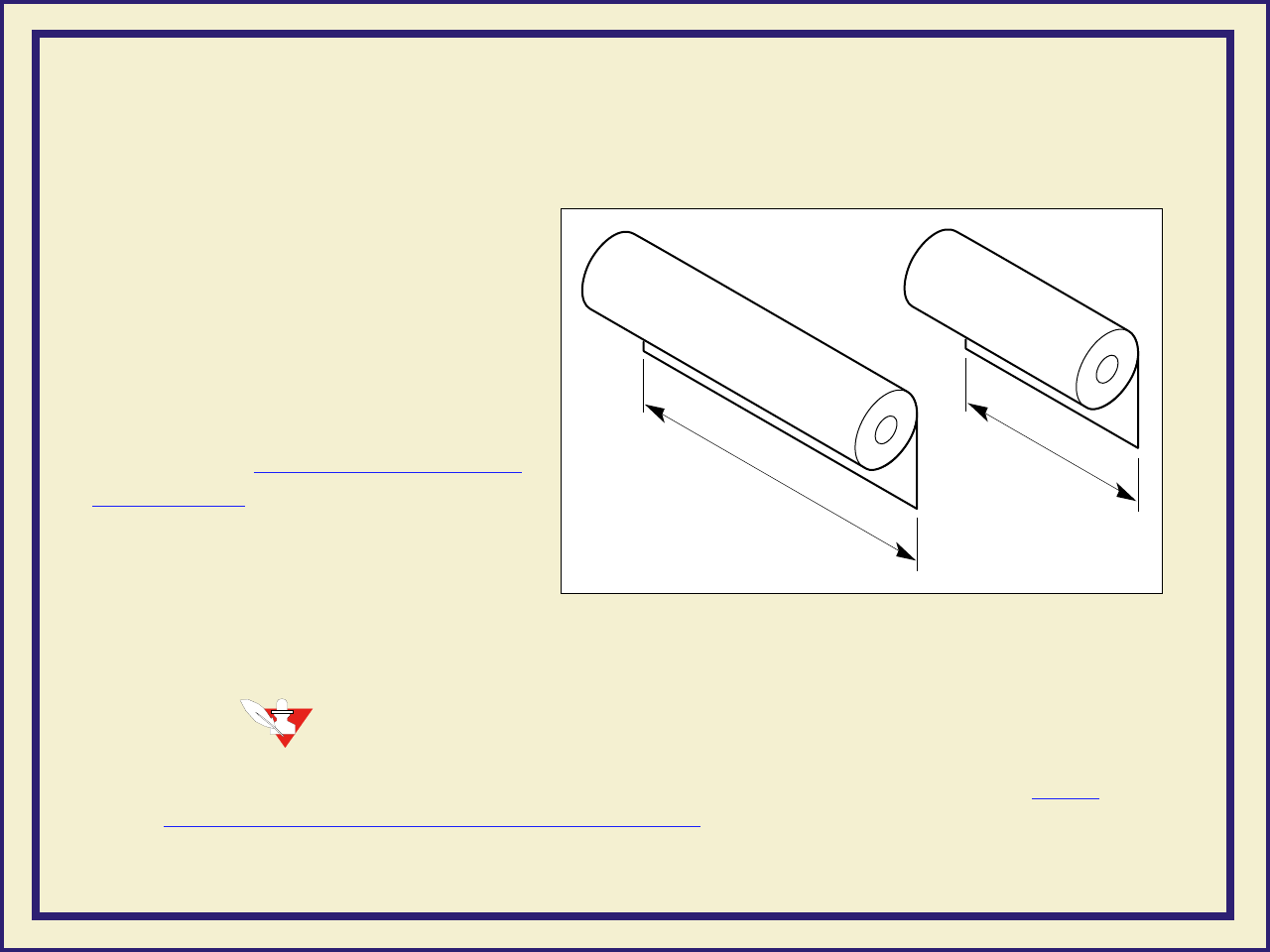

Tektronix offers paper rolls with the widths shown in the illustration.

NOTE

The Tektronix media rolls have a three-inch core. If you are using a media roll with a

two-inch core, you must remove the adapter on the paper roll holder. Refer to Using

a 2-inch core media roll: removing the core adapter for instructions.

9480-51

914 mm

(36 in.)

610 mm

(24 in.)
