Getting Set Up
2
User Manual
2-13
Loading ink sticks
The printerÕs standard accessories include a box containing one of each color
Phaser 380 ColorStix solid-ink sticks: magenta, cyan, yellow and black.
YouÕll need to load the box of ink sticks during printer set up. To ensure that
your printer is always available for use, immediately reorder and maintain a
stock of each color ink stick. Refer to ÒOrdering printer suppliesÓ on
page 8-2 for ordering information.
Caution
Tektronix Phaser 380 ColorStix ink is formulated speciÞcally
for use with the Phaser 380 printer. To avoid damaging the
printhead, only use Phaser 380 ColorStix solid-ink sticks.

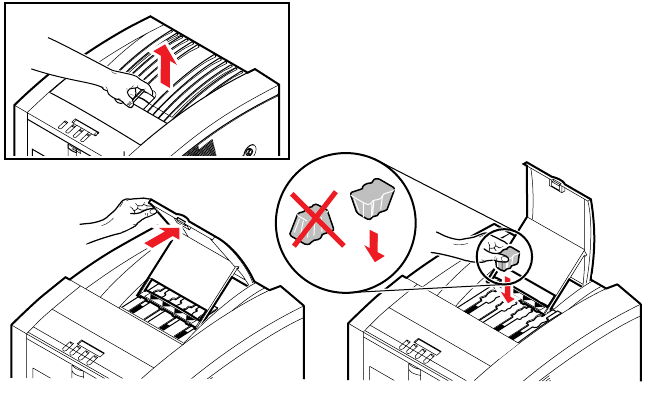

1.
Open the top cover. A color-coded label inside the top cover
corresponds to the color of each ink-loading bin.
2.
Drop the appropriate color Phaser 380 ColorStix ink sticks into
each ink-loading bin. Ink sticks are uniquely shaped to Þt into the
correct ink-loading bin. Add up to three ink sticks for each color.
3.
After loading the colored ink sticks, close the top cover.
Note
To ensure optimum printing performance and best ink economy,
leave the printer turned on overnight and during weekends.
1
2
9662-09
