Caring for Your Printer
5
User Manual
5-21
3.
Press the Clean button. A front panel message prompts you to
install the cleaning tray in the upper media tray.
a.
Remove the upper media tray from the printer. Remove all
print media from the media tray.
b.
Remove the cleaning tray from the cleaning kit and open the
tray lid to reveal the cleaning tray sponge.

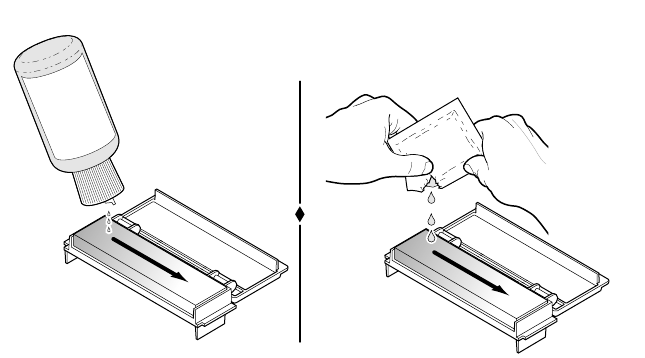

c.
Lightly wet the cleaning tray sponge with isopropyl alcohol
(
A
); a bottle is provided in the cleaning kit for the alcohol.
Alternately, you can squeeze the alcohol from two pre-soaked
alcohol wipe packets to moisten the cleaning tray sponge (
B
).
Caution
Do not use rubbing alcohol because it can contain water and
oils that leave undesirable residue on the printer parts. Never
use water to clean the printerÕs internal components. Failure
to follow these instructions may invalidate your printerÕs
warranty.
9662-46
AB
90%
Isopropyl
alcohol
