Operating Basics
AWG710&AWG710B Arbitrary Waveform Generator User Manual 2-31
Followings are more cursor operations that are available by using the SHIFT button
on the front–panel:
Push the SHIFT front–panel button then turn the general purpose knob to
accelerate the cursor transfer speed.
Push the SHIFT front–panel button then push the TOGGLE front–panel
button to move the inactive cursor to the active cursor position (the two cursors
overlap).
Push the SHIFT front–panel button then push the ENTER front–panel button
to move left cursor to 0 point and to move the right cursor to the maximum
point.
Multiple Editor Windows
The AWG710&AWG710B Arbitrary Waveform Generator can open and edit up
to three waveform and/or pattern files, in any combination. The waveform data is
displayed in separate windows, with each window stacked vertically on the screen.

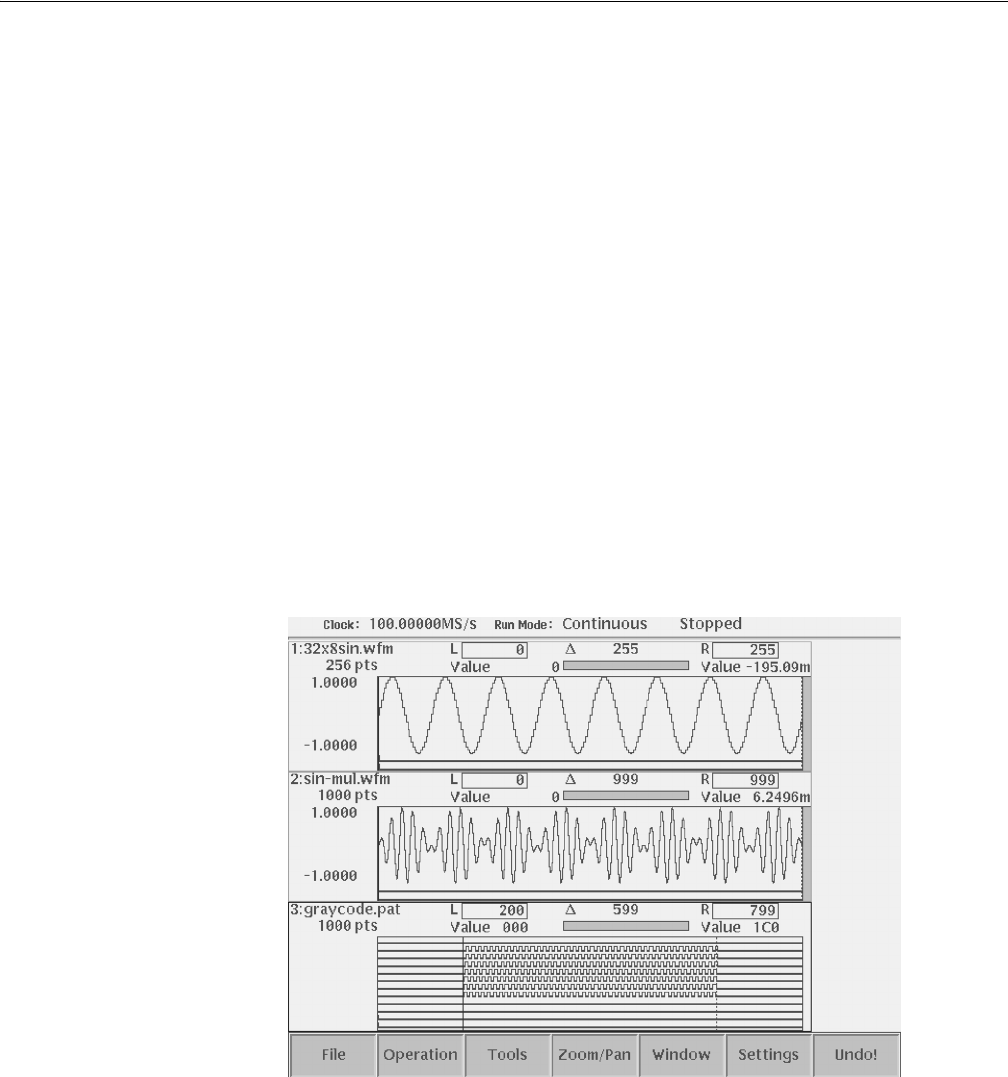

Multiple editor windows are very useful for creating a new waveform by cutting
and pasting waveform data from other files. Figure 2-23 shows an example of three
opened editor windows (one pattern and two waveform files).
Figure 2-23: Multiple editor windows
