The APPL Menu
3-142 AWG710&AWG710B Arbitrary Waveform Generator User Manual

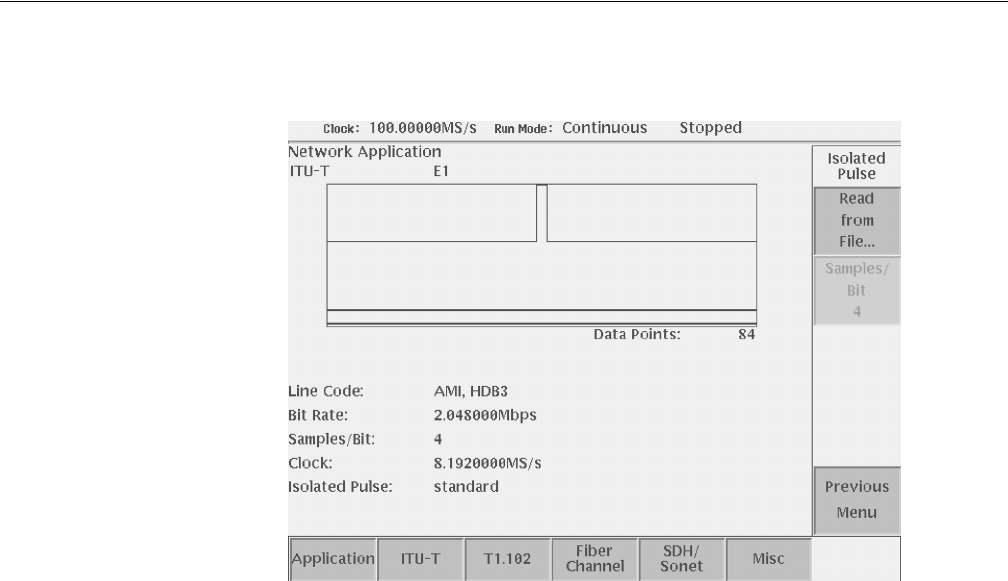

Figure 3-42: Side menu for selecting the Isolated pulse
5. Press Read from File... side button. The side menu will change.
6. Select a waveform file from the file list as a isolated pulse.
7. Samples/Bit side button will be enabled. Select a value from 1, 2, 4, 8, 16, 32,
64.
8. Press Previous Menu side button to return Figure 3-41.
9. Press Execute side button to execute superposing.
The generated waveform is displayed in the menu screen window.
