Save space and minimize test lead
length in automated test systems
Even though the Series 2230G supplies can output 195 W
and 375 W and are linear, low noise sources, they are only
2 U high and half-rack wide. The compact size helps to
minimize the size of a test system by saving valuable rack
space. In addition, the Series 2230G supplies have both
front and rear output connections so that test lead wires
from the supplies can be as short as possible. If the rear
panel output connections are used, then the test leads
are protected from accidental contact to improve test
system reliability.

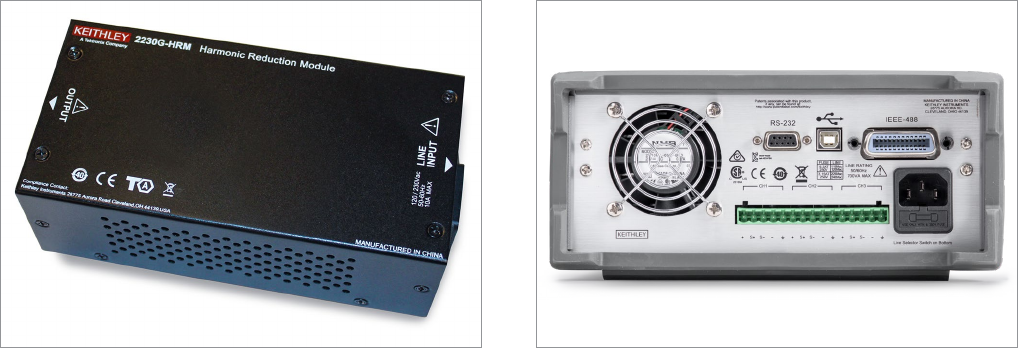

2230G-HRM Harmonic Reduction Module reduces AC power line current
harmonics when inserted between the power supply and the power outlet.
The 2230G-HRM is required for compliance to standard EN 61000-3-2 in
EU countries and is needed for the 2230G-30-6 and 2230G-60-3.
Series 2230G power supplies rear panel showing the USB, GPIB, and
RS-232 interfaces and the rear output, source, and sense lead terminal
block for all three channels.
Test automation options
The Series 2230G supplies have three standard interface
options for PC control, USB, GPIB, and RS-232. Either
interface enables complete control of the supply. LabView
and IVI drivers, downloadable from www.tek.com,
facilitate instrument control, data logging, and analysis.
With these drivers, the power supplies can be controlled
from most commercially-available software packages
such as MatLab. With a software package and drivers, the
supplies can be controlled in either a semi-automated or a
fully-automated test system.
