6. INSTALL THE PRESSURE HOSE AND ADAPTER
Locate the pressure port on the hydraulic block as indicated. Disconnect the machine’s hose and install run
tee (M). Reconnect the original hose to the run of the tee. Then connect and route hose (J) from the P
port of the FieldPilot valve to the branch of the run tee (M). Adapter (P) can be used as needed to make
your installation easier.

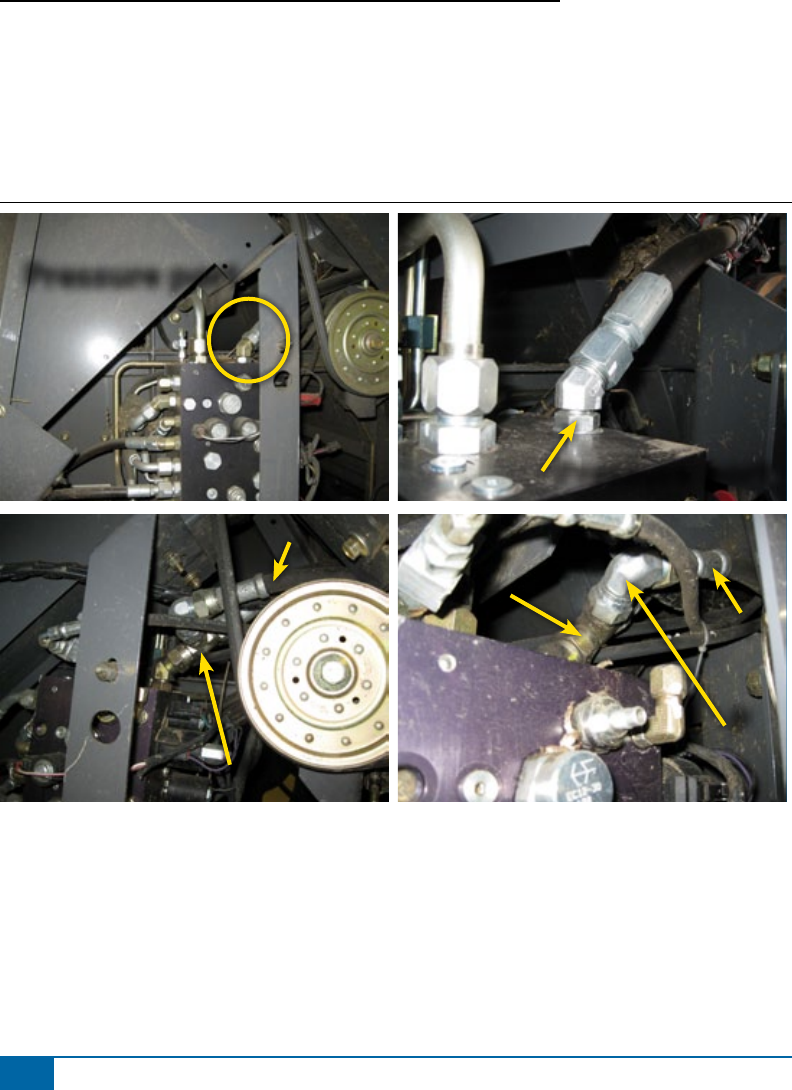

Figure 1-8: Install the Pressure Hose and Adapter
Pressure port
Pressure port
J
M
J
P
M
