FieldPilot
®

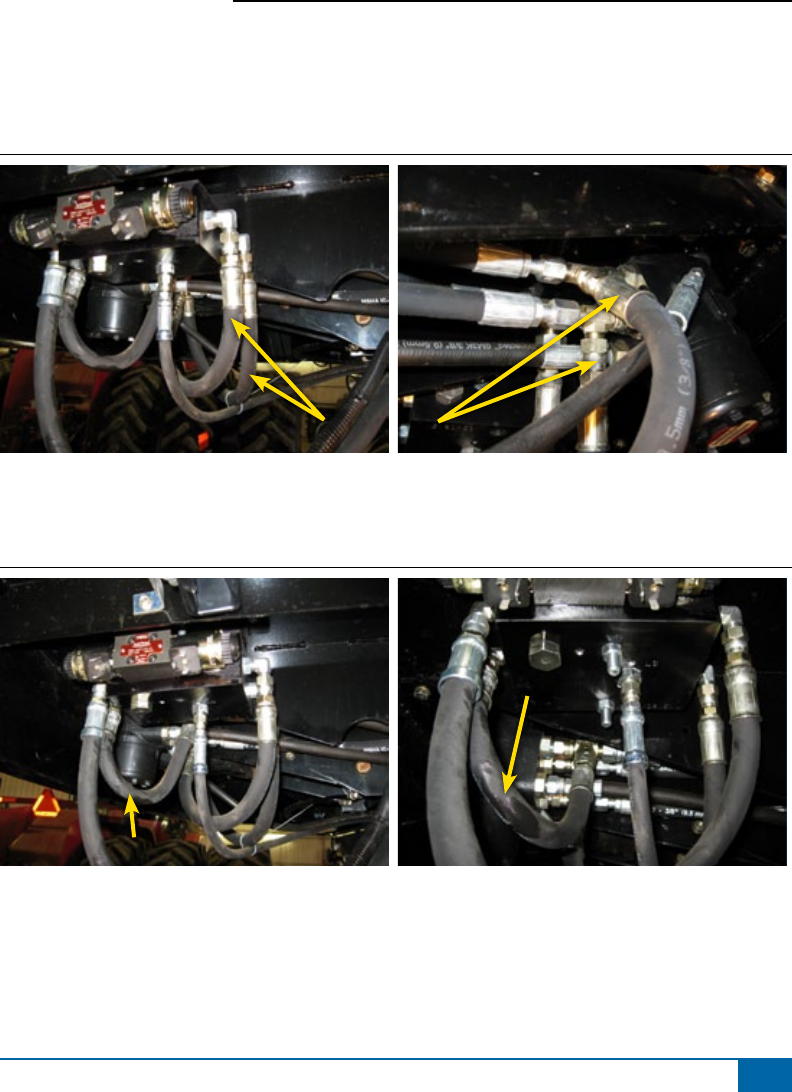

4. INSTALL THE STEERING HOSES
Connect hoses (I) from the A & B ports of the FieldPilot valve to the branches of run tees (O) on the L & R
ports of the orbital.
Figure 1-6: Install the Steering Hoses
5. INSTALL THE TANK HOSE
Connect hose (H) from the T port of the FieldPilot valve to the T port of the Orbital.
Figure 1-7: Install the Tank Hose
I
H
H
I
