70 Series Flow Volume Monitor User Guide 98-05075 R2

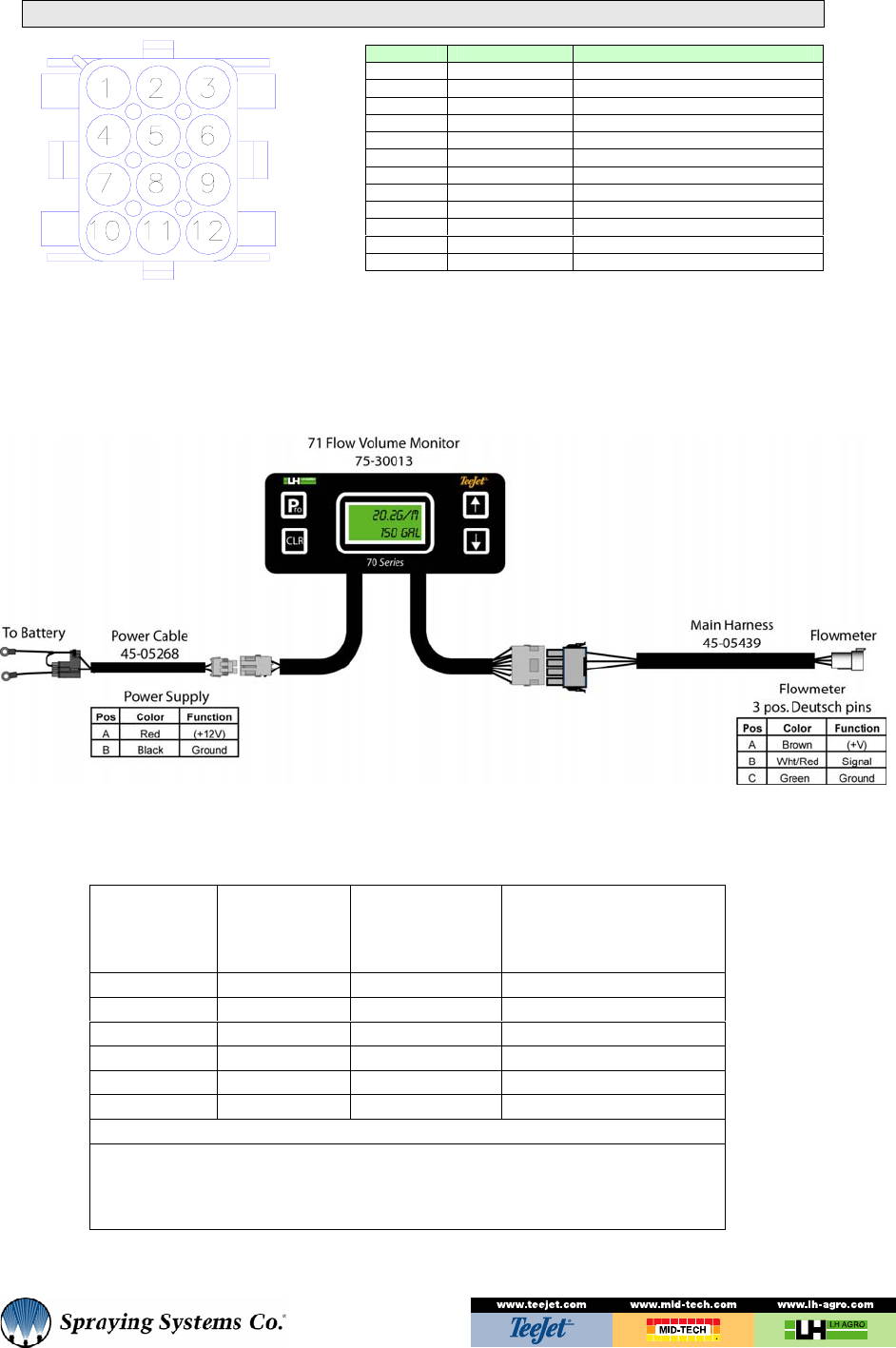

1. Connections table

Contact Color Description

2 Wht/Red Flowmeter Signal

9 Brown Power supply sensor

10 Green GND sensor

Part # Flowmeter

Calibration #

Pulses/Liter

Input # for 70 Console

Calibration #

Pulses/Gallon

90-50230 TeeJet 801 83 314

57-00079 LH - 10D 242 916

57-00080 LH - 16D 79 299

57-00081 LH - 20D 50 189

57-00082 LH - 26D 24 91

57-00094 LH - 40D 21 79

Pulses per liter X 3.785 = Pulses per gallon (input into 70 console)

Pulses per gallon / 3.785 = Pulses per liter (input into 70 console)

View from cable

(

45-05439

)

side

PAGE 1
70 Series Flow Volume Monitor User Guide 98-05075 R2 1. Connections table Contact 1 2 3 4 5 6 7 8 9 10 11 12 Color Description Wht/Red Flowmeter Signal Brown Green Power supply sensor GND sensor View from cable (45-05439) side Part # Flowmeter Calibration # Pulses/Liter Input # for 70 Console Calibration # Pulses/Gallon 90-50230 57-00079 57-00080 57-00081 57-00082 57-00094 TeeJet 801 LH - 10D LH - 16D LH - 20D LH - 26D LH - 40D 83 242 79 50 24 21 314 916 299 189 91 79 Pulses per liter X 3.
PAGE 2
. Generality Function Key Description The unit will power on and show the first working screen 1. Power on Pro US Units 2. Power off 20.2 G/M 15 GAL ↑ and ↓ Metric Units 76.5l/M 57 l The unit will power off 3. Functionality Function Display Possible actions 20.2 G/m 15 GAL Main screen ↑ ↓ to scroll between Actual volume and Total volume 76.
