Performance Data Sheet

March 7, 2011
Specifications/ Parts:
Model AWG4517CXNXC
Fan Motor 810F050C20
Unit Bill of Material 2B3270-1 Fan Motor RLA 0.70
Nominal Volts-Hz-Ph 208-230-60-1 Fan Blade 51568-1
Refrigeration Range 20° to 55° Fan Guard 70831
Design Pressure Low 150 Fan Shroud 70727-2
Design Pressure High 450 High Pressure Switch N/A
Voltage Range 180 to 254 Low Pressure Control N/A
Min. Circuit Ampacity 12.6 Dual Pressure Control N/A
Max. Fuse Size (amps) 20 Condenser 50857-1
Compressor Model AWG5518CXN Headmaster Valve * N/A
Comp. Bill of Material AW703GT-111-P21 Check Valve * N/A
Compressor RLA/LRA 9.4 / 52 Receiver Tank 51081-1
Overload INTERNAL Liquid Valve 31581-1
Relay 820ARR3H23 Liquid Filter * N/A
Run Capacitor 85PR370F20 Sight Glass * N/A
Run Capacitor Rating 25MFD 370V(M) VDE Suction Valve 31529-1
Start Capacitor 85PS330D17 Rotolock Valve Gasket N/A
Start Capacitor Rating 145-175 MFD 330V VDE Discharge Valve * N/A
Contactor N/A Suction Filter * N/A
Unit Drawing DGU1918-29 Accumulator N/A
Wiring Diagram 91028-9 Crankcase Heater * 91022-1
Defrost Timer * N/A
* = Outdoor Units Only
Options for Outdoor Units
Receiver Heater N/A
Solenoid Valve N/A

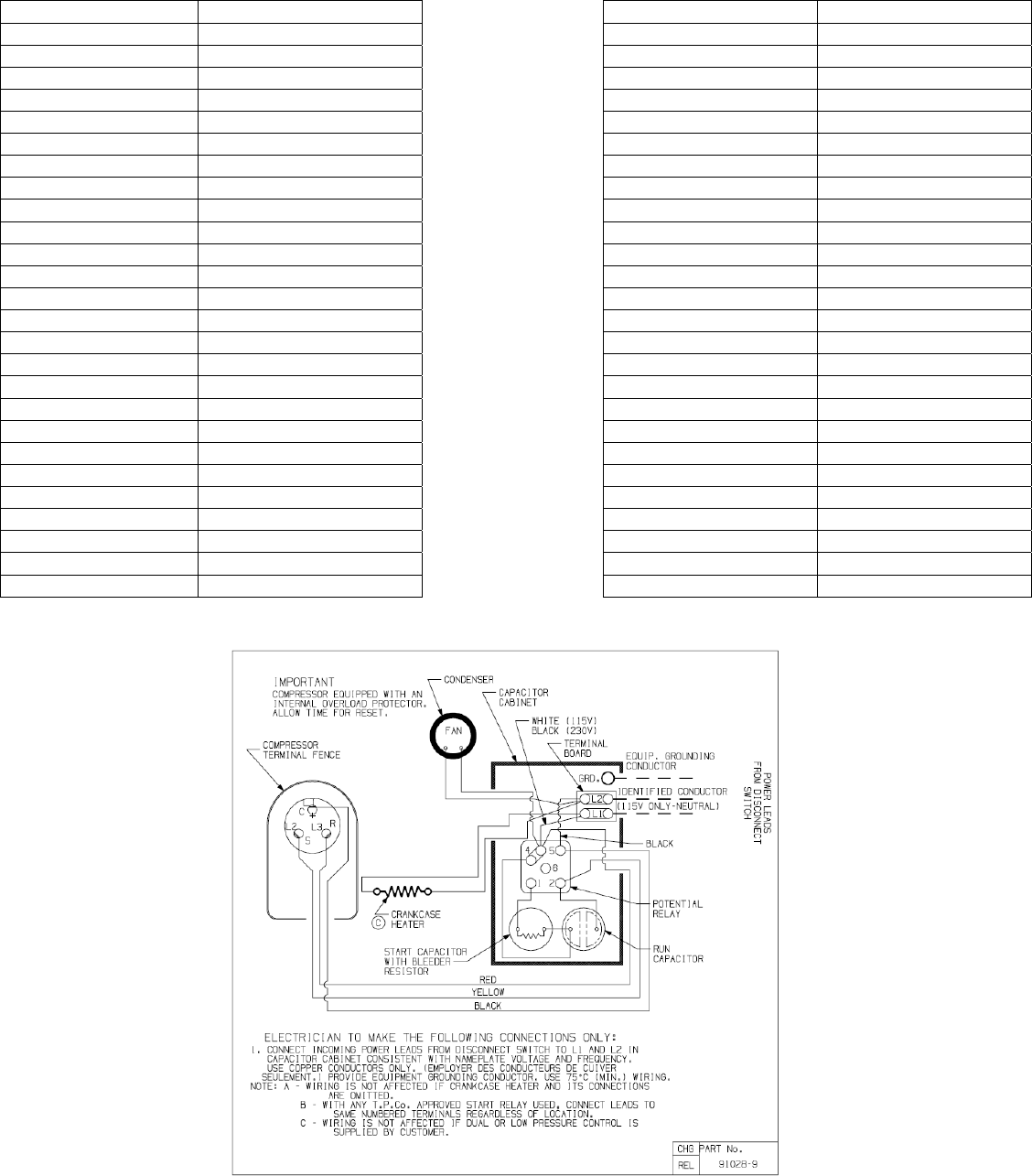

Electrical Wiring Diagram
