Performance Data Sheet

March 7, 2011
Tecumseh Compressor Company
Indoor Condensing Units
Model: AWG4517CXNXC BoM: 2B3270-1 R407C 1.5 HP AIRCOOLED

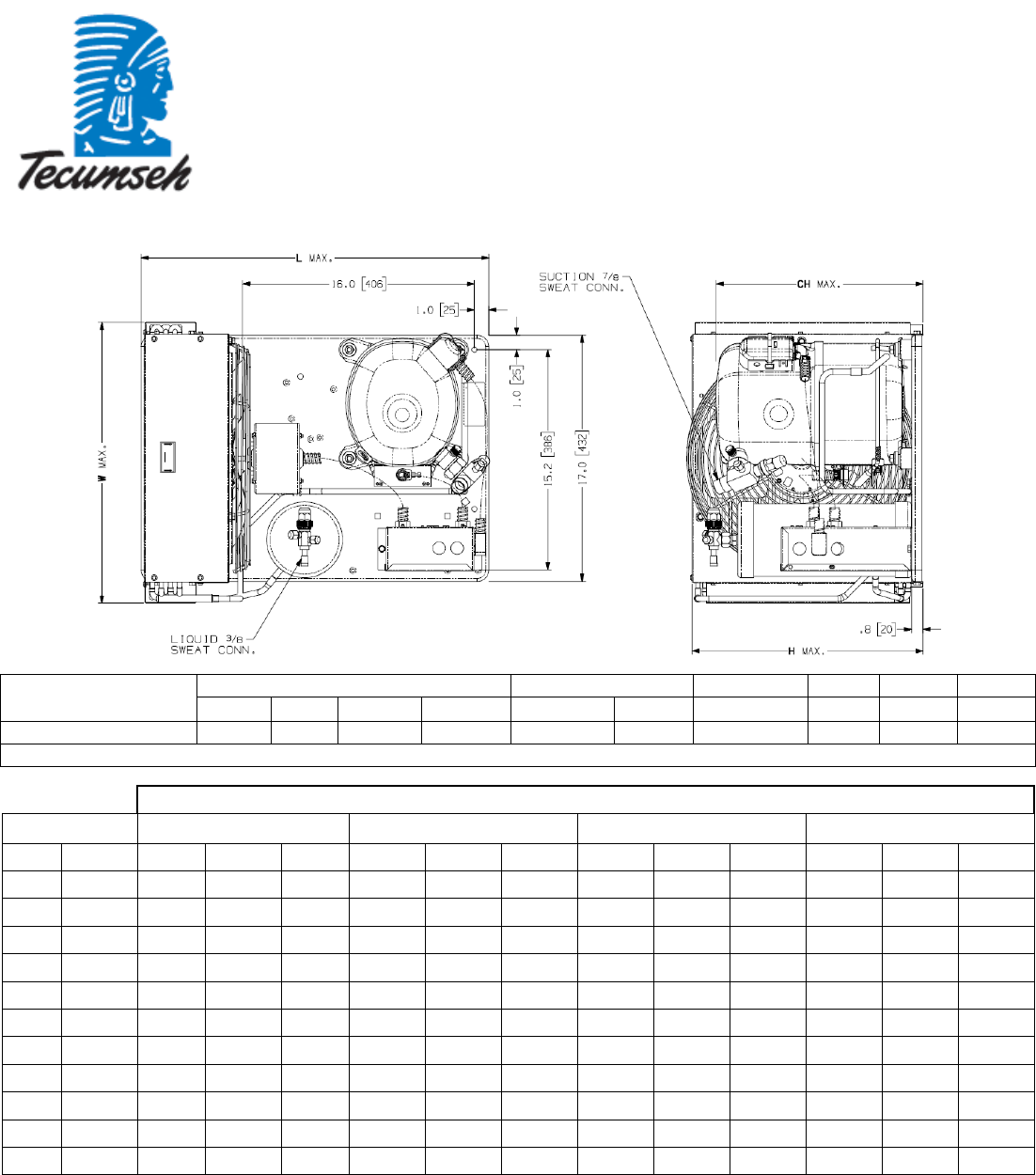

Dimensions, inches Line Connection* Pumpdown Air Oil Ch Gr. Wt.
Model
L W H CH Suction Liquid
90 F 90%
SCFM Oz. Lbs.
AWG4517CXNXC
24.0 19.4 16.2 15.6 7/8” S 3/8” S 10.9 lbs 770 38 134
* F = Flare, S = Solder, RF or RS = Rotolock with Flare or Solder Connections, C = Compression Fitting
Ambient Temperatures
Evaporator T, 80°F 90°F 100°F 110°F
°F PSIG BTUH Watts Cond T BTUH Watts Cond T BTUH Watts Cond T BTUH Watts Cond T
5 23.5 6686 1223 89 5832 1167 97 4587 1192 108 3603 1150 112
10 27.9 8040 1294 91 7093 1262 100 5820 1280 110 4777 1246 115
15 32.7 9446 1373 94 8392 1364 102 7064 1377 112 5935 1350 118
20 37.9 10904 1460 97 9729 1470 105 8321 1481 115 7078 1461 122
25 43.6 12414 1555 100 11103 1582 109 9591 1592 118 8206 1580 125
30 49.6 13976 1659 103 12514 1698 112 10872 1711 120 9319 1706 128
35 56.1 15590 1771 107 13963 1820 115 12166 1837 123 10416 1840 131
40 63.2 17257 1891 110 15449 1947 118 13472 1971 126 11498 1981 134
45 70.7 18975 2019 114 16972 2080 122 14790 2113 130 12565 2130 137
50 78.8 20746 2155.6 117 18534 2217.3 126 16121 2262 133 13617 2286.3 140
55 87.9 22569 2300 121 20132 2360 129 17464 2419 137 14653 2450 143
60 Hz Performance
Return gas temp. 65F, 5F sub cooling
