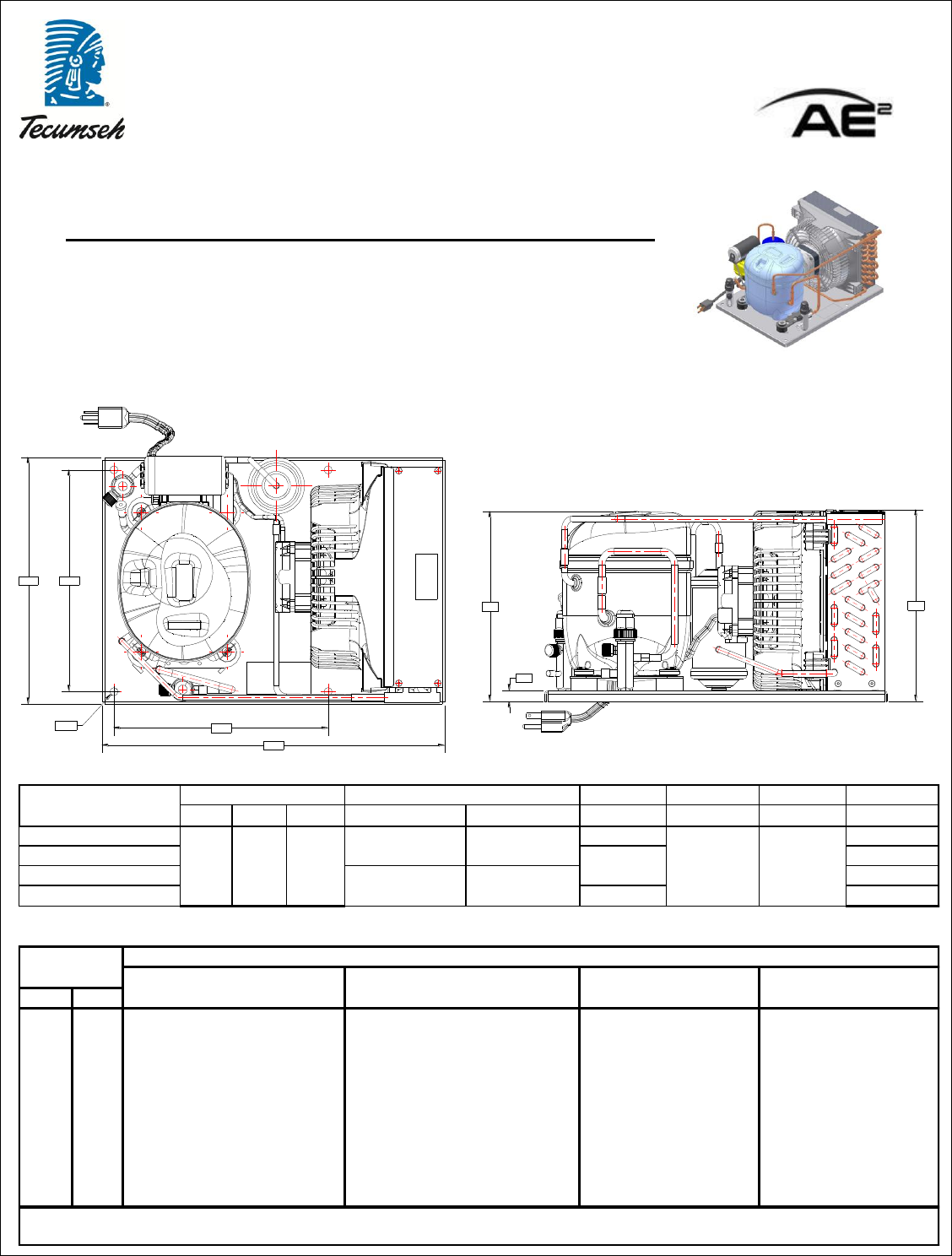

Performance Data Sheet

ManualsBrandsTecumseh ManualsCondensing UnitsTecumseh AE4430Y-XN1ASS
12
11.50 10.32
10.00
16.00
8.93
8.86
0.50
Ø0.38
L W H
Ambient Temperatures
80°F 90°F 100°F 110°F
T, °F PSIG BTUH Watts Head Cond T BTUH Watts Head Cond T BTUH Watts Head Cond T BTUH Watts Head Cond T
10 12.1 1580 310 115 95 1440 310 134 104 1330 320 156 114 1210 330 178 122
15 15.2 1790 320 119 97 1640 330 138 106 1500 340 161 115 1370 350 183 124
20 18.6 2020 340 123 98 1850 350 143 108 1690 360 166 117 1540 360 188 126
25 22.3 2260 350 127 101 2070 360 148 110 1900 380 171 119 1730 390 194 128
30 26.3 2510 370 133 103 2310 380 153 112 2120 400 177 122 1930 410 201 130
35 30.6 2780 390 138 105 2560 410 160 115 2350 420 184 124 2140 430 208 132
40 35.2 3060 410 145 108 2830 430 166 117 2600 440 191 127 2360 460 216 135
45 40.3 3360 430 152 111 3110 450 174 120 2860 470 199 129 2590 490 225 138
50 45.6 3670 450 159 114 3410 480 181 123 3140 490 207 132 2840 510 234 140
55 51.4 4000 470 167 118 3730 500 190 126 3440 520 215 135 3100 550 244 143
Lbs. (Kg)
Model
Dimensions, inches (mm)
Line Connections
Pumpdown
AirFlow
Oil Ch.
Gross weight
Liquid
90% @90
o
F
CFM
Oz.
n/a
190
9.5
38.1 (17.3)
AE4430Y-XN1ASB
1.83
38.7 (17.6)
AE4430Y-XN1ASC
1/4" Valve Sweat
AE4430Y-XN1ASK
16
(406)
11.5
(292)
8.9
(226)
1/4" Sweat
Performance @ 60 Hz, Return gas 65
o
F, SubCooling 5
o
F
39.5 (17.9)
AE4430Y-XN1ASS
n/a
38.9 (17.6)
Factory charge 20 PSIG dry air, MUST BE EVACUATED
Evaporator
CELSEON
®
LOW PROFILE
CONDENSING UNIT
Model AE4430Y-XN1ASK, -SB, -SC, -SS
BOM 32F479-39S, -49S, -59S, -69S
Air Cooled 1/4 HP
Application High Temp
Refrigerant R134a
Volts-Hz-Ph 208/230-60-1
AE4430Y-XN1AS(x)_REL
TPC - September 4, 2014
