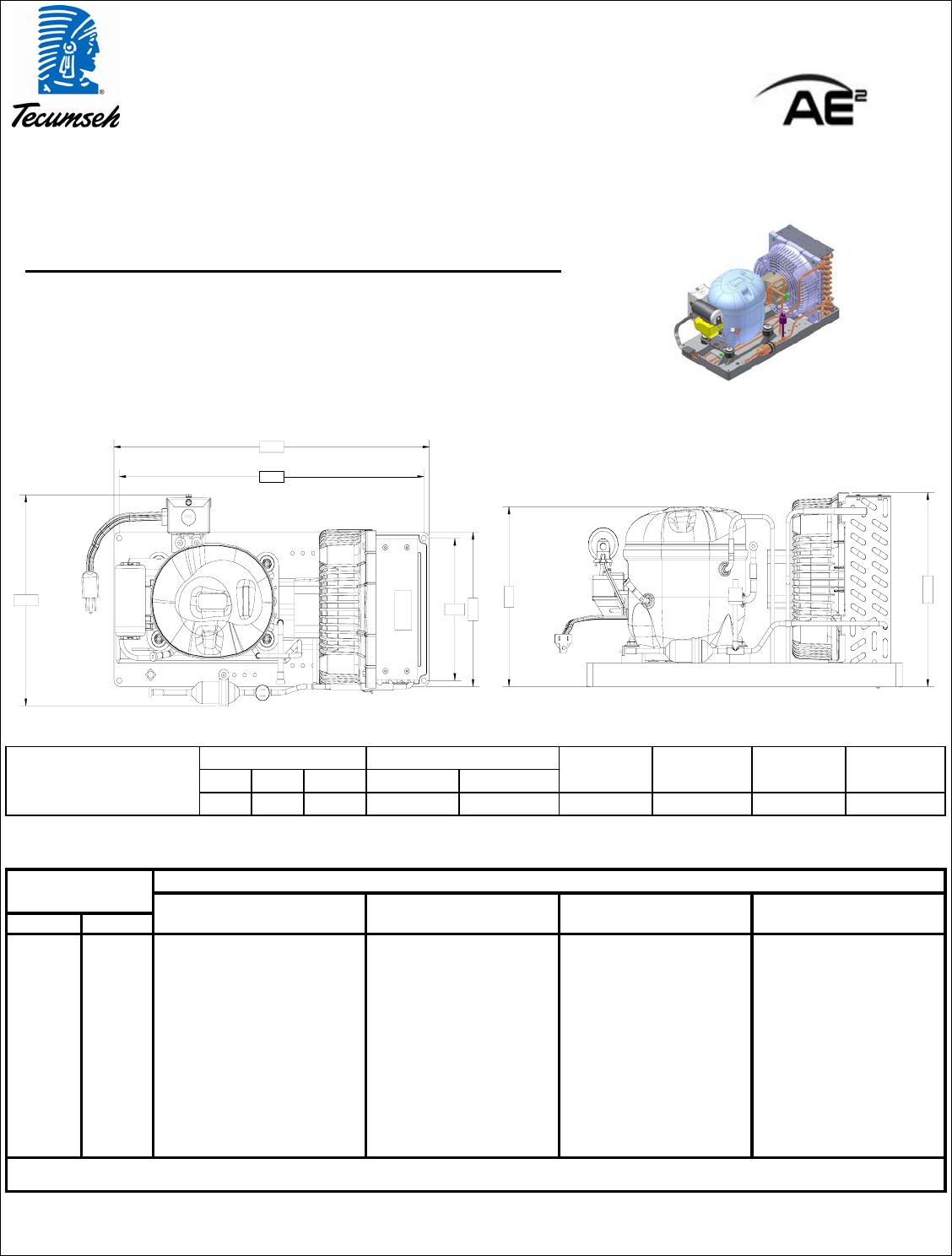

Performance Data Sheet

8.25
7.60
19.00
18.35
10.37
9.61
11.27
LW H
19.00 11.27 10.37
Ambient Temperatures
80°F 90°F 100°F 110°F
T, °F PSIG BTUH Watts Head Cond T BTUH Watts Head Cond T BTUH Watts Head Cond T BTUH Watts Head Cond T
-40 1.6 580 190 147 88 520 190 169 98 480 200 193 107 440 200 219 117
-35 3.6 700 210 150 90 640 210 172 99 580 210 196 109 530 220 222 118
-30 5.8 820 230 156 92 750 230 178 101 680 230 202 111 620 230 228 120
-25 8.3 950 240 161 95 860 240 184 104 780 240 208 113 710 250 235 122
-20 10.9 1070 260 167 97 970 260 190 106 880 260 214 115 800 260 241 124
-15 13.8 1250 270 165 96 1130 270 187 105 1030 270 211 114 930 280 237 123
-10 16.9 1400 280 169 98 1280 290 191 107 1160 290 215 116 1050 290 241 124
-5 20.3 1560 300 173 100 1430 300 196 109 1300 300 220 117 1180 310 246 126
0 23.9 1730 310 178 102 1590 320 201 110 1450 320 225 119 1330 330 251 128
5 27.8 1910 330 184 104 1760 330 207 113 1620 340 231 121 1480 350 257 130
10 32.0 2110 340 190 106 1950 350 214 115 1800 360 238 123 1650 370 264 132
PRELIMINARY
90% @ 90
o
F
Factory charge 20 psig dry air, MUST BE EVACUATED
Maximum Refrigerant Charge: 150 gr
Performance @ 60 Hz, Return 40
o
F, SubCooling 5
o
F
5/16" 1/4"
Evaporator
Gross weight
Lbs. (kg)
39.8 (18.05)
Pumpdown Air flow Oil Ch.
AE2413U-AA1AGK
Line connectionsDim. Enclosure (inch)
SCFM
170 9.64
Oz.
---
Suction Liquid
TECUMSEH HERMETIC
CONDENSING UNIT
Model AE2413U-AA1AGK
BOM 33Y322-3
Air Cooled 1/3 HP
Application Low Temp
Refrigerant R290
Volts-Hz-Ph 150-60-1
AE2413U-AA1AGK_REL
TPC - February 25, 2014
