Reversing the Door

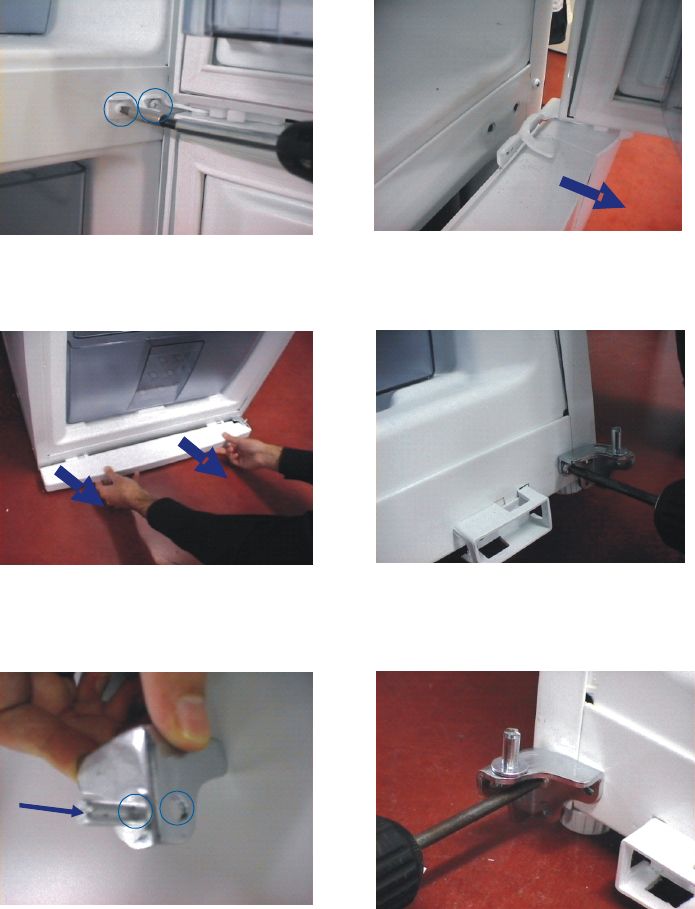

1- Unscrew the two screws which are
fixing the middle hinge. (Fig-1)
2- Dismantle the refrigerator and freezer
door from cabinet by pulling towards to
you together with the middle hinge.
(FIG-2)
3- Remove the kick plate by pulling
forward. (Fig-3)
4- Unscrew the bottom hinge fixing
screws and remove it. (Fig-4)
5- Unscrew the pin of hinge from Hole 1,
rotate the bottom hinge 90° and screw
the pin to Hole 2. (Fig-5)
6- Then screw the hinge to bottom left
side of refrigerator. (Fig-6)
Hinge pin
Hole 1
Hole 2
