Operation Manual

3. Remember to ensure that it locks into place before
releasing.
(“
(“
POSITIONING THE OUTDOOR TEMPERATURE TRANSMITTER
The Temperature Transmitter is supplied with a holder that may be attached to a
wall with the three screws supplied. Before securing
the transmitter, ensure that the 433MHz signal
(outdoor temperature readings) is properly received.
To attach to the wall, please follow the steps below:
1. Mark the wall using a pen through the holes in
the holder to obtain the exact drilling position.
2. Drill holes in the wall at the points marked.
3. Screw holder onto wall.
There is also double sided tape included with the wall mount. On smooth surfaces
this can be used instead of drilling holes. The mounting surface can, however,
affect the transmission range. If for example the unit is attached to a piece of
metal, it may then either reduce or increase the transmitting range. For this
reason, we recommend not placing the unit on any metal surfaces or in any
position where a large metal or highly polished surface is in the immediate
proximity (garage doors, double glazing, etc.). Choose a sheltered place. Avoid
direct rain and sunshine.
Before securing in place, please ensure that the Weather station can receive the
433MHz signal from the Temperature transmitter at the positions that you wish to
situate them.

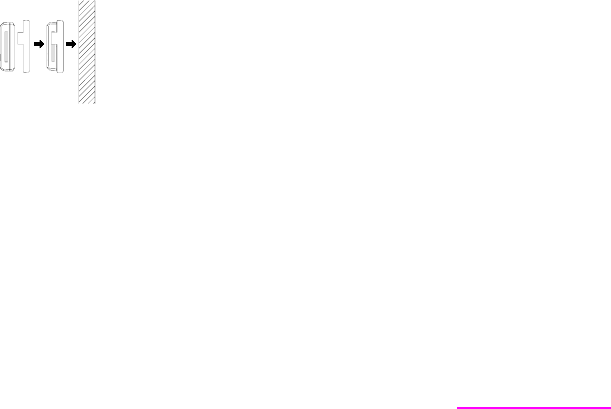

The Temperature Transmitter simply clicks in or out of the holder. When inserting
or removing the Temperature Transmitter from the wall holder please hold both
units securely.
CARE AND MAINTENANCE:
Extreme temperatures, vibration and shock should be avoided as these
may cause damage to the units and give inaccurate forecasts and
readings.
When cleaning the displays and casings, use a soft damp cloth only. Do
not use solvents or scouring agents as they may mark the LCD and casing.
Do not submerge the units in water.
Immediately remove all low powered batteries to avoid leakage and
damage. Replace only with new batteries of the recommended type.
Do not make any repair attempts to the units. Return it to its original point
of purchase for repair by a qualified engineer. Opening and tampering with
the units may invalidate its guarantee.
Do not expose the units to extreme and sudden temperature changes, this
may lead to rapid changes in forecasts and readings and thereby reduce
their accuracy.
SPECIFICATIONS:
Temperature measuring range
Indoor : -9.9ºC to +59.9ºC with 0.1ºC resolution
14.2°F to 139.8°F with 0.2°F resolution
OF.L” displayed if outside this range)
Outdoor : -29.9ºC to +69.9ºC with 0.1ºC resolution
-21.8°F to 157.8°F with 0.2°F resolution
OF.L” displayed if outside this range)
Indoor relative humidity measuring range: 1% to 99% with 1% resolution
(“- -“ displayed if outside this
range)
Indoor Temperature checking interval: every 15 seconds
Indoor Humidity checking interval : every 20 seconds
Outdoor Temperature reception : every 5 minutes
Power Supply:
Weather Station : 2 x AA, IEC LR6, 1.5V
Temperature Transmitter : 2 x AAA, IEC LR3, 1.5V
Battery life cycle : approximately 12 months (Alkaline
batteries recommended)
Dimensions (L x W x H)
Weather Station (without stand) : 94 x 27 x 160 mm
Temperature Transmitter : 59 x 21 x 65 mm
LIABILITY DISCLAIMER:
The manufacturer and supplier cannot accept any responsibility for any
incorrect readings and any consequences that occur should an inaccurate
reading take place.
This product is not to be used for medical purposes or for public information.
This product is only designed to be used in the home as indication of the
future weather and is not 100% accurate. Weather forecasts given by this
product should be taken only as an indication and not as being totally
accurate.
The specifications of this product may change without prior notice.
This product is not a toy. Keep out of the reach of children.
No part of this manual may be reproduced without written consent of the
manufacturer.
R&TTE Directive 1999/5/EC
Summary of the Declaration of Conformity : We hereby declare that this wireless
transmission device does comply with the essential requirements of R&TTE
Directive 1999/5/EC.
