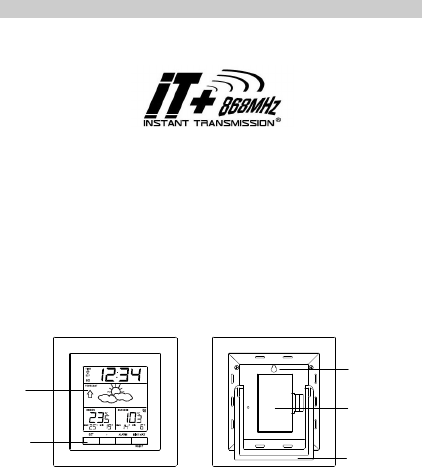

WIRELESS 868 MHz WEATHER STATION Instruction Manual INTRODUCTION: Congratulations on purchasing this Weather Station with wireless 868 MHz transmission of outdoor temperature and display of indoor temperature, weather forecast icons and weather tendency indicators. It is further featuring a DCF-77 radio controlled clock and alarm function. With four easy to use function keys, this innovative product is ideal for use in the home or office.
• • • • • • • • • • • • • DCF-77 Radio controlled time function with manual time setting options DCF time reception ON/OFF 24 hour display Alarm function with snooze Time zone +/- 12 hours Temperature display in degree Celsius (°C) Indoor and outdor temperature with MIN/MAX records Manual reset of MIN/MAX records 3 weather forecast icons with weather tendency indicator Wireless transmission at 868 MHz Signal reception interval at 4 seconds Low battery indicators Wall mounting or table standing (foldout sta
2. 3. 4. 5. Within 30 seconds, insert the batteries into Weather station (see “Install and replace batteries in the Weather station”). Once the batteries are in place, all segments of the LCD will light up briefly. Then the time (as 0:00) and the weather icon will be displayed. If these are not displayed after 60 seconds, remove the batteries and wait for at least 30 seconds before reinserting them. After inserting the batteries, the Weather station will start receiving data from the transmitter.
HOW TO INSTALL AND REPLACE BATTERIES IN THE WEATHER STATION The Weather Station uses 2 x AA, IEC LR6, 1.5V batteries. When batteries need to be replaced, the low battery icon will appear on the LCD. To install and replace the batteries, please follow the steps below: 1. Lift up the battery compartment cover. Insert batteries observing the correct polarity (see marking). Replace compartment cover. 2. 3.
BATTERY CHANGE: It is recommended to replace the batteries in all units regularly to ensure optimum accuracy of these units (Battery life See Specifications below). Please participate in the preservation of the environment. Return used batteries to an authorised depot. FUNCTION KEYS: Weather station: The weather station has four easy to use function keys.
MIN/MAX RESET key • Press and hold to reset the MIN/MAX temperature records • Activate the snooze • Exit manual setting modes LCD SCREEN AND SETTINGS: Radio controlled time reception icon Alarm icon Time Weather forecast icon Weather tendency indicator Low battery indicator (transmitter) Outdoor Reception Signal icon* Outdoor Temperature in °C Low battery indicator (weather station) Indoor Temperature in °C Max. and Min. outdoor temperature records Max. and Min.
• In normal display, the alarm icon will be shown when the alarm is turned on. When the snooze function is activated, the alarm icon will be flashing.
The time zone default is "0” hour. To set a different time zone: 1. The current time zone value starts flashing. 2. Use the + key to set the time zone. The range runs from 0, -1, -2… -12, 12, 11, 10… 2, 1, 0, in consecutive 1-hour intervals. 3. Confirm with the SET key and enter the Time reception On/Off setting. TIME RECEPTION ON/OFF SETTING flashing In area where reception of the radio-controlled time (DCF time) is not possible, the time reception function can be turned OFF.
To set the clock: 1. The hour digits start flashing in the time display section. 2. Use the + key to adjust the hours and then press SET key to go to the minute setting. 3. The minute will be flashing. Press the + key to just the minutes. 4. Confirm with the SET key and exit the setting mode. Note: The unit will still try to receive the signal despite a manual setting. When the signal is received, the manually set time will automatically be replaced by the received time.
TO ACTIVATE THE SNOOZE FUNCTION AND STOPPING THE ALARM: 1. When the alarm is sounding, press the MIN/MAX RESET key to activate the snooze function. The alarm will stop and re-activate after the snooze interval of 10 minutes. 2. To stop the alarm completely, press any keys other than the MIN/MAX RESET key.
Note: After setting up, readings for weather forecasts should be disregarded for the next 12-24 hours. This will allow sufficient time for the Weather Station to collect air pressure data at a constant altitude and therefore result in a more accurate forecast. Common to weather forecasting, absolute accuracy cannot be guaranteed. The weather forecasting feature is estimated to have an accuracy level of about 75% due to the varying areas the Weather Station has been designed for use in.
change in the weather was when it was sunny (sun icon only). Therefore, the next change in the weather will be the cloud with rain icons since the indicator is pointing downwards. Note: Once the weather tendency indicator has registered a change in the air pressure, it will remain permanently visualized on the LCD. INDOOR TEMPERATURE AND MIN/MAX RECORDS The indoor temperature and indoor MIN/MAX records are displayed on the last section of the LCD.
Note: The MIN/MAX outdoor temperature records range from -40ºC to +60ºC with 1°°C resolution. RESETTING THE INDOOR AND OUTDDOR MIN/MAX RECORDS Note: All the MIN/MAX records will be reset at the same time. 1. In normal display mode, press and hold the MIN/MAX RESET key for 3 seconds. This will reset the indoor and outdoor MIN/MAX temperatures. LOW BATTERY INDICATOR Low battery indicator is displayed on the LCD when the batteries require changing.
transmission problems may occur. The transmission range is about 100 m from the transmitter to the Weather station (in open space). However, this depends on the surrounding environment and interference levels. If no reception is possible despite the observation of these factors, all system units have to be reset (see Setting up). POSITIONING THE WEATHER STATION: The Weather Station may be hung onto wall easily or free standing. To wall mount Choose a sheltered place. Avoid direct rain and sunshine.
POSITIONING THE TEMPERATURE TRANSMITTER: The Transmitter is supplied with a holder that may be attached to a wall with the two screws supplied. The Transmitter can also be position on a flat surface by securing the stand to the bottom of the Transmitter. To wall mount: 1. Secure the bracket onto a desired wall using the screws and plastic anchors. 2. Clip the remote temperature sensor onto the bracket.
• • • • • • When cleaning the display and casings, use a soft damp cloth only. Do not use solvents or scouring agents as they may mark the LCD and casings. Do not submerge the unit in water. Special care shall be taken when handling a damaged LCD display. The liquid crystals can be harmful to user's health. Do not make any repair attempts to the unit. Return them to their original point of purchase for repair by a qualified engineer. Opening and tampering with the unit may invalidate their guarantee.
LIABILITY DISCLAIMER: • The electrical and electronic wastes contain hazardous substances. Disposal of electronic waste in wild country and/or in unauthorized grounds strongly damages the environment. • Please contact your local or/and regional authorities to retrieve the addresses of legal dumping grounds with selective collection. • All electronic instruments must from now on be recycled. User shall take an active part in the reuse, recycling and recovery of the electrical and electronic waste.
