Installation Guide

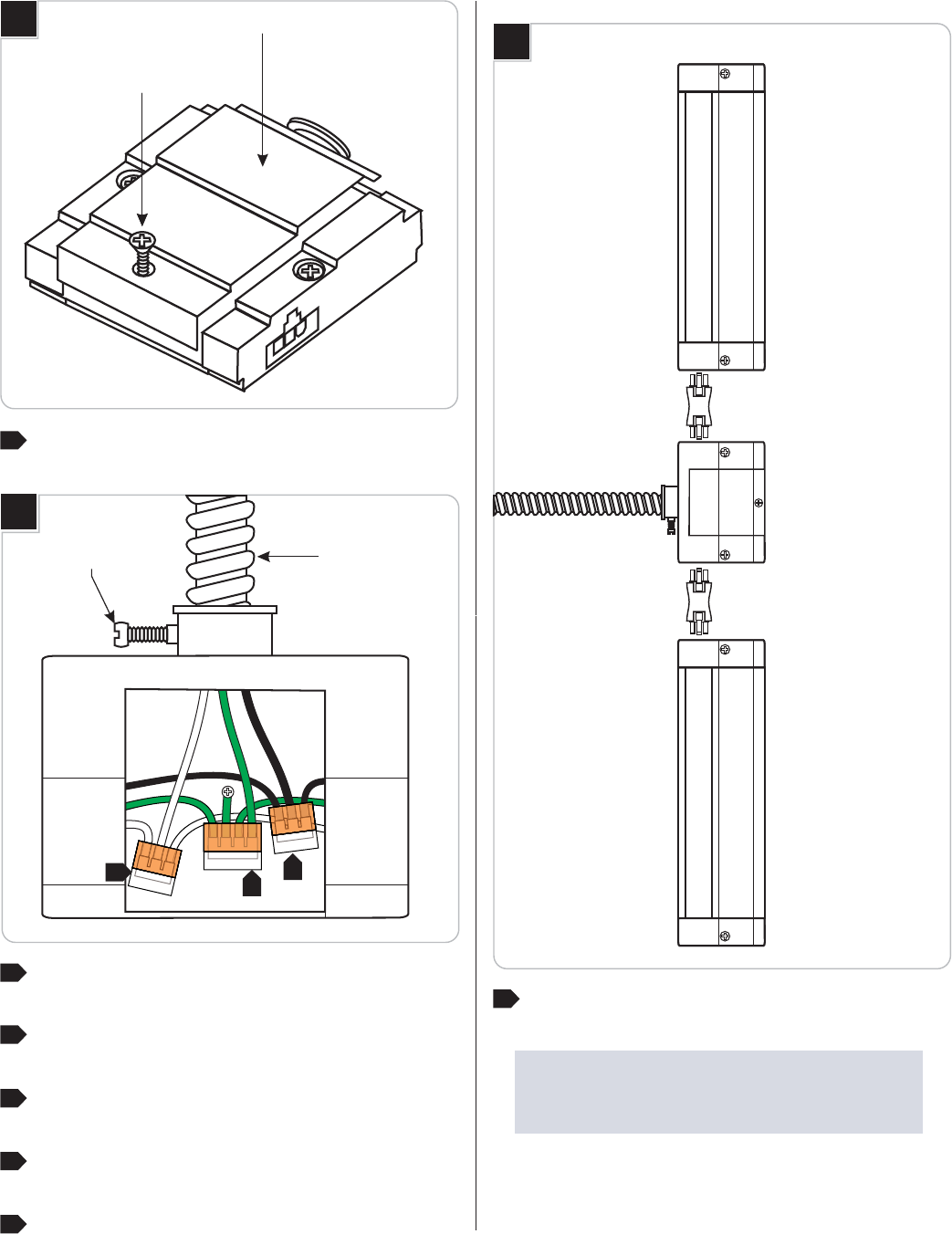

Install the Splice Box (Optional)

Loosen the center screw on the splice box and remove

the cover.

Feed the flexible conduit and the power lines into the

splice box. Secure it with the conduit screw.

Push the neutral power line wire into the wire

connector with the white splice box wires.

Push the hot power line into the wire connector with

the black splice box wire.

Connect the fixture to a suitable ground in accordance

to local electrical code.

Replace the splice box cover and secure it with the

screw.

SPLICE BOX SCREW

SPLICE BOX COVER

Using the jumper connectors, link Undercabinet units to

either or both ends of the Splice Box.

Jumper Connectors and Plug-In

Wall Feed

NOTE: Remove and/or reuse the decorative connector

cover on either end of the Undercabinet unit or Splice

Box.

FLEXIBLE CONDUITCONDUIT SCREW
