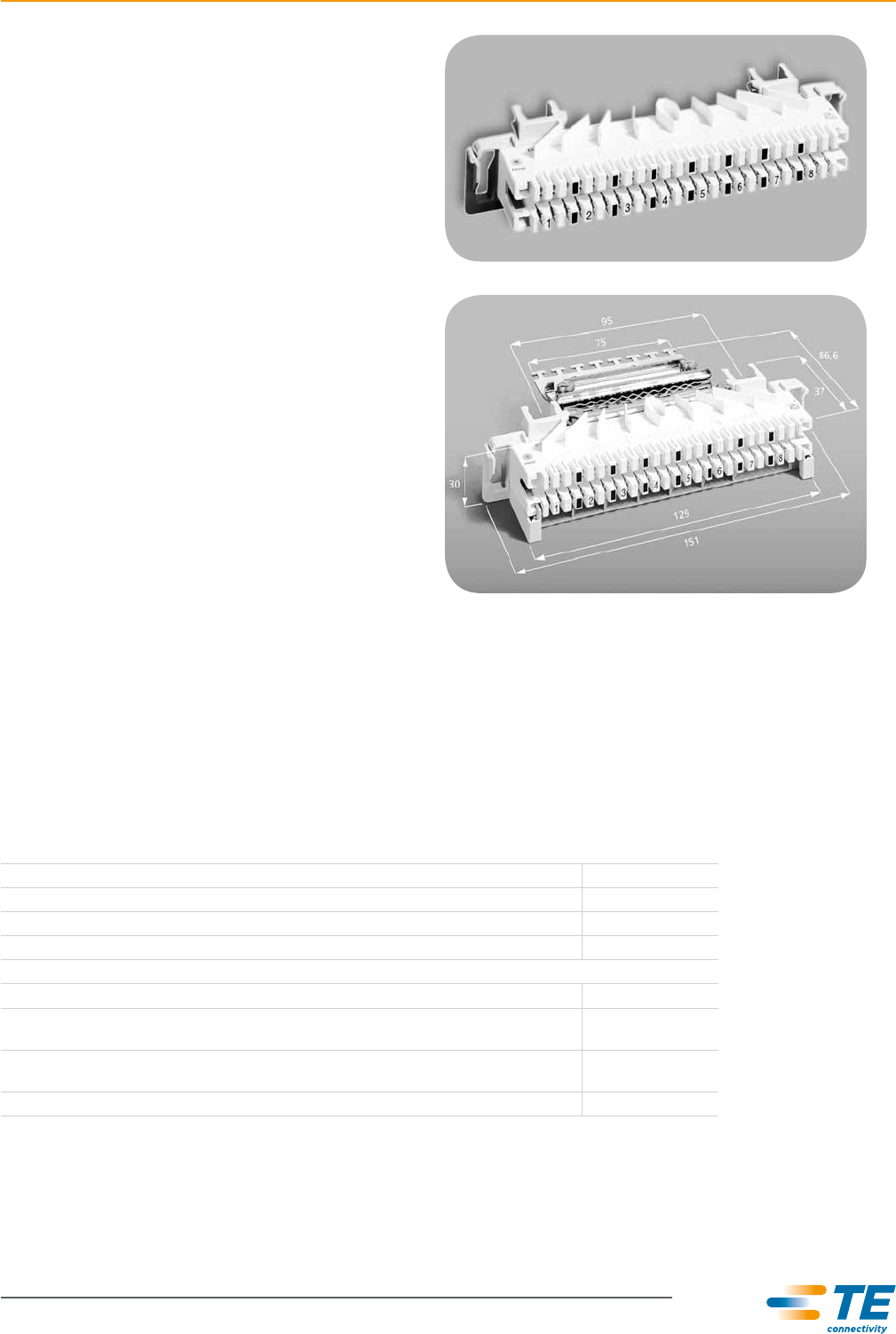

LSA PROFIL® Series 2
Disconnection Module for 2 Mbps Networks
ORDERING INFORMATION
Description Catalog Number
LSA PROFIL Series 2 8-pair disconnection module for shielded twisted pair
With left and right jumper guides 7015 1 008-01
With 3 wire guides for jumpers to the left 7015 1 004-50
With 3 wire guides for jumpers to the right 7015 1 005-50
Accessories
Hinged label holder 7015 1 003-50
Cable support with cable mounting and shield contact for 1 cable with 8 pairs
Depth: 12mm
7015 1 009-01
Cable support with cable mounting and shield contact for 8 cables with 1 pair
Depth: 3mm
7015 1 009-11
Universal cable support for 1-, 2- and 4-pair cables. Depth: 3–6mm 7015 1 009-21
FEATURES & BENEFITS
• Disconnection module for the distribution of eight
shielded pairs
• Applications include:
– Internet backbone
– GSM networks
– UMTS networks
• Complies with ITU-T G.703 recommendations
(physical/electrical characteristics of hierarchical
digital interfaces)
• Category 6-rated NEXT performance
• Compatible with a wide-range of LSA-PLUS®
Series 2 accessories
• Accessories disconnect only the Line A/Line B
contacts, while the shielding remains interconnected.
Plugs and cords are available to disconnect the shield,
should that be required
• Ports are marked on the module
DESCRIPTION
The expansion of mobile communications networks, the
introduction of new mobile phone systems (3G, UMTS, 4G,
LTE) and the steady growth of IP networks, have created
a demand for bandwidth in both access and transmission
networks. This in turn causes the extension of existing hubs
and the installation of new hubs.
The ADC KRONE PROFIL system provides a foundation for
networks served by 2 Mbps copper pairs with impedance
of 120 Ohms.
