Data Sheet Ref. LDS-DS-0800-R1

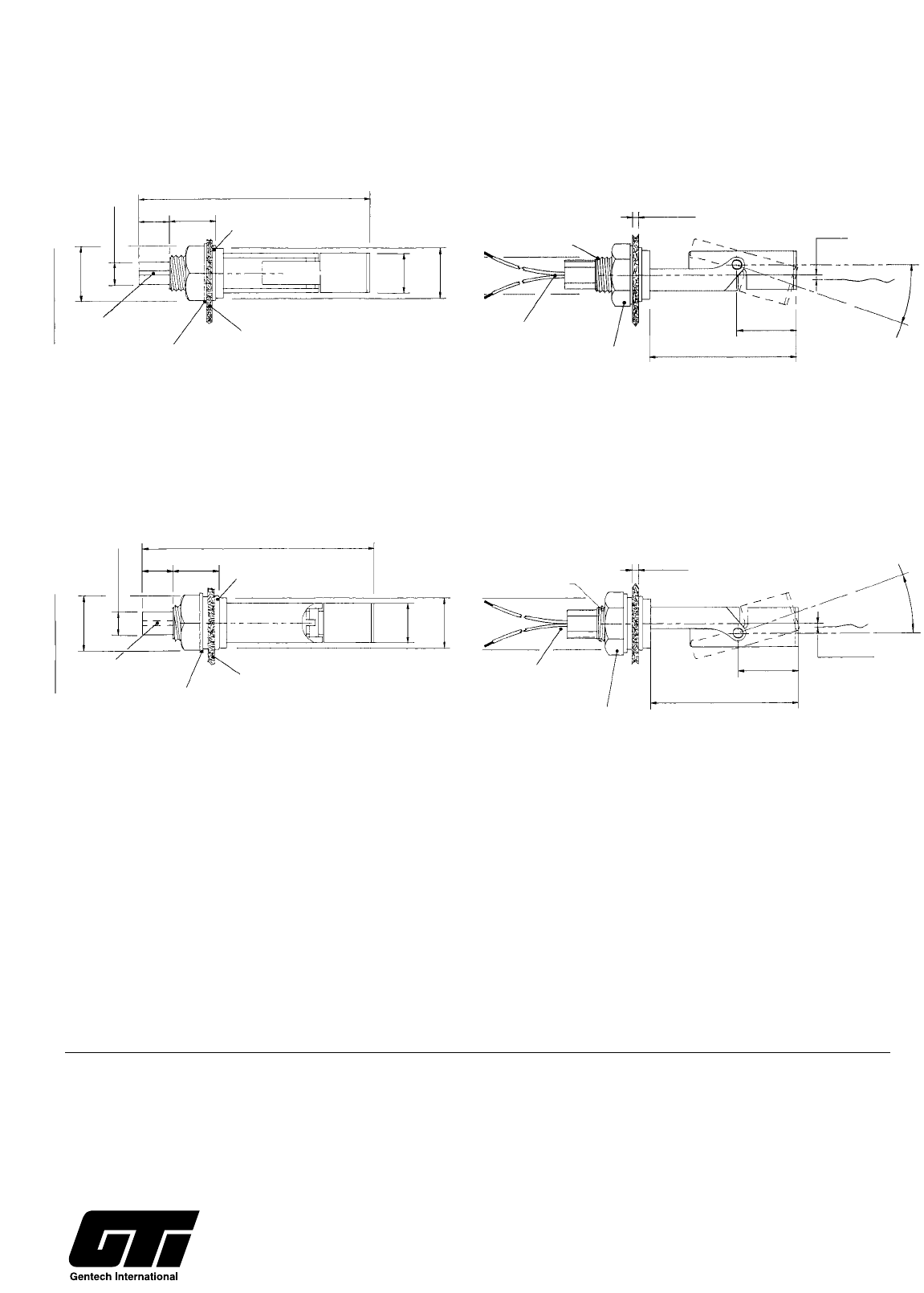

Container Wall
Position Orientation
Indicator (BOTTOM)
Friction Relief
Washer
99.7
(3.93)
ø17.3
(0.68)
4 max
Thread
M16 x 2 Pitch
63.4
(2.50)
Fixing Nut
Typical Liquid Level
for Switch Closure
(Dim.‘X’)
UL 1015 18 AWG
Cable x 0.5 metre
lengths
External Fitting
Internal Fitting
Sealing Compression
Grommet
24 A/F
(0.94)
10 A/F
(0.39)
20
(0.79)
13
(0.51)
ø21.75
(0.86)
ø23 Hole in Container
25.85
(1.02)
20º Ref. (Max. Float
Articulation)
Container Wall
Position Orientation
Indicator (TOP)
Lock Washer
99.7
(3.93)
ø17.3
(0.68)
10 max
(0.39)
Thread
M16 x 2 Pitch
63.4
(2.50)
Fixing Nut
UL 1015 18 AWG
Cable x 0.5 metre
lengths
Sealing Washer
24 A/F
(0.94)
10 A/F
(0.39)
20
(0.79)
13
(0.51)
ø21.75
(0.86)
ø16.5 Hole in Container (0.65)
25.85
(1.02)
Typical Liquid Level
for Switch Closure
(Dim.‘X’)
20º Ref. (Max. Float
Articulation)
Switch operate point (DIM ‘X’) in water
LDS8 Polypropylene with position orientation indicator TOP 0mm
with position orientation indicator BOTTOM 2mm
LDS3 Nylon 6.6 with position orientation indicator TOP 1mm
with position orientation indicator BOTTOM 3mm
Typical liquid level differential between switch operate/release 3mm.
