2 07/12

Please read Cautions and warnings and

Important notes at the end of this document.

Rated voltage 250 V AC

Rated current 16 A

Rated inductance 1.4 ... 2.2 mH

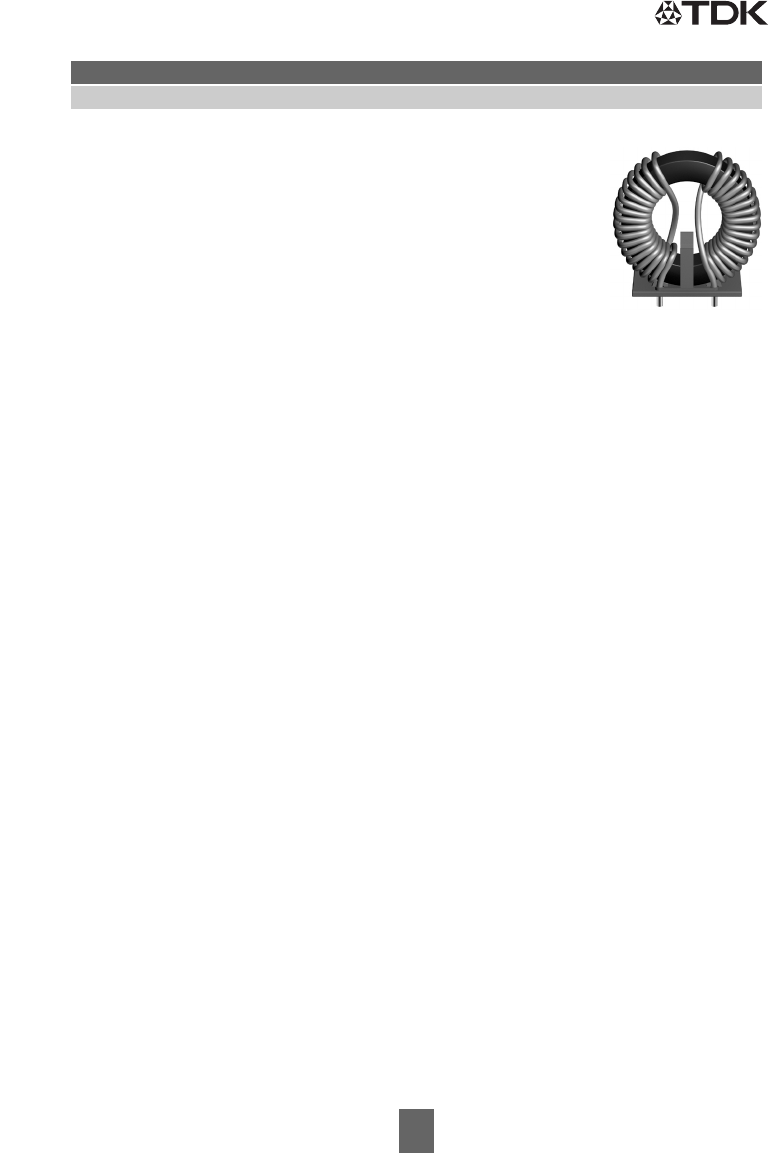

Construction

■ Current-compensated ring core double choke

■ Ferrite core

■ Polycarbonate base plate (UL 94 V-0)

■ Choke fixed on base plate with snap-in

■ Sector winding

■ Clearance 5 mm, creepage distance 5 mm

Features

■ Approx. 1% stray inductance

for symmetrical interference suppression

■ Suitable for wave soldering

■ Design complies with EN 60938-2 (VDE 0565-2)

■ RoHS-compatible

Applications

■ Suppression of common-mode interferences

■ Switch-mode applications

Terminals

■ Ends of winding wires

■ Hot-dip tinned

Marking

Manufacturer, ordering code, rated current,

rated voltage, rated inductance,

graphic symbol, date of manufacture (MM.YY)

Delivery mode

Cardboard box

B82726S2163N0**Power line chokes

Current-compensated ring core double chokes
