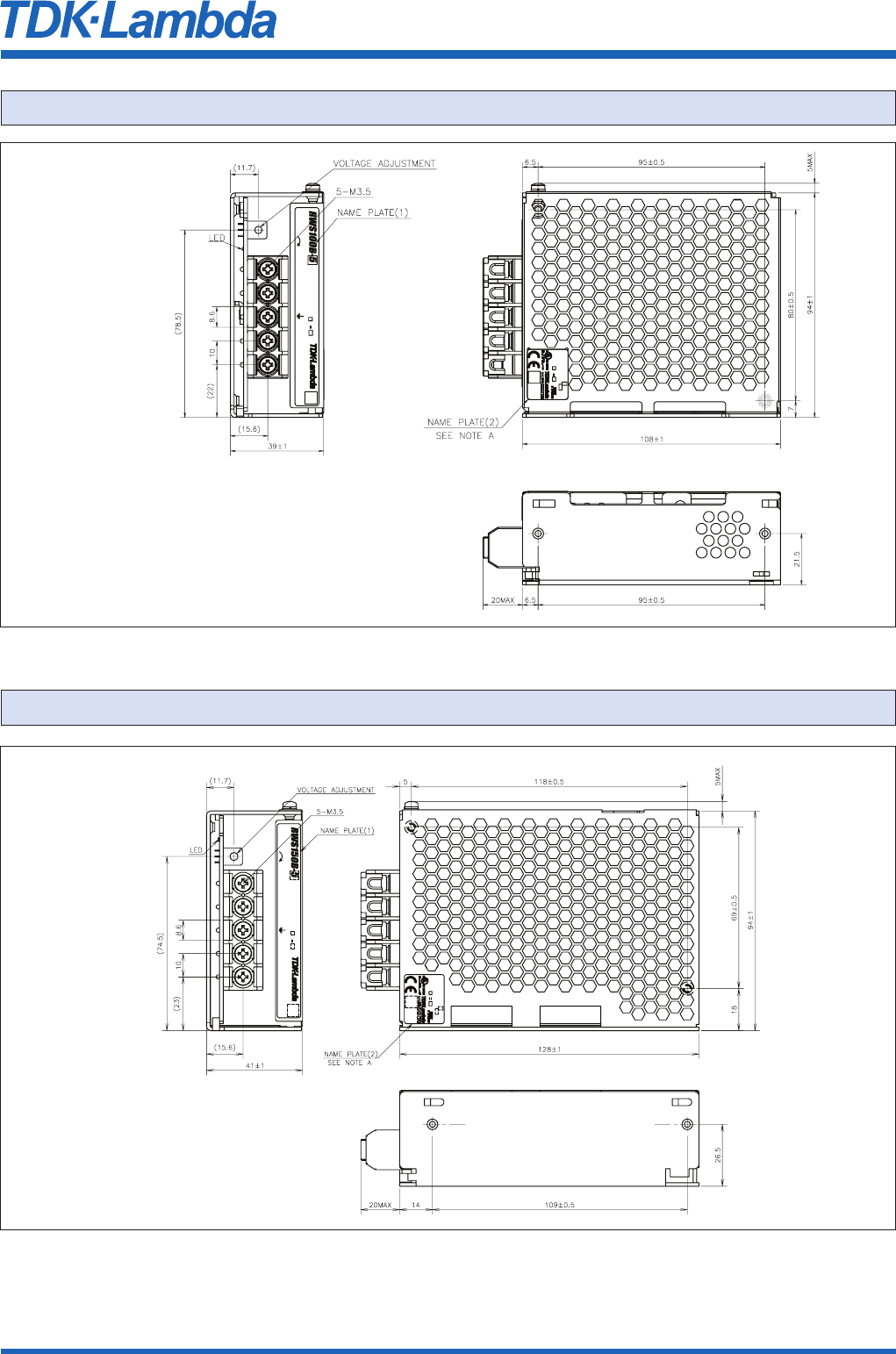

Outline Drawing RWS100B Series
Outline Drawing RWS150B Series
RWS-B Series
5
Notes:
A: Model name, input voltage range, nominal output voltage,
maximum output current and country of manufacture are shown
here in accordance with the specications.
B: 4 – M3 BR and countersink are for customer’s chassis mounting.
(Screw penetration depth 6mm max.)
Notes:
A: Model name, input voltage range, nominal output voltage,
maximum output current and country of manufacture are shown
here in accordance with the specications.
B: 4 – M3 BR and countersink are for customer’s chassis mounting.
(Screw penetration depth 6mm max.)
