i6A4W Series

4

Recommended Hole Pattern (top view)

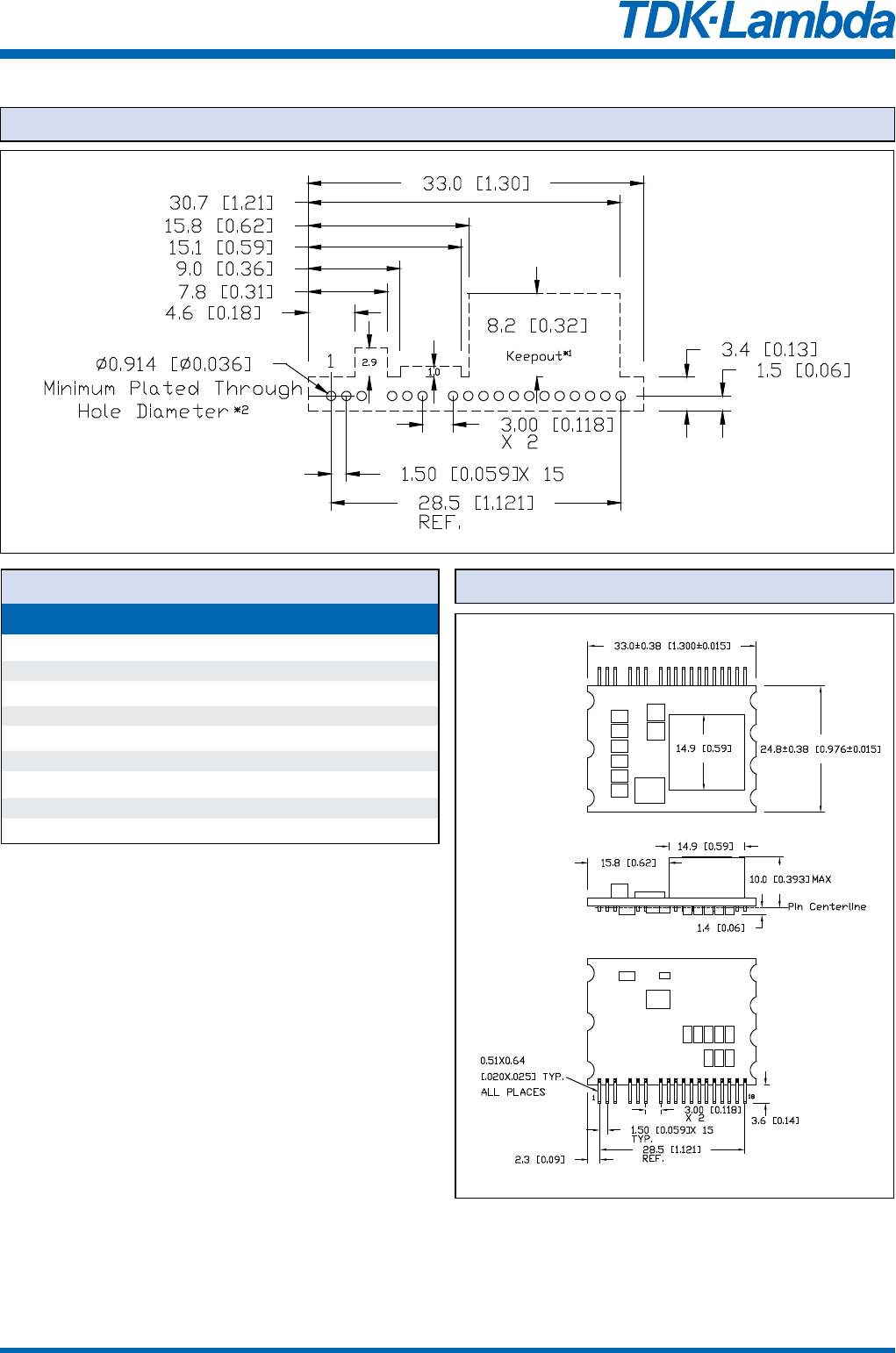

Mechanical Speciﬁ cation (SIP Style)

PIN Function PIN Function

1 VIN (+) 10 TRIM

2 VIN (+) 11 VOUT (-)

3 VIN (+) 12 VOUT (-)

4 VIN (-) 13 VOUT (-)

5 ON / OFF 14 SENSE (+)

6 MS (Option) 15 VOUT (+)

7 Sync (Option) 16 VOUT (+)

8 SEQ (Option) 17 VOUT (+)

9 PWR GOOD (Option) 18 VOUT (+)

Pinout

Mechanical Speciﬁ cation
