Data Sheet

i6A4W Series
3

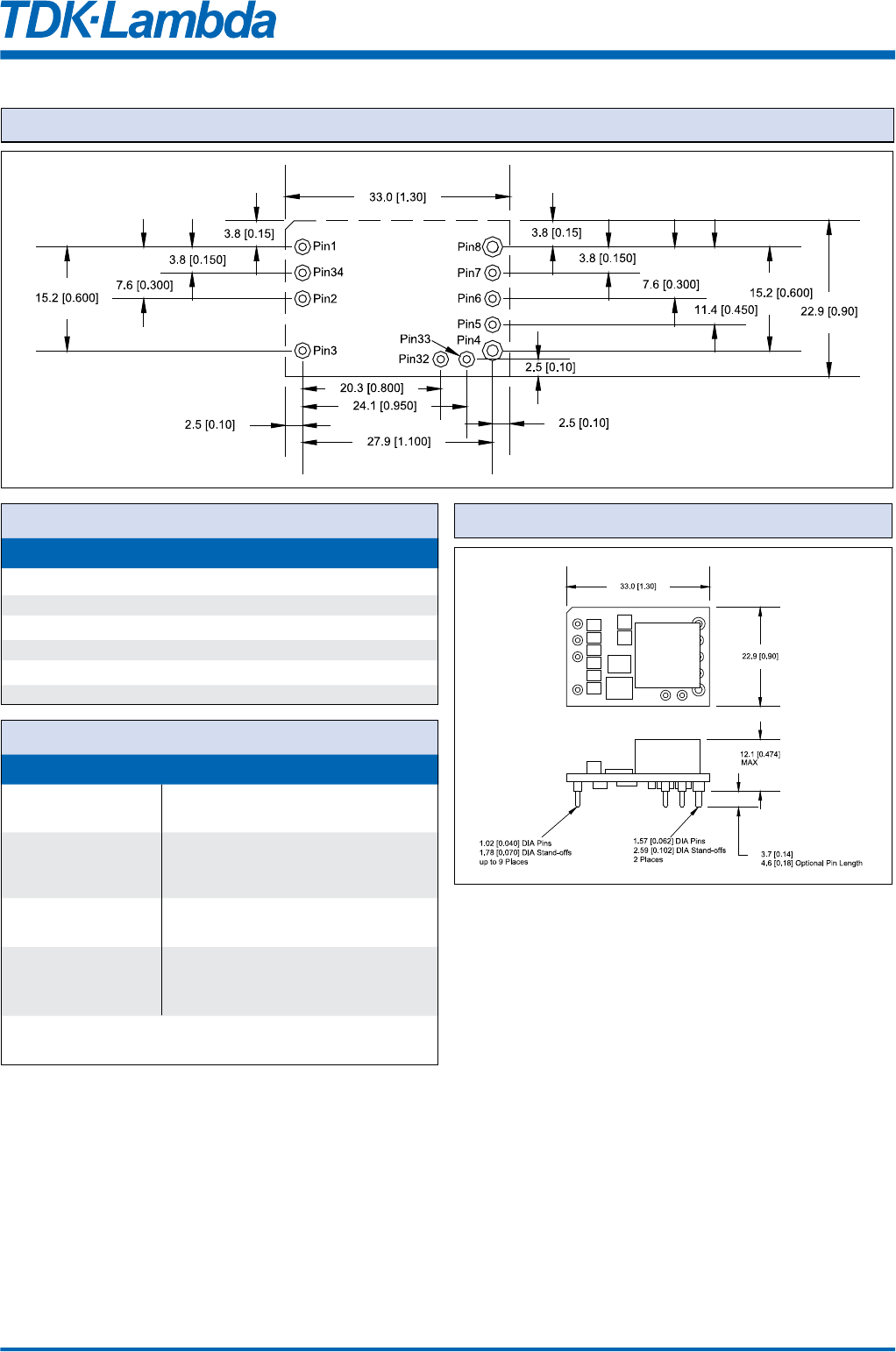

Recommended Hole Pattern (top view)
Mechanical Specifi cation (DIP Style)
PIN Function PIN Function
1 VIN (+) 7 SENSE (+)
2 ON / OFF 8 VOUT (+)
3 VIN (-) 32 Sync (Option)
4 VOUT (-) 33 MS (Option)
5 PWR GOOD (Option) 34 SEQ (Option)
6 TRIM
Evaluation kit part # Contents
i6A20A-001-EVK-S1PX Populated with one piece of
i6A4W020A033V-001-R
i6A20A-001-EVK-S1CC Populated with one piece of
i6A4W020A033V-001-R
to set for constant current operation
i6A10A-001-EVK-S1PX Populated with one piece
i6A4W010A033V-001-R.
i6A10A-001-EVK-S1CC Populated with one piece
i6A4W010A033V-001-R set
for constant current operation.
User manual available at I6A4W technical fi les in our website, contact
technical support for more details on constant current version.
Pinout
Evaluation Boards (DIP Version)
Mechanical Specifi cation
