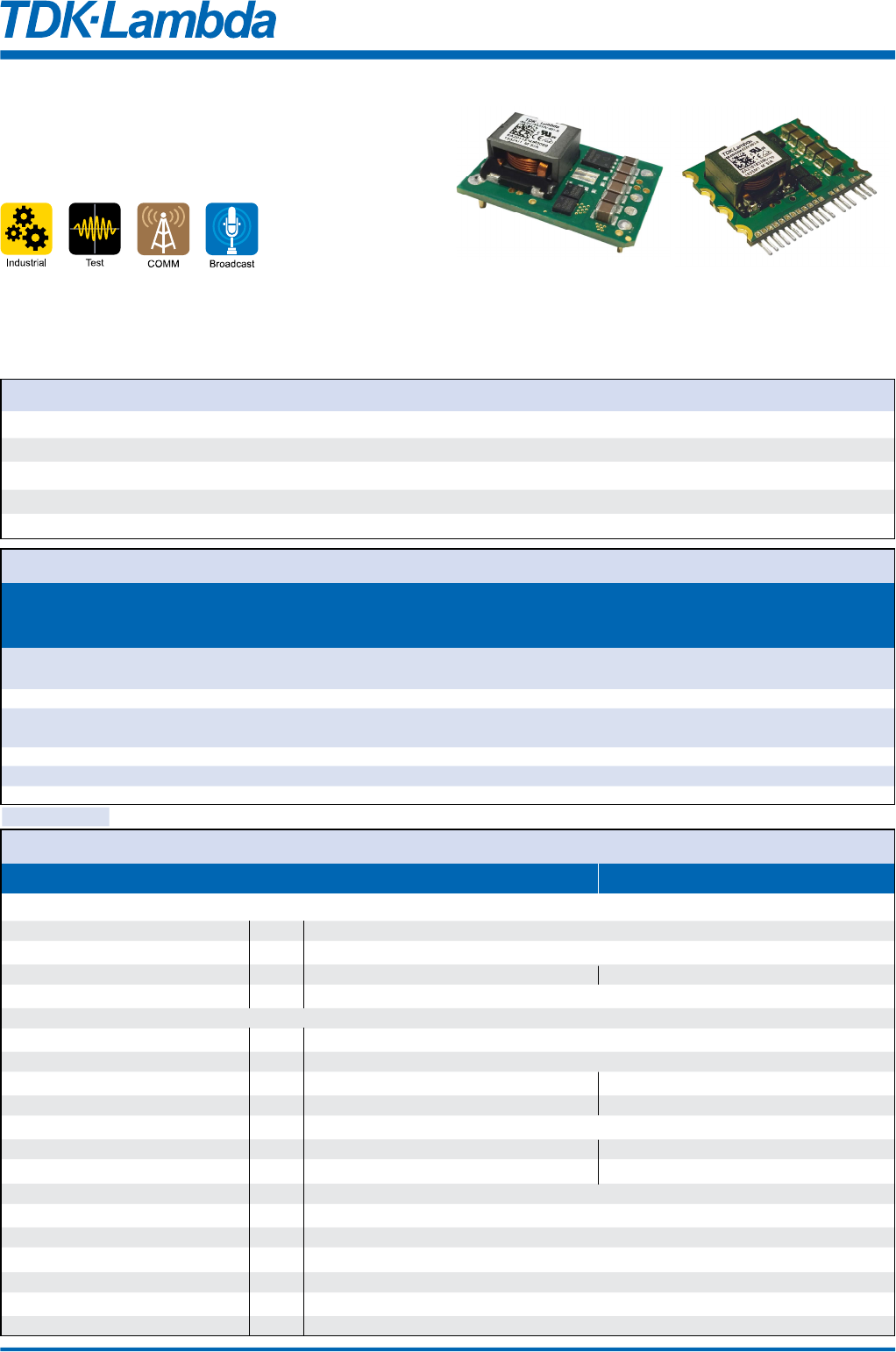

Data Sheet

i6A4W Series
250W, 9-53V Input
Non-isolated DC-DC Converters
i6A4W Series
1
Features Benefi ts
The i6A 4W series of non-isolated step-down converters are ideal for creating additional high current output voltages from a single output 12V, 24V or 48V
AC-DC power supply. The highly effi cient i6A 4W series accepts a very wide DC input and has a wide output adjustment range, with a choice of 1/16th brick
footprint or SIP package.
• Up to 250W in a 1/16th brick or SIP package
• Very high Effi ciency up to 97%
• Wide Output Adjustment 3.3 to 15V & 3.3 to 40V
• Minimal External Components Needed
• Low Airfl ow With Minimal Derating Requirements
• Very High Power Density
• Easier Thermal Management
• One Part For Multiple Applications
• Less Board Area Required
• Easier To Cool In End System
Specifi cation
Model i6A4W010A033V i6A4W020A033V
Input
Input Voltage range Vdc 9 to 53V (Turn on at 10V or greater)
Input Current A 20A maximum
Effi ciency - 94 - 97.5 90 - 97.0
Safety Agency Certifi cations - IEC/UL/CSA/EN 60950-1, CE Mark (LVD and RoHS)
Output
Output Voltage Tolerance % ±4
Switching Frequency kHz 400
Line Regulation % 0.3 0.4
Load Regulation % 0.9 1.2
External Load Capacitance uF 0 - 1500
Output Ripple & Noise (pk-pk) mV 50 20
Overcurrent Protection Threshold A 15 27
Overvoltage Protection V None
Remote On / Off See options table
Remote Sense (+) Sense, compensating up to 5% of output voltage
Power Good Optional (Full Feature Version)
Sync & Sequencing - Optional (Full Feature Version)
Parallel Operation - Not possible
Series operation - Not possible
us.tdk-lambda.com/lp/products/i6a-series.htm
www.emea.tdk-lambda.com/i6a
Model Selector
Preferred model
Output Max Max Positive Negative Full Package
Model Voltage Current Power Logic Logic Feature
(V)
(1)
(A) (W) On/Off On/Off
i6A4W010A033V-001-R 3.3 to 40 10 250 - Yes - DIP
i6A4W010A033V-0S1-R 3.3 to 40 10 250 - Yes - SIP
i6A4W020A033V-000-R 3.3 to 15 20 250 Yes - - DIP
i6A4W020A033V-001-R 3.3 to 15 20 250 - Yes - DIP
i6A4W020A033V-0S1-R 3.3 to 15 20 250 - Yes - SIP
i6A4W020A033V-002-R 3.3 to 15 20 250 Yes - Yes DIP
i6A4W020A033V-0S3-R 3.3 to 15 20 250 - Yes Yes SIP
i6A4W020A033V-005-R 3.3 to 15 20 250 - Yes Yes
(2)
DIP
