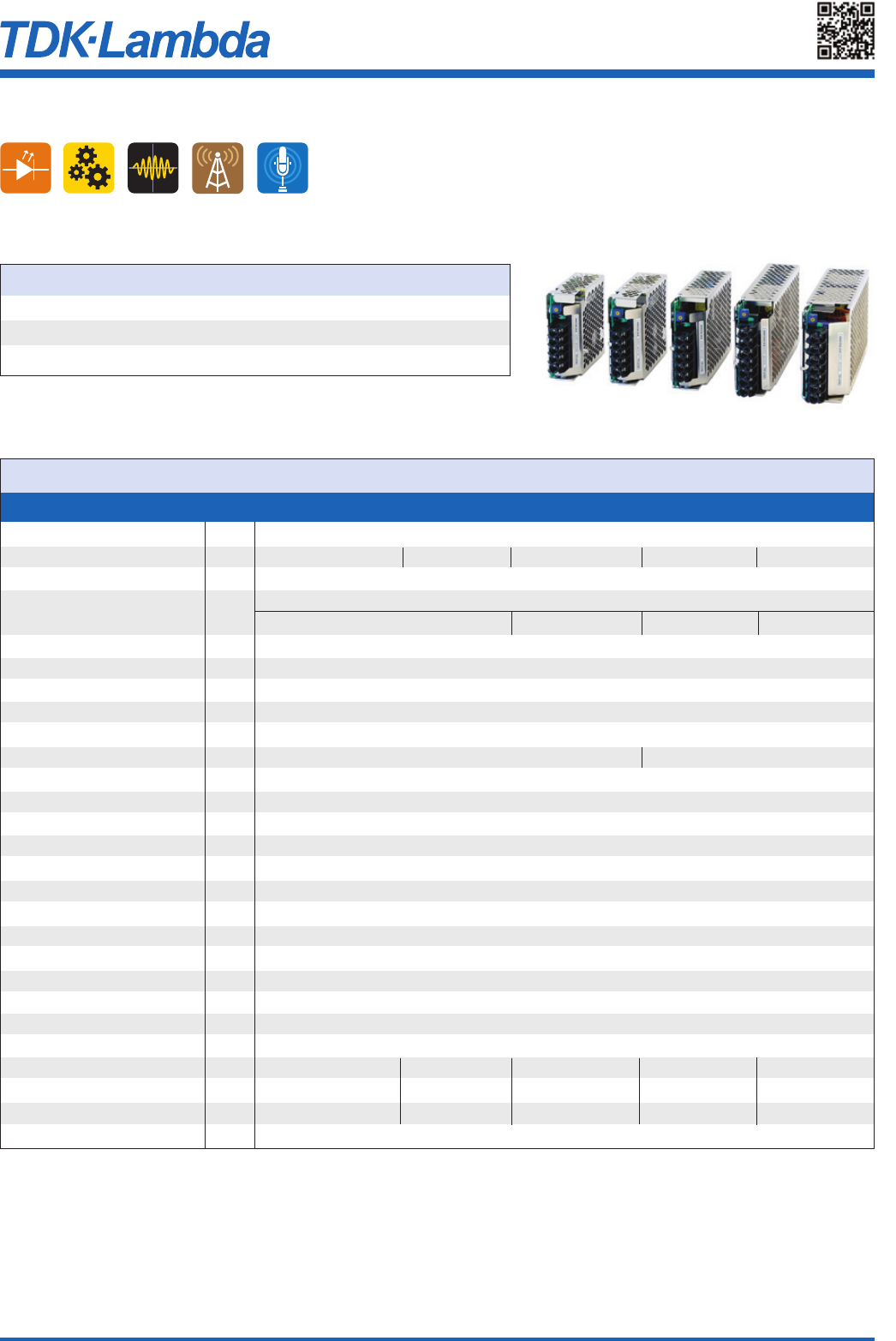

Data Sheet

HWS15A-150A Series
Single Output
Industrial Power Supplies
HWS15A-150A Series
1
www.emea.tdk-lambda.com/hws-a
Features  Benets
• Limited Lifetime Warranty • Lower Cost of Ownership
• High Efciency (up to 91%) • Easier System Cooling
• Wide Range AC Input • Supports Global Use
Specication
Model HWS15A/A HWS30A/A HWS50A/A HWS100A/A HWS150A/A
Input Voltage Range - 85 - 265VAC (47 - 63Hz) Withstands 300VAC for 5s or 120 - 370VDC*
Input Current (Typ) (1) A 0.35 / 0.2 0.65 / 0.4 0.65 / 0.35 1.3 / 0.65 1.9 / 0.95
Inrush Current (1) A 14 / 28
Power Factor -
Meets EN61000-3-2
- - 0.97/0.91 0.98/0.93 0.98/0.93
Temperature Coefcient %/°C <0.02%/°C
Overcurrent Protection % >105%
Overvoltage Protection V Yes (see table)
Hold Up Time (Typ) ms 20
Leakage Current (max) mA <0.5mA (Typ 0.2mA at 100VAC, 0.4mA at 230VAC)
Remote Sense - No Yes
Indicator - Green LED = ON
Operating Temperature (with cover) °C -10°C to +70°C, derate from 50°C to 70°C
(2)
Storage Temperature °C -30 to +85°C
Humidity (non condensing) %RH Operating: 30 - 90%RH, Non operating 10 - 95%RH
Cooling - Convection
Withstand Voltage VAC Input to Ground 2kVAC, Input to Output 3kVAC, Output to Ground 500VAC for 1 min.
Isolation Resistance M Ω >100M at 25°C & 70%RH, Output to Ground 500VDC
Vibration (non operating) - 10 - 55Hz (1 minute sweep), 19.6m/s
2
constant X, Y, Z 1 hour
Shock m/s
2
< 196.1 m/s
2
Safety Agency Approvals - UL60950-1, CSA60950-1, EN60950-1, EN50178, UL508, CE Mark
Line Dip - Complies with SEMI F47 (200VAC line only)
Conducted & Radiated EMI - EN55011 / EN55022-B, FCC-B, VCCI-B
Immunity - IEC61000-4-2, -3, -4, -5, -6, -8, -11; IEC61000-6-2
Weight (Typ) g 190 240 300 470 520
Size (HxWxD) (with cover) mm 31.5 x 82 x 80 31.5 x 82 x 95 31.5 x 82 x 120 33 x 82 x 160 42 x 82 x 160
MTBF (3) hours 12,116,851 8,169,868 3,726,622 2,963,512 2,676,081
Warranty - Limited Lifetime Warranty (See TDK-Lambda’s terms and conditions)
,QGXVWULDO 7HVW
&RPP
%URDGFDVW
/('
Notes:
* Safety certied for AC input only
(1) 100/200VAC.
(2) Derating varies with model. Please refer to individual model specication for derating graphs.
(3) According to Telcordia document SR-332, issue 3, “Reliability Prediction Procedure for Electronic Equipment”
Conditions: ambient temp. 25deg C, 230Vac input, full load (gures shown for 24V models)
