Genesys™ Power Parallel and Series Configurations

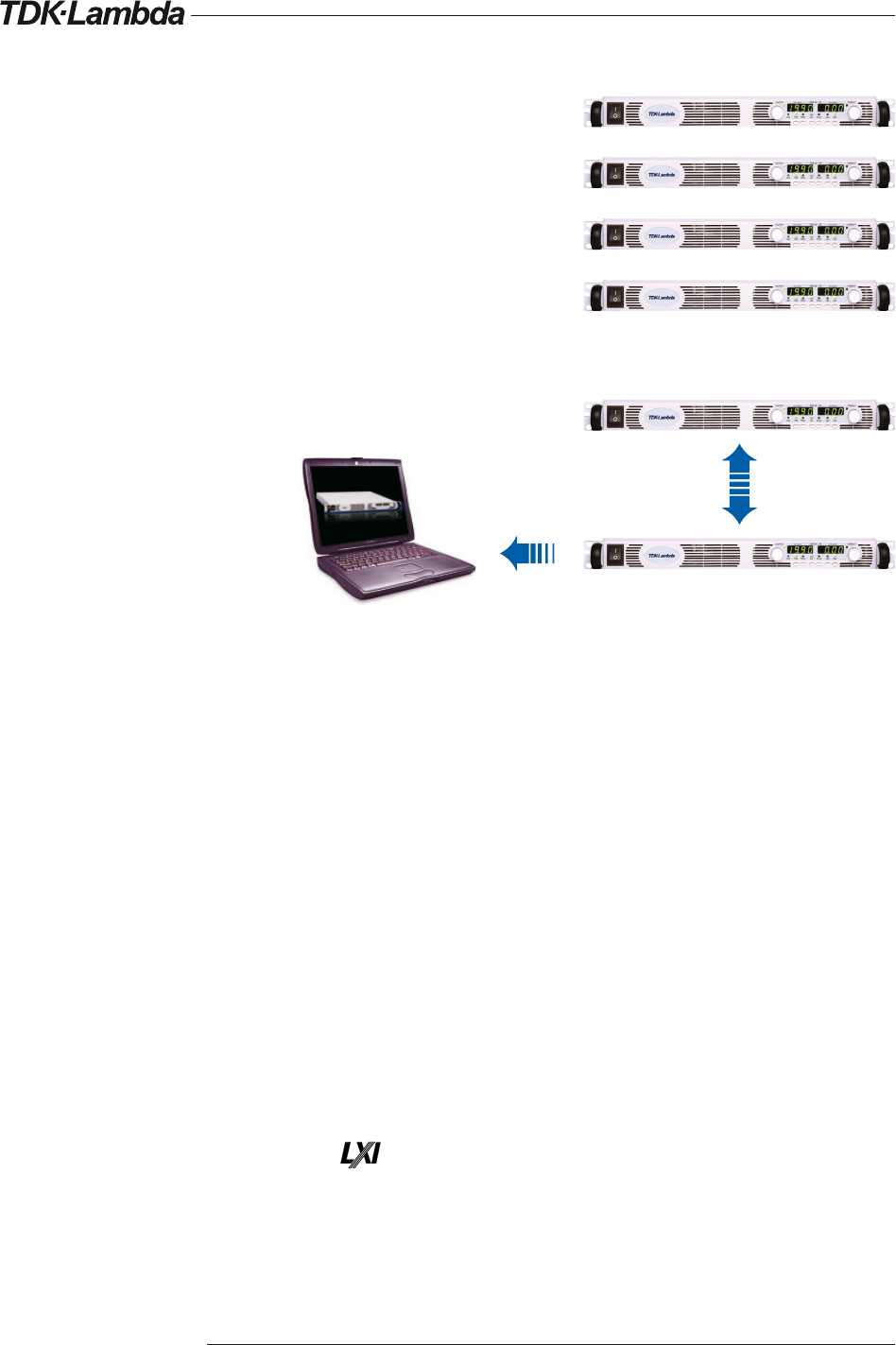

Parallel operation - Master/Slave:
Active current sharing allows up to four identical units to be connected
in an auto-parallel configuration for four times the output power.
In Advanced Parallel Master/Slave Mode, total current is programmed
and reported by the Master, Up to four supplies act as one.
Series operation
Up to two units may be connected in series to increase the output
voltage or to provide bipolar output. (Max 600V to Chassis Ground).
Remote Programming via RS-232 & RS-485 Interface
Standard Serial Interface allows chain control of up to 31 power supplies
on the same bus with built-in RS-232 & RS-485 Interface.
Programming Options (Factory installed)
Digital Programming via IEEE
Multi-Drop Interface P/N: IEEE
• Allows IEEE Master to control up to 30 slaves over RS-485 daisy-chain
• Only the Master needs be equipped with IEEE Interface
• IEEE 488.2 SCPI Compliant
• Program Voltage • Program Current
• Measure Voltage • Measure Current
• Over Voltage setting and shutdown • Current Foldback shutdown
• Error and Status Messages
Isolated Analog Programming
Four Channels to Program and Monitor Voltage and Current.
Isolation allows operation with floating references in harsh electrical environments.
Choose between programming with Voltage or Current.
Connection via removable terminal block: Phoenix MC1,5/8-ST-3.81.
• Voltage Programming, user-selectable 0-5V or 0-10V signal. P/N: IS510
Power supply Voltage and Current Programming Accuracy ±1%
Power supply Voltage and Current Monitoring Accuracy ±1.5%
• Current Programming with 4-20mA signal. P/N: IS420
Power supply Voltage and Current Programming Accuracy ±1%
Power supply Voltage and Current Monitoring Accuracy ±1.5%
LAN Interface Compliant to Class C P/N: LAN
• Meets all LXI-C Requirements • VISA & SCPI Compatible
• Address Viewable on Front Panel • LAN Fault Indicators
• Fixed and Dynamic Addressing • Auto-detects LAN Cross-over Cable
• Compatible with most standard Networks • Fast Startup
6 | GENESYS™ | 750-1500kW
