3.2.4. Wi-Fi protect setup
Wi-Fi Protect Setup (WPS) function can let you create a safety network easily. You can through PIN Input
Config (PIN) ‟or ‟Push Button (PBC)‟to encrypt your network. You only need to push the WPS
button in the router which support WPS function and click the functions in this adapter, then
the router will be encrypted to WPA2-AES mode automatically.
Note:
 The status of WPS in the router must be enabled
 If you have configured encryption mode in your router, then when you use this WPS function, please
configure encryption mode to NONE, then it will be encrypted to WPA2-AES mode
automatically. If you don‟t want to change your encryption mode, then when you use this function,

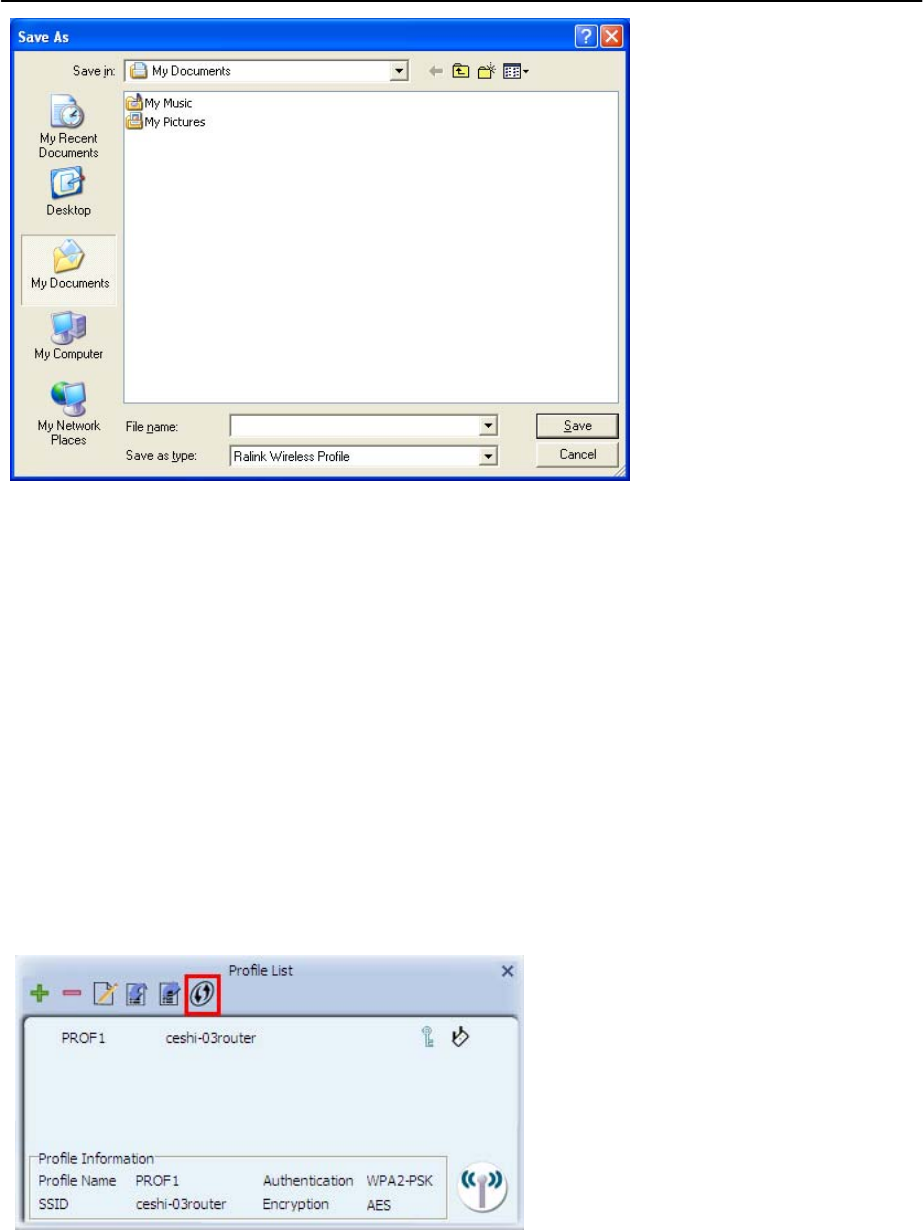

the router will be encrypted to the mode that you have configured Click the “Red” button to
add a WPS Profile in profile list;
Method 1: PBC
Select “Push-Button” in WPS Method then click next.
