Studio Konnekt 48

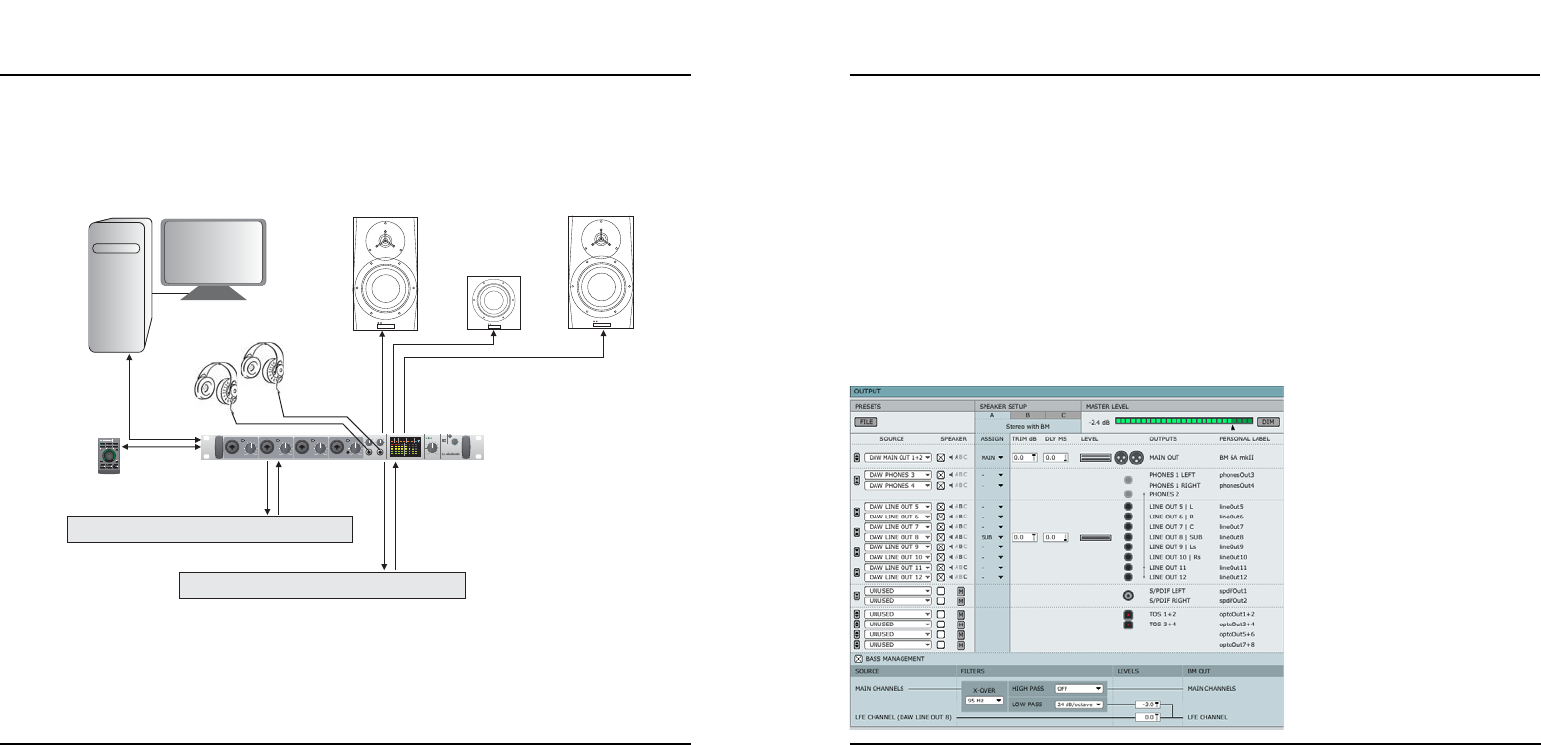

FFeeaattuurreess iinn tthhiiss sseettuupp
• One stereo set of active speakers and one active Sub.
The sub is fed with both the LFE channel signal and
lo-freq signal from the main channels via bass
management.
• Two separate sends for monitoring on headphones via
AUX 1 and AUX 2 sends on the TC Near mixer page
• Computer with TC Near control panel and DAW
application
• Integrated external digital reverb via S/PDIF and the
Integrator plug-in*
• Integrated external analog filter via analog line I/O
* Please refer to the instructions for the Integrator plug
in on the following pages.
SSeettttiinngg uupp
• Select DAW Main Out 1+2 as source. Set
speaker to “on” and assign to main.
• Select DAW Line Out 8 as source and
assign this channel as “SUB”.
• We have set a typical X-over frequency
of 95 Hz. Low-pass is set to 24 dB/oct
and High-pass to off.
SETUP EXAMPLES - BASS MANAGEMENT & INTEGRATION SETUP EXAMPLES - BASS MANAGEMENT & INTEGRATION
2524
REVERB 4000
ANALOG FILTER
ACTIVE SPEAKERS
MAIN L
MAIN R
SPDIF
LINE 5 OUT
FIREWIRE
M.MIX
PANEL
MIC1
CH5/6
USER4 USER5 USER6
AUX1
ABC
USER1 USER2 USER3
AUX2
(P1-P3)
TUNER
studiokontrol
MIC
EFFECT
MIC2
CH7/8
TALK
SPDIF
DAW
MASTER CH on/off
PROG
SHIFT
P1 P2 P3
STUDIO CONTROL
CAT 5
studiokonnekt48
output
maxmin
mic/inst input
mic/inst input mic/inst input mic/inst input
-20dB -20dB -20dB -20dBOFF OFF OFF OFF
PAD PAD PAD PAD
IMPACTII IMPACT II IMPACTII IMPACT IItechnology technology technology technology
TM TM TM TM
channel1 preamp channel 2preamp channel 3 preamp channel 4 preamp phones 1 phones 2
gain trim gain trim gain trim gain trim
max max max maxmin min min min
(ch3-4) (ch11-12)
power
48V
ONOFF
master level
valid
1-8 IN1-2 OUT1-2 3-4
ADAT SPDIF TOS MIDI
FireWire
1 2 3 4 5/6 7/8 9/10 11/12
-3
O
-6
-12
-24
-40
dB
DAW COMPUTER
WITH FIREWIRE
IN
SUB
LEFT
RIGHT
LINE 8
OUT
LINE 5 IN
