HAND VALVE REPAIR
Hand valve are an integral part of the container, and the valve bodies rarely need re-
placement. However, the handwheel and internal parts of the valves are renewable. The

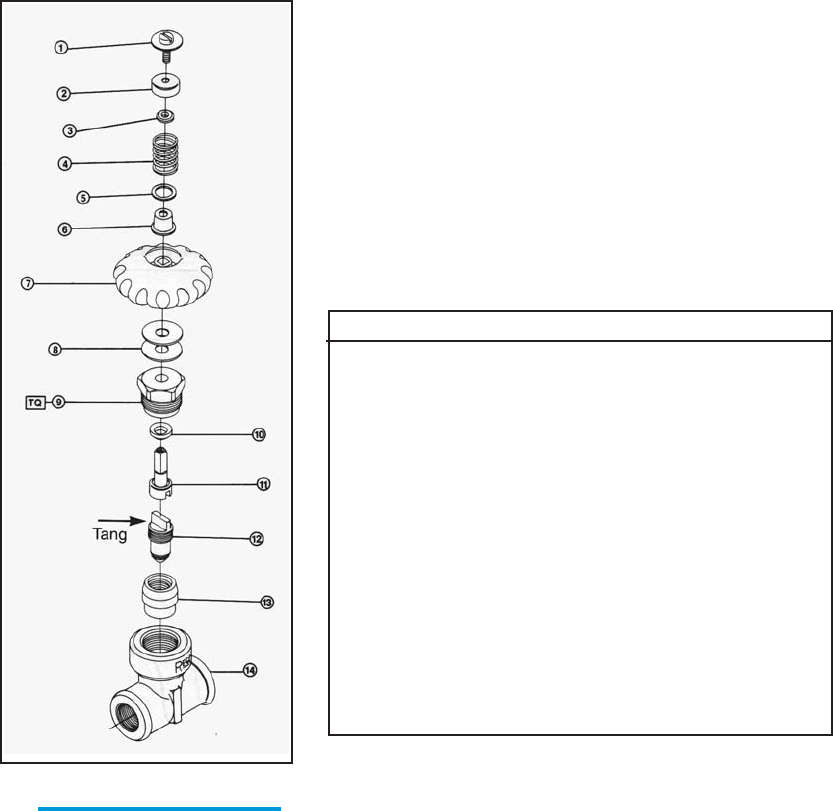

illustration below are exploded views of the valves replaceable parts used on Taylor-
Wharton liquid containers.
Valve Repair Kit
Fits: 3/8 in. or 1/2 in. Rego Globe or 3/8 in. Sherwood valves.
KIT PARTS - KIT P/N 1750-9C35
Item No. Description Qty.
1 Screw and Washer 1
2 Spring Retainer 1
3 Retainer Washer 1
4 Spring 1
5 Seal Washer 1
6 Seal 1
7 Handwheel 1
8 Bonnet Washer 2
9 Bonnet 1
10 Stem Gasket 1
11 Stem 1
12 Seat Assembly 1
13 Bushing 1
14 Body *
TQ Torque 80 ft. lbf (11 kgf m) 1
*Not available as a repair part
Valve Disassembly Instructions
1. Open valve by turning handwheel counterclockwise as far as it will go to release any
trapped gas in the system.
2. Using a screwdriver, remove Handwheel Screw and Washer by turning counterclock-
wise to allow removal of Spring Retainer, Washer, Spring, Seal Washer, Seal, Handwheel
and Bonnet Washers. Discard these parts.
3. Using a large adjustable wrench to hold valve body, remove Bonnet by turned counter-
clockwise with a 15/16 in. socket wrench that is capable of developing at least 80 ft. lbf
(11 kgf m) torque.
4. Remove the following parts from the valve body and discard – Stem, Stem Gasket,
Seat Assembly and Bushing.
5. Inspect body and clean if necessary; be sure interior and seal areas are free from dirt,
Hand Valve-
Exploded View
