Getting started
Mains Power
Cable
!
1
LAN/
Ethernet
Monitor
(Audio from HDMI 1 or
Line Out 1–2)
OPTIONAL:
Loudspeakers
Assemble your system

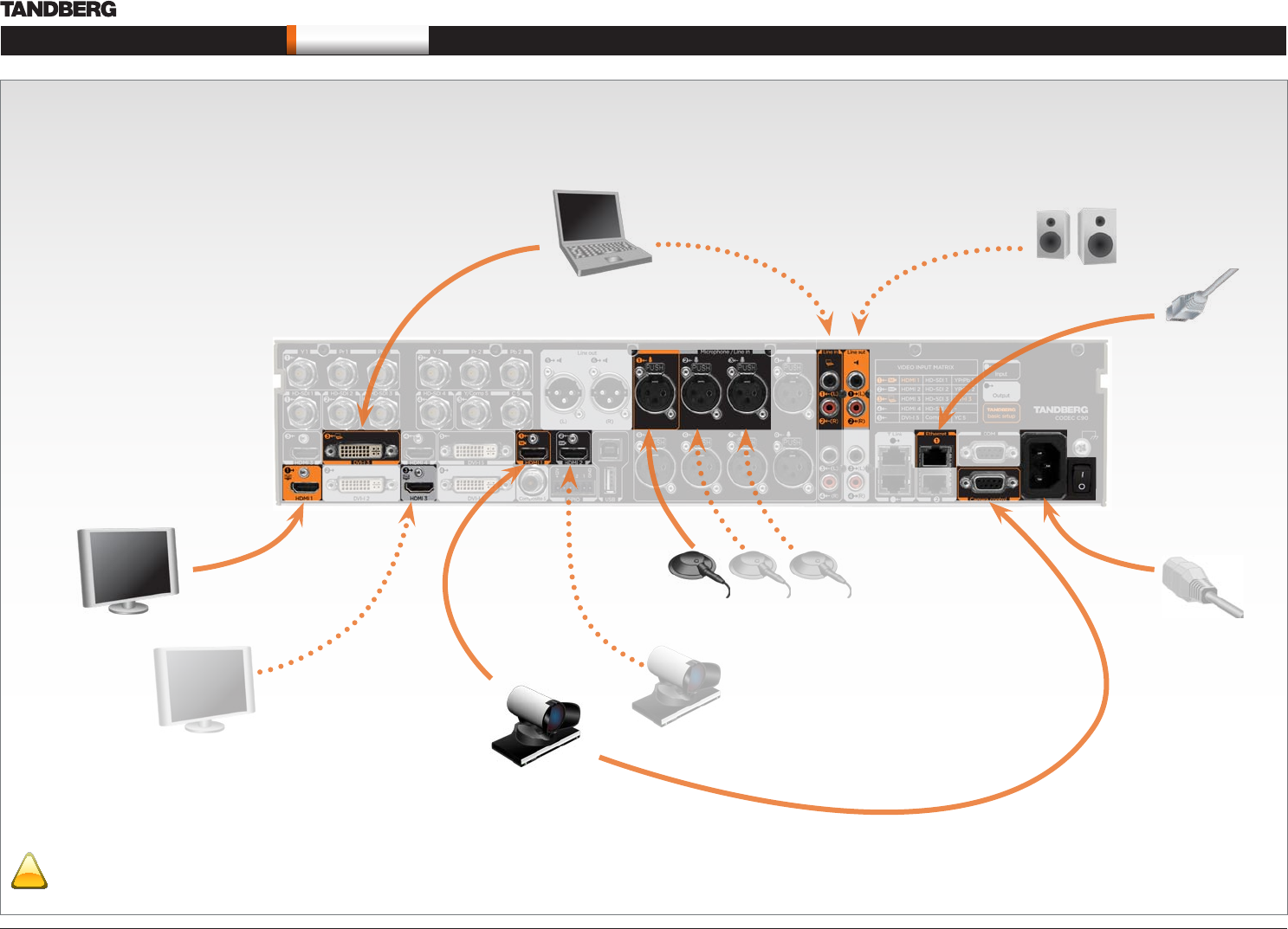

The illustration shows you the basic setup when connecting your monitor, PC,
camera, microphone, loudspeakers (if applicable), LAN and line voltage to your
codec.
Make sure the codec has been switched off and
disconnected from the line voltage whenever
connecting or disconnecting other equipment.
OPTIONAL:
Dual monitor setup
Connect the second
monitor to HDMI 3
Main camera:
Video from
PrecisionHD 1080p
OPTIONAL:
You may connect additional
microphones
Video
from PC
OPTIONAL:
You may connect a second camera.
(extra camera not included). Extra camera will
require separate power supply and control
cabling. Consult the documentation supplied
with the extra camera for details.
Main camera:
Camera Control to
PrecisionHD 1080p
Microphone
OPTIONAL:
Audio from PC
