Guidelines for the high end meeting
room
For high end team collaboration rooms, team meeting rooms and
showroom floor.

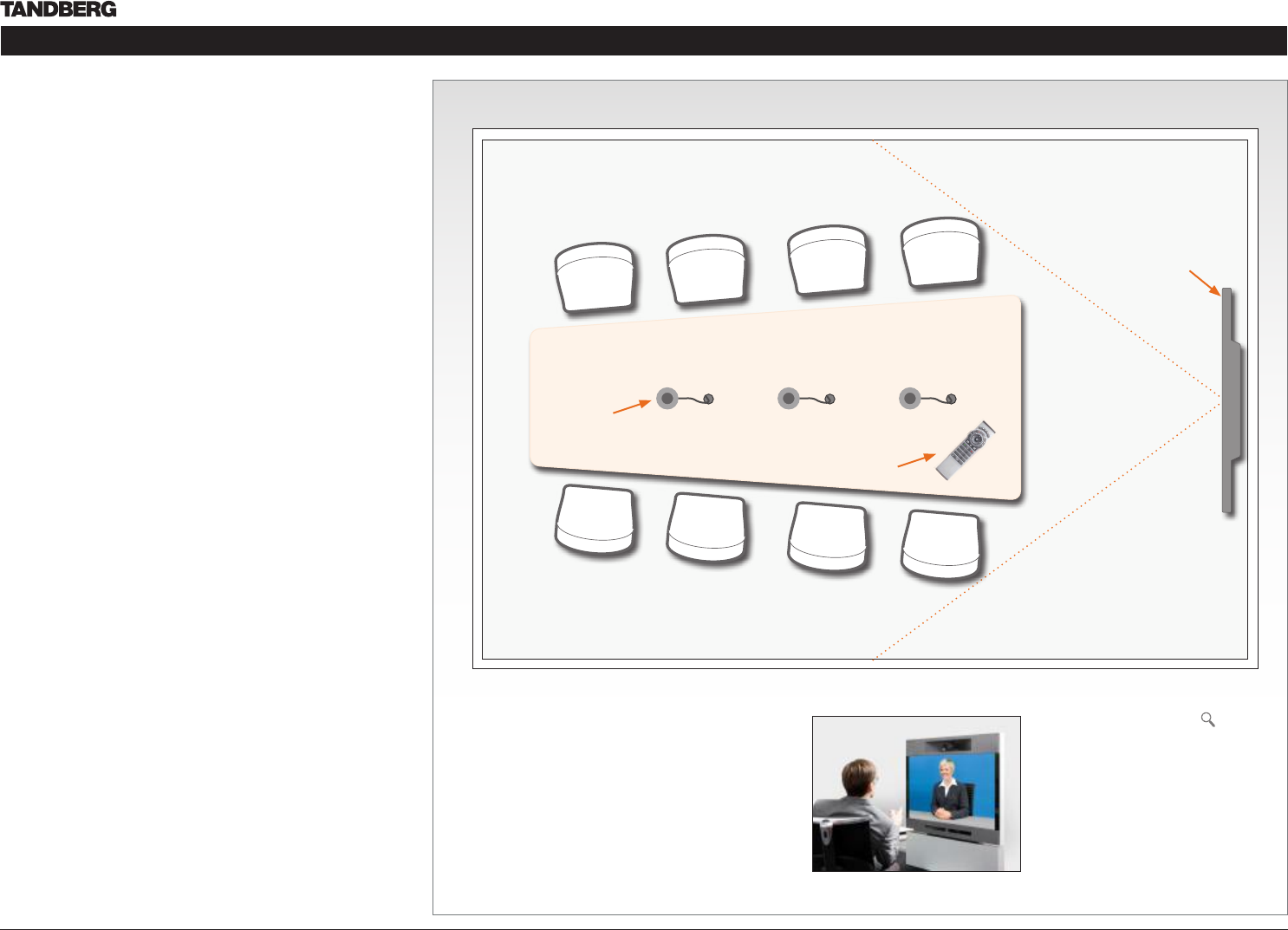

General recommendations for the room layout
To fully utilize the telepresence experience there are some guidelines
you should consider.
The distance between the table and the video system
If the monitor is a 65” full HD LCD display this requires 2–2,5 m / •
78–98 inch distance to the table to allow all participants to see a
clear picture on screen
Make sure all participants are covered within the camera angle, •
which at maximum zoom out is 72°
Adjust the camera view (using zoom in/out) to allow the •
participants to be shown in full size on screen, and to keep eye
contact with each other at the same eye level
The camera should capture all participants in the room•
If the participants are sitting too close to the monitor the camera •
will “look down” at the participants. This may not give a good
presentation of the participants at the far end.
The speaker module
There should be free sight between the system speaker module •
and the ear of the participants.
The microphones
The microphones should be evenly distributed on the table•
Avoid positions where they can be hidden behind obstacles like •
laptop or other equipment placed on the table
Do not place a microphone close to power outlets or similar •
arrangements on the table. The microphone may pick up noise
from these arrangements quite strongly.
Microphones
Remote
control
4
7
ghi
pqrs
6
#
abc/123
9
1
.@
5
0
8
jkl
tuv
2
abc
3
def
mno
wxyz
Camera view
- with max zoom
out
Adjust the camera view
Press the Zoom +/– button on the
remote control to adjust the picture
on screen.
Adjust the camera view to allow the
participants to have eye contact with
each other at the same eye level.
