Cameras
Video output formats
This section describes the video output formats for the TANDBERG
PrecisionHD 1080p camera.
DIP switch settings for video output formats
The video output format for the camera is set by DIP switches. The
DIP switches are found on the bottom side of the camera.
The default setting is Auto. When using HDMI, the video output format
is automatically detected. See the table to the right.
Maximum resolution for HDMI is 1080p60.
Maximum resolution for HD-SDI is 1080p30.
Line voltage frequency
The camera will automatically detect the line voltage frequency when it
is 50 or 60 Hz. You may set the video output format to a specific value
(use the DIP switches) to override the auto frequency detection, if a
different line voltage frequency is an issue.
DIP Switch table for video formats
1 2 3 4 5 HDMI HD-SDI
0 0 0 0 0 Auto
0 0 0 0 1 1920x1080p25 1920x1080p25
0 0 0 1 0 1920x1080p30 1920x1080p30
0 0 0 1 1 1920x1080p50 1280x720p50
0 0 1 0 0 1920x1080p60 1280x720p60
0 0 1 0 1 1280x720p25 1280x720p25
0 0 1 1 0 1280x720p30 1280x720p30
0 0 1 1 1 1280x720p50 1280x720p50
0 1 0 0 0 1280x720p60 1280x720p60
0 1 0 0 1 Software control
The DIP switch
1
0
The table shows the different settings available for the HDMI and
the HD-SDI outputs.
Auto: Camera negotiates format over HDMI. HD-SDI tracks HDMI
and defaults to 1080p30 in absence of HDMI sync.
Software: For more on the Software control setting, read about
video mode selections in the TANDBERG PrecisionHD 1080p User
Guide.

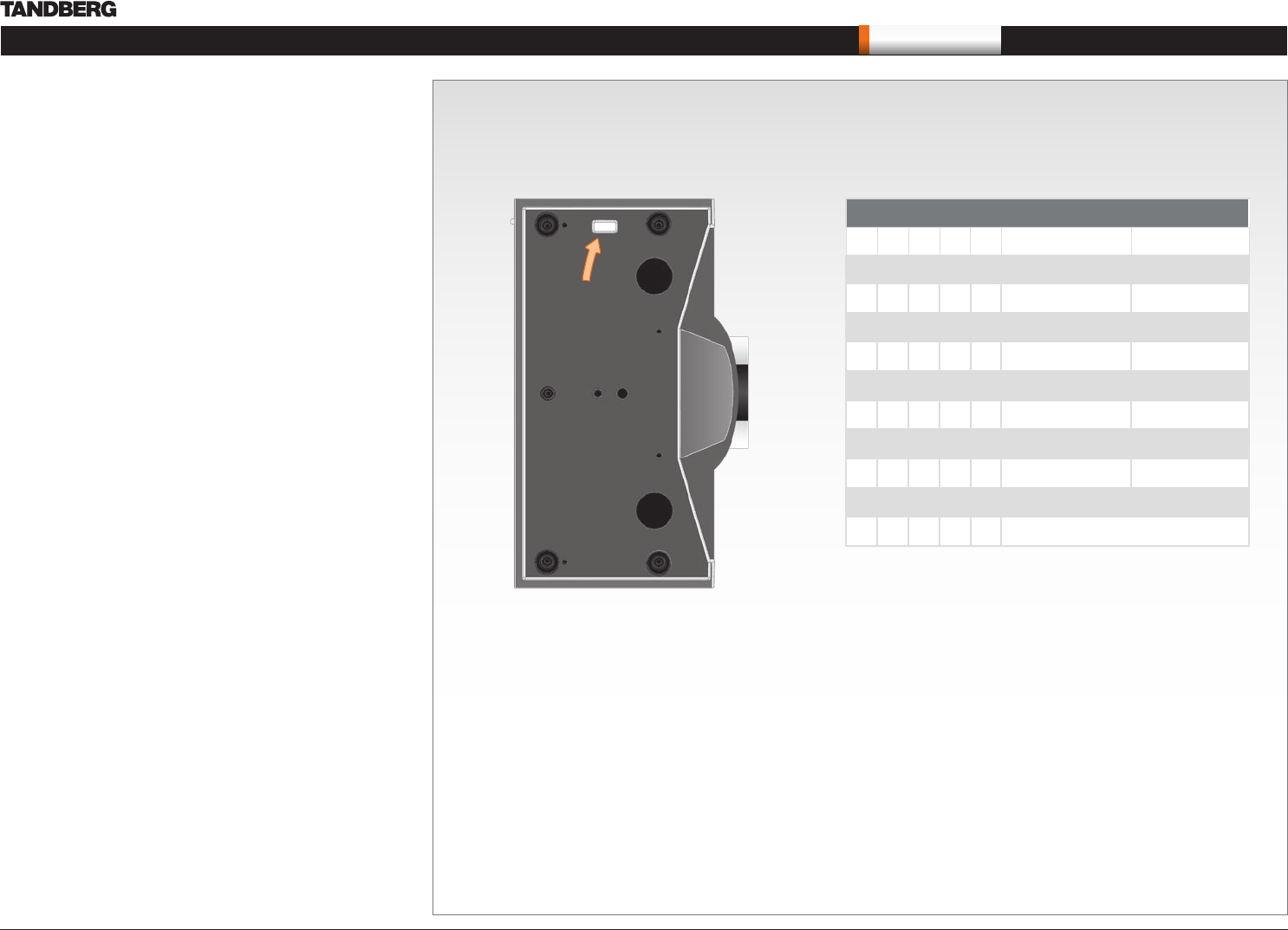

Bottom side of the TANDBERG
PrecisionHD 1080p camera
