Cameras
Power supply connection
is NOT needed when the
camera is used with a
TANDBERG Codec.
Connecting HDMI HD Video out on camera to HDMI 1 In on the Codec.
If you need to connect the camera to a TANDBERG Video Switch or to a system with a DVI-D socket, use
the enclosed HDMI to DVI-D adapter.
HD-SDI socket
HDMI and HD-SDI
can be used simultaneously.
VISCA™ is a trademark of Sony Corporation

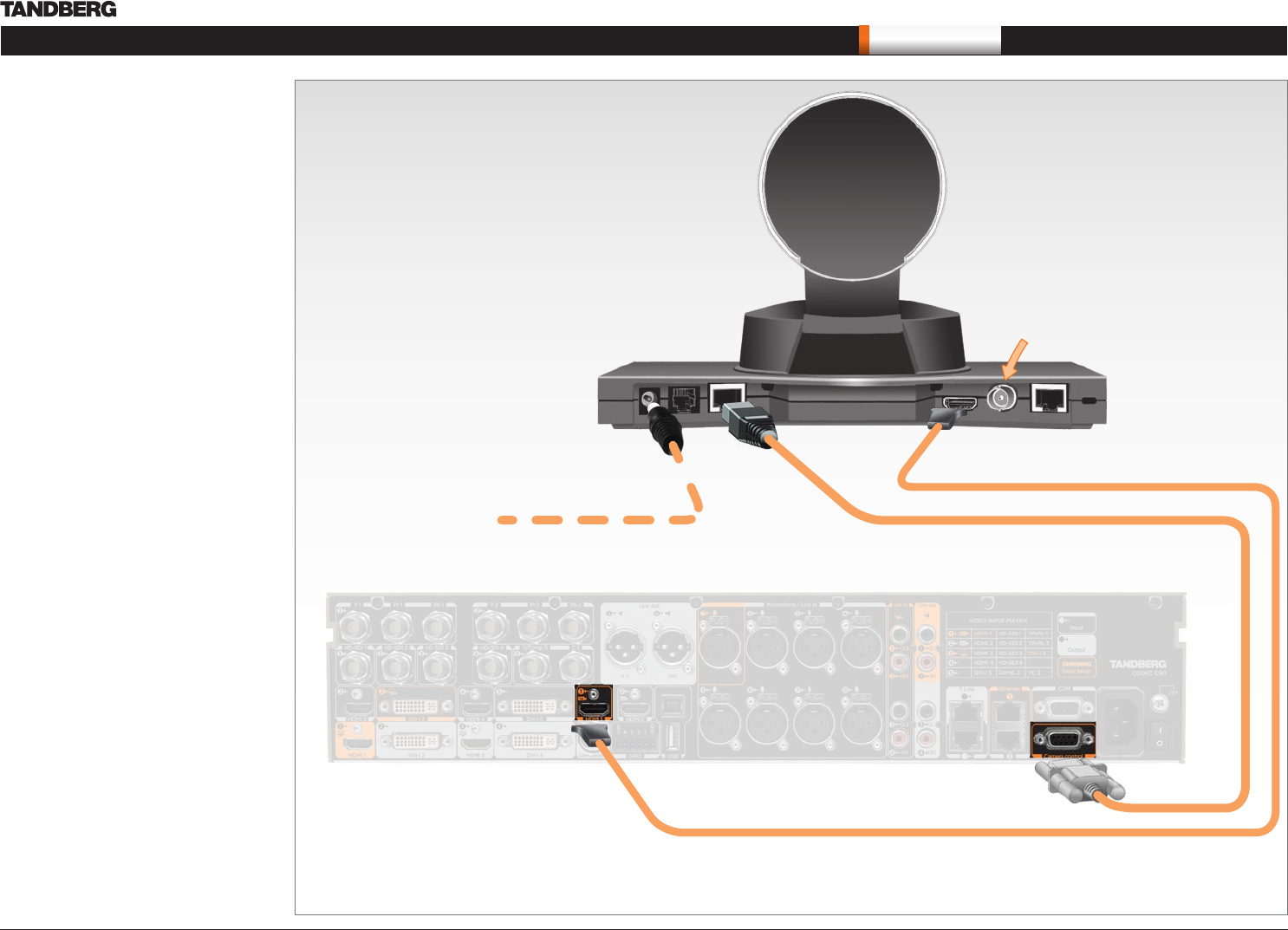

Connecting the camera
The HDMI and HD-SDI can be used
simultaneously.
HDMI cable
The HDMI cable delivered with the camera is
5 meters.
Maximum length is 15 meter with a category 2
certified good quality HDMI cable.
HD-SDI cable
The HD-SDI cable must be purchased
separately. The maximum recommendable
length of HD SDI cable is 100 m.
HDMI to DVI-D adapter
The HDMI to DVI-D adapter is used when
connecting to a TANDBERG MXP codec or
TANDBERG Video Switch
Connect the camera control cable, RJ45 to RS-232.
Visca™ protocol is supported.
