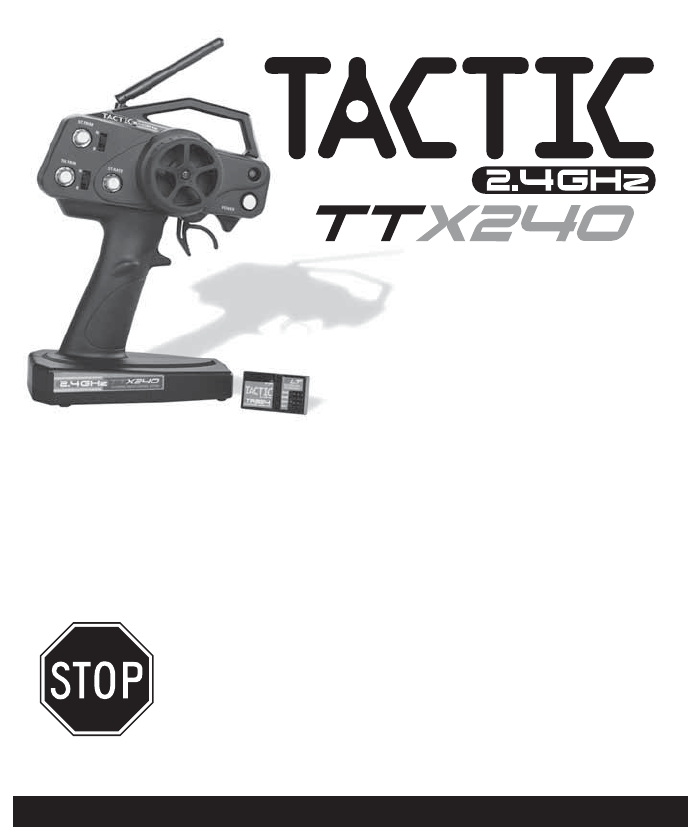

Thank you for making the Tactic TTX240 2.4GHz system

your choice for radio control! This system uses modern

2.4GHz Spread Spectrum technology – an innovation that

allows for automatic channel selection and interference-

free control of R/C models.

It is strongly recommended to completely

read this manual before use! Damage

resulting from misuse or modiﬁ cation

will void your warranty.

FEATURES

● 2.4GHz Spread Spectrum Technology

● Transmitter can bind to multiple receivers

● Tiny, lightweight receiver with internal antenna

● Built-in fail-safe

● Steering and throttle trim dials

● Steering and throttle servo reversing

● Steering rate adjustment

● Power LED with low battery warning indication

INSTRUCTION MANUAL

2.4GHz Radio Control System

™

TACJ0245 v2.2

Summary of content (8 pages)

PAGE 1
TACJ0245 v2.2 ™ 2.4GHz Radio Control System INSTRUCTION MANUAL Thank you for making the Tactic TTX240 2.4GHz system your choice for radio control! This system uses modern 2.4GHz Spread Spectrum technology – an innovation that allows for automatic channel selection and interferencefree control of R/C models. It is strongly recommended to completely read this manual before use! Damage resulting from misuse or modification will void your warranty. FEATURES ● 2.
PAGE 2
TRANSMITTER 4 “AA” + Cells -+ - + -+ - Figure 1 The transmitter (Tx) requires 4 “AA” batteries. Non-rechargeable alkaline or rechargeable nickel-cadmium (NiCd) or nickel-metal hydride (NiMH) cells can be used. Do not mix old and new cells, or mix non-rechargeable alkaline cells with rechargeable NiCd or NiMH cells, etc. See the SERVOS AND ACCESSORIES section at the end of this manual for optional rechargeable NiCd and NiMH batteries and chargers.
PAGE 3
BIND THE RECEIVER TO THE TRANSMITTER For proper installation and operation of the 2.4GHz transmitter and receiver system, it is necessary to “bind” them together electronically. This ensures sole communication between the two and prevents other transmitters from being able to control the receiver. To bind the Tx and Rx: 1. Turn on the transmitter. 2. Apply power to the receiver (see the INSTALLATION section that follows for how to do this). 3.
PAGE 4
Switch / Battery: It may not be necessary to use the included switch harness and 4-cell battery holder if using an optional electronic speed control (ESC). Check the instructions with your ESC for further information. Otherwise, mount the included switch harness into the model as instructed in the model’s manual, and insert the switch harness’s proper mating plug into the receiver’s “BAT” slot (bottom).
PAGE 5
SERVOS AND ACCESSORIES Stock # TACL0324 TACM2000 TACM2001 TACM2020 TACM2040 DTXM1055 DTXM1059 DTXM1300 DTXM1350 HCAM0120 HCAM0149 HCAM0165 HCAM0191 HCAM0300 HCAM0304 HCAM0308 HCAM0312 HCAM0316 DTXP4190 DTXP4200 DTXP4210 DTXP4615 SANP1100 Description Tactic TR324 2.
PAGE 6
TROUBLESHOOTING RANGE IS SHORT: Interference – check Rx installation and servo connections. Low Tx or Rx battery – replace the batteries. Crash damage – send the radio to Hobby Services for repair. RUN TIME IS SHORT: Low Tx or Rx batteries – replace the batteries. Obstructed servo linkages causing excess battery drain – free the linkages / pushrods. Tx LED ON BUT SERVOS DO NOT FUNCTION: Rx batteries are low – replace the batteries. Rx switch is in the off position – turn on the ESC or switch harness.
PAGE 7
CE COMPLIANCE INFORMATION FOR THE EUROPEAN UNION INSTRUCTIONS FOR DISPOSAL OF WASTE EQUIPMENT BY PRIVATE USERS IN THE EUROPEAN UNION: This symbol on the product or its packaging indicates this product must not be disposed of with other household waste. Instead, it is the user’s responsibility to dispose of their waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.
PAGE 8
WARRANTY AND REPAIR (*U.S.A. and CANADA ONLY) 1-YEAR LIMITED WARRANTY Tactic warrants this product to be free from defects in materials and workmanship for a period of one (1) year from the date of purchase. During that period, Tactic will, at its option, repair or replace without service charge any product deemed defective due to those causes. You will be required to provide proof of purchase (invoice or receipt). This warranty does not cover damage caused by abuse, misuse, alteration or accident.
