User manual

2
Please inspect the device for damage occurred during transportation. In case of damage, the retailer has to be
informed immediately, at the latest within 8 days after the date of purchase.

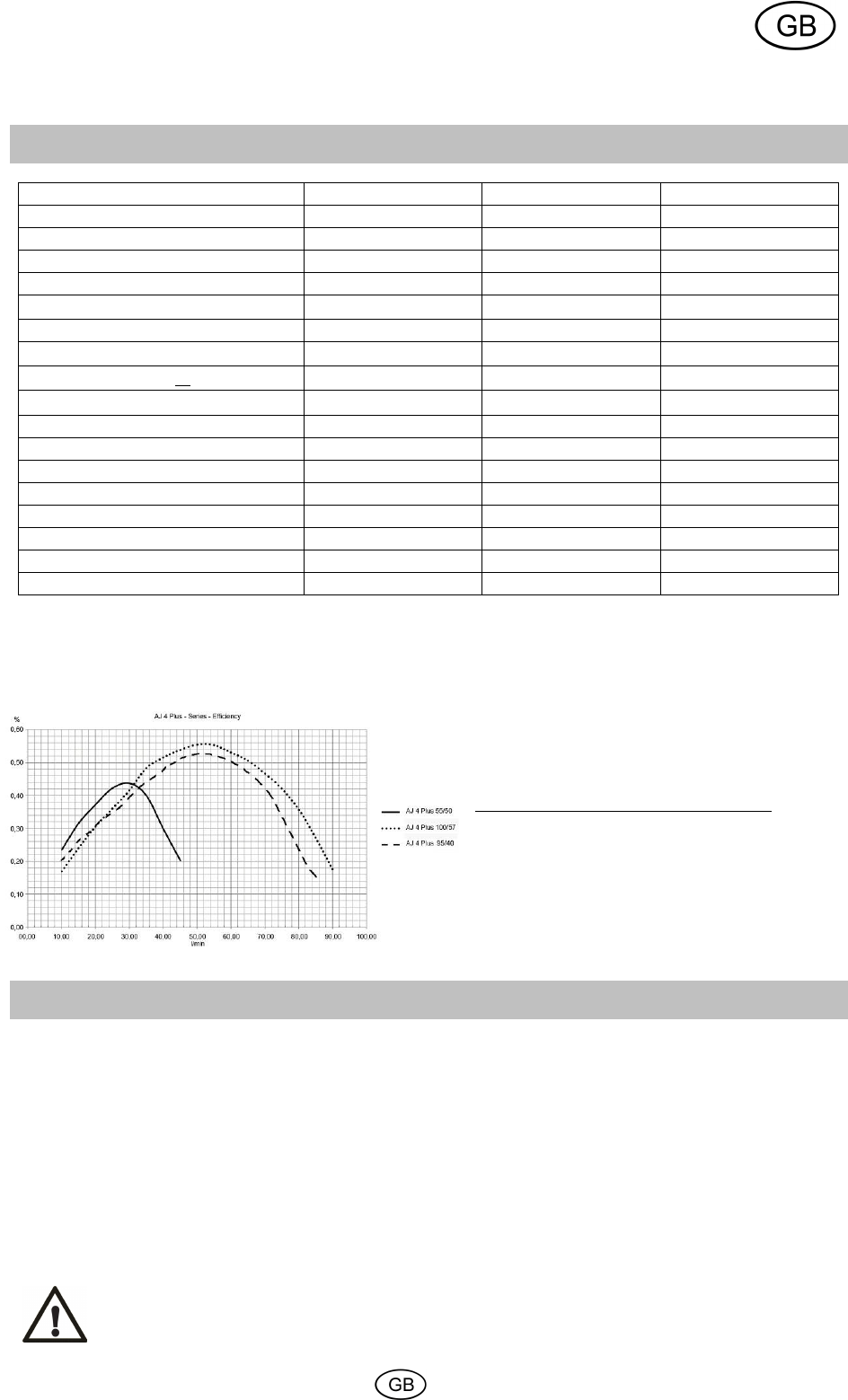

2. Technical Data
Model
AJ 4 Plus 55/50
AJ 4 Plus 95/40
AJ 4 Plus 100/57
Mains voltage / frequency 230 V ~ 50 Hz 220-240 V~ 50 Hz 220-240 V~ 50 Hz
Nominal performance
800 Watt
900 Watt
1,100 Watt
Protection type IP68 IPX8 IPX8
Pressure port
39.59 mm
(1 ¼“), female
39.59 mm
(1 ¼“), female
39.59 mm
(1 ¼“), female
Max. flow rate (Q
max
)
1)
3,300 l/h 5,500 l/h 6,000 l/h
Max. pressure
5.0 bar
4.0 bar
5.7 bar
Max. delivery height (H
max
)
1)
50 m
40 m
57 m
Max. submersion depth 
20 m
20 m
20 m
MEI
2)
≥ 0,40 ≥ 0,40 ≥ 0,40
Max. size of the solids being pumped 2 mm 2 mm 2 mm
Max. fluid temperature (T
max
)
35 °C
35 °C
35 °C
Max. cut-in frequency in one hour 30, evenly distributed 30, evenly distributed 30, evenly distributed
Length of connection cable
23 m
23 m
23 m
Cable type H07RN8-F H07RN8-F H07RN8-F
Weight (net)
~ 9.2 kg
~ 10.7 kg
~ 11 kg
Dimensions (L x D x H) 9.6 x 9.6 x 55 cm 9,8 x 9,8 x 60 cm 9,8 x 9,8 x 66,5 cm
Item no.
30104
30177
30086
1)
The values were determined with free, unreduced outlet.
2.1. Information according to directive 2009/125/EG
I
2)
Minimum Efficiency Index“ (MEI) is a dimensionless variable for hydraulic pump efficiency at their best operating
point as well as with partial loading and
overloading. The MEI reference value for water
pumps with the best operating efficiency is ≥ 0.70.
Information on the efficiency reference value can
be found under
http://www.europump.org/efficiencycharts. The
corresponding reference curves for the AJ series
pumps can be found at.MEI = 0.40 for Multistage
Submersible 2900 rpm.
The operation of this water pump can be more
efficient and economic at different operating
points, if for example it is controlled by means of a
variable speed controller, which adapts the pump
operation to the system.
3. Range of use
Deep-well pumps from T.I.P. are specially designed and most efficient submersible pressure pumps for
discharging water from great depths. Owing to their compact design and professional technology, these pumps
can be used even in narrow bore-hole wells and shafts. These high-quality products with their convincing
performance data were developed for various applications involved with irrigation and for feeding on the liquid
being discharged under high pressure.
The units are suitable for discharging clean, clear water containing solids up to the maximum size specified in the
technical data.
The typical areas of use of a deep-well pumps include: Irrigation of gardens and garden beds, domestic water
supply with grey water from wells, cisterns and reservoir tanks, the operation of irrigation systems, cleaning of
terraces and sidewalks, discharge of water from great depths water extraction from great depths.
Deep-well pumps from T.I.P. are suitable for permanent or temporary installations.
This product is intended for private use in the home area and not for commercial or industrial purposes or for
continuous circulating.
The device is not suitable for use in swimming pools or for the supply of drinking water.
